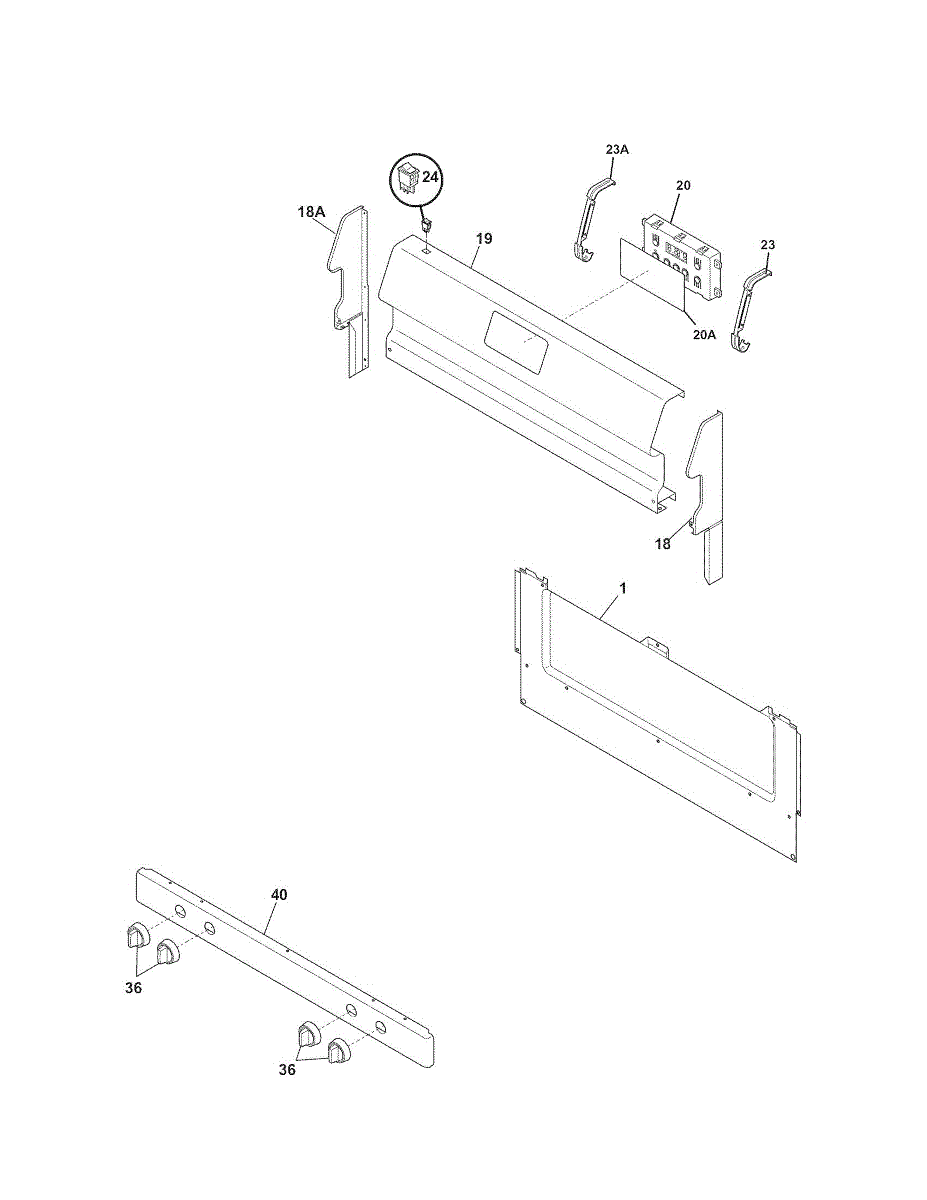

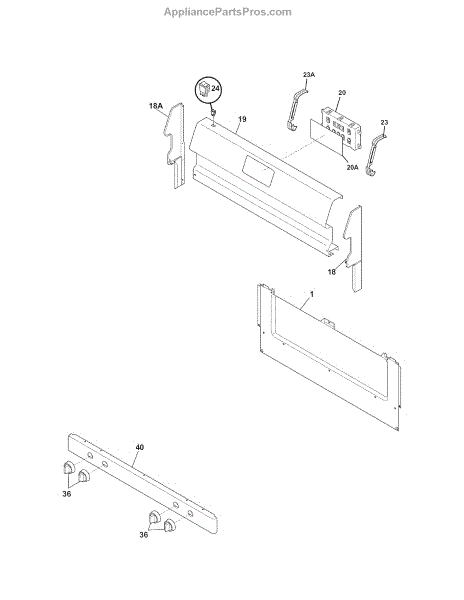

Parts for Kenmore 790.71153702 (79071153702, 790 71153702): Backguard Parts

Color: Black

Color: Black

The Clock/Timer is an OEM replacement part for Frigidaire ranges. It allows for precise time and temperature settings to be entered and displayed for oven functions.

As a digital module, causes for failure may include corrupted firmware over time or water/debris intrusion damaging circuits. Backlight failure is common after extended hours of usage.

Symptoms consist of:

• Inaccurate time displaying/keeping
• Timer functions like pre-heating not engaging
• Corrupted or non-responsive touch controls
• Faint or no display illumination

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Protective cover for your range control panel with button markings. Replace if cracked, faded, or mounting tabs are broken. Installs over the clock assembly.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a printed repair parts list that shows the appliance's parts diagram and reference numbers to help identify replacement components. Handy for ordering the correct parts and planning a repair. What it does

• Provides exploded parts diagrams and part number references for the appliance
• Helps you identify which component corresponds to a symptom or failure
• Makes ordering replacements faster and reduces wrong-part returns
• Useful for service techs and DIYers

• One printed repair parts list/document as shown

• This is a reference document only; it does not include installation hardware or repair labor
• Cross-check part numbers on the list with the actual component before ordering
• Keep the document with the appliance service records for future repairs
• Observe all safety precautions when using the list to plan any repair

Factory diagnostic guide for gas ranges showing wiring diagrams, error codes, and troubleshooting steps. Replace if missing, damaged, or illegible.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
