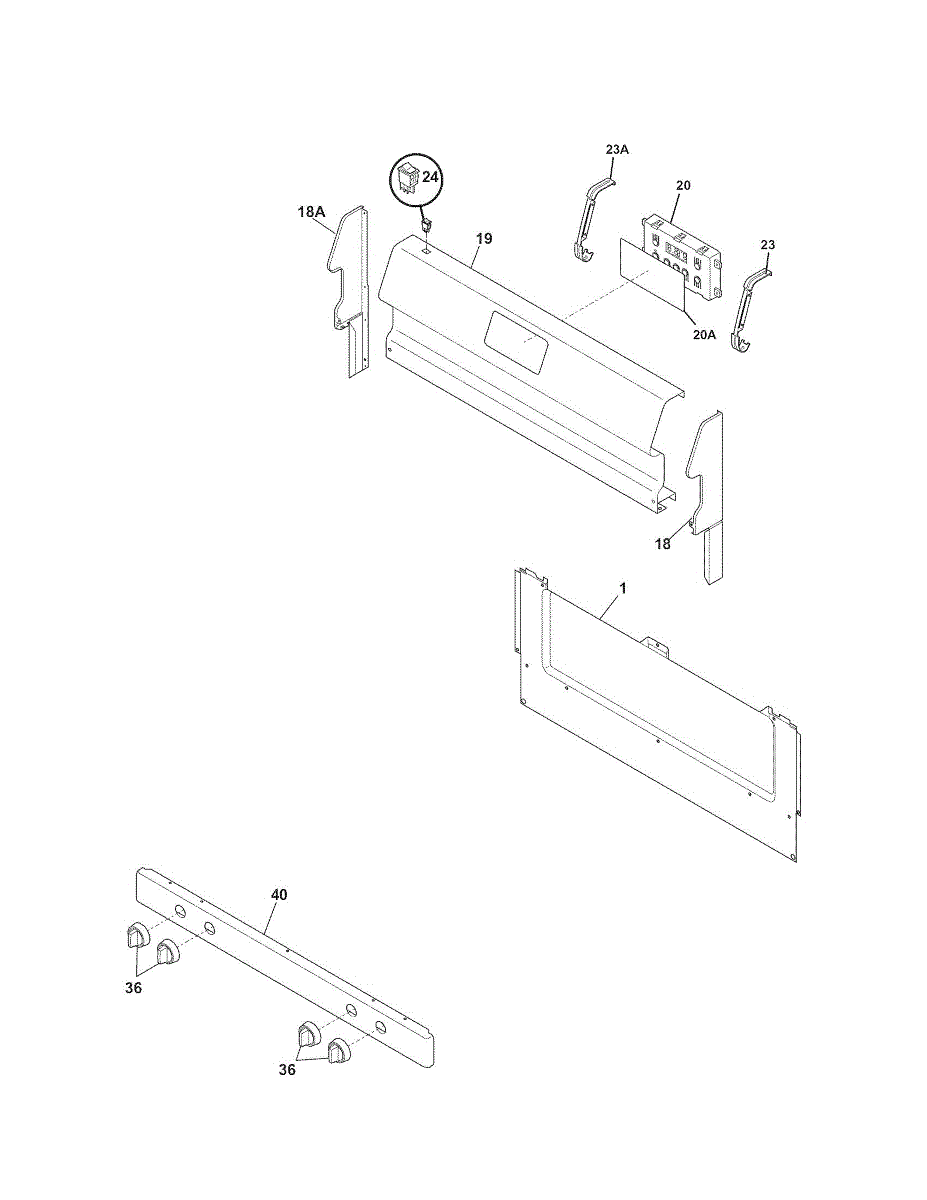

Parts for Kenmore 790.71163701 (79071163701, 790 71163701): Backguard Parts

Color: Black

Color: Black

This is the electronic oven control board that manages cooking functions including temperature regulation, bake and broil cycles, and clock/timer operations. It mounts behind the control panel at the back of the range. Replace this board if the oven fails to heat, displays error codes, has an unresponsive control panel, or runs at incorrect temperatures.

Protective cover for your range control panel with button markings. Replace if cracked, faded, or mounting tabs are broken. Installs over the clock assembly.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This printed repair parts list provides exploded-view diagrams and part numbers for quick identification during troubleshooting or ordering. It helps technicians and DIYers which parts are needed before starting a repair. What it does:

• Shows exploded diagrams and official part numbers for component identification
• Helps you the correct replacement parts to order
• Useful when a parts label or service literature is missing or unreadable
• Speeds up diagnostics by clarifying component locations and relationships

• This sheet is a reference document, not a step-by-step installation guide
• Keep the sheet with the appliance or service records for future use
• Replace the list if it becomes damaged or illegible
• Follow OEM service documentation and safety guidelines when performing repairs

Factory diagnostic guide for gas ranges showing wiring diagrams, error codes, and troubleshooting steps. Replace if missing, damaged, or illegible.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
