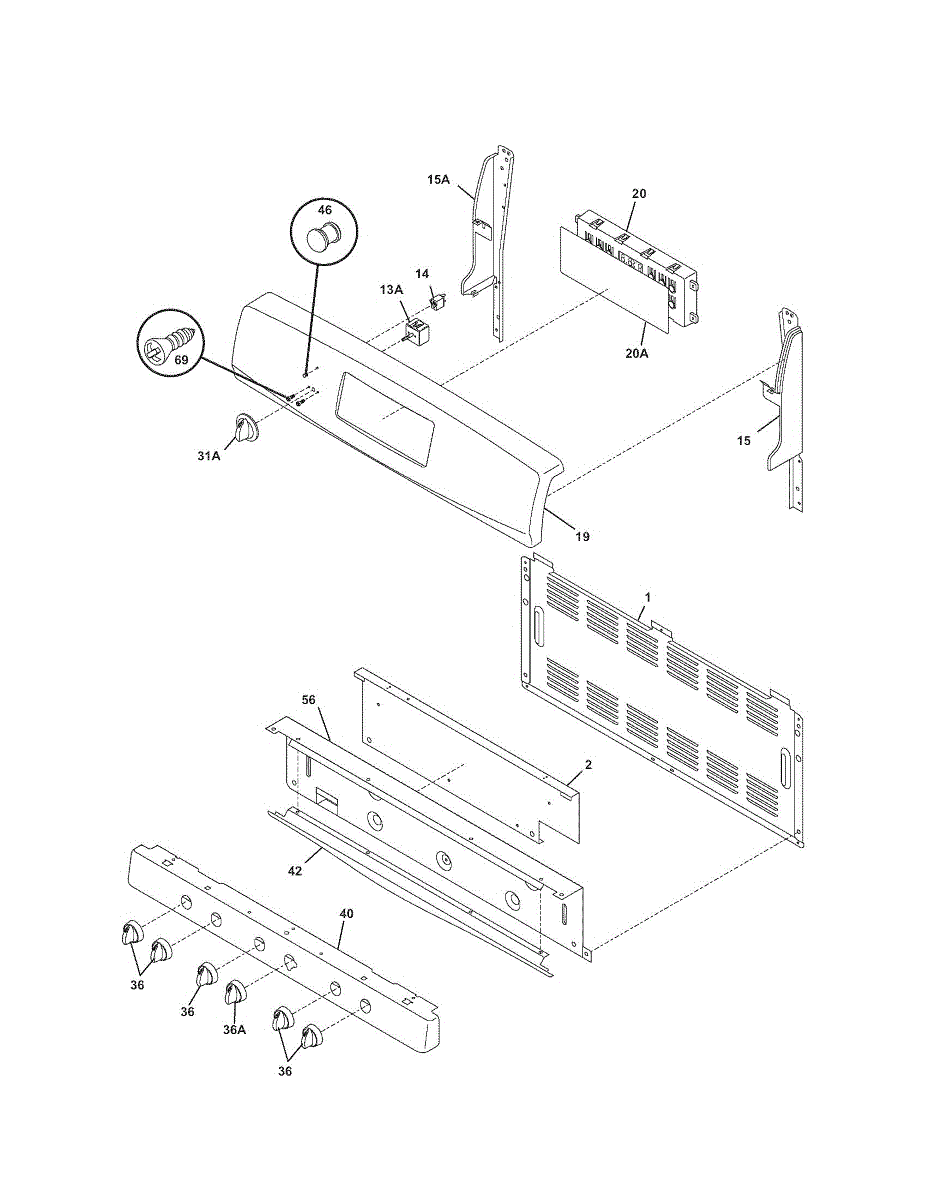

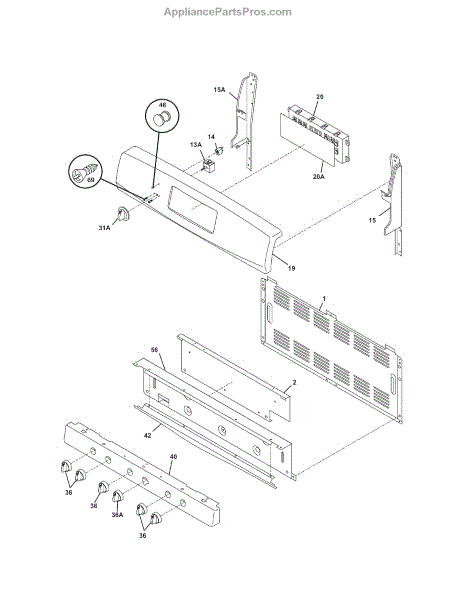

Parts for Kenmore 790.71403700 (79071403700, 790 71403700): Backguard Parts

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

This is the printed overlay that covers the oven's electronic control panel, displaying button labels, temperature settings, and function icons. It adheres to the front of the control board assembly and provides the touch-sensitive interface for operating the oven. Replace this overlay if the printing has worn off, the surface is peeling or bubbling, or the touch controls are no longer responding accurately to presses.

Fix F11 error codes and restore oven temperature control with this electronic control board. Repairs failed timekeeping and bake/broil functions.

Color: black. Measures about 2 inches in diameter.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a factory repair parts list — a printed parts diagram and parts list that helps identify component names and part numbers for service and ordering. Handy reference for technicians and DIYers during diagnosis and repairs. What it does:

• Shows exploded diagrams and the official part names and numbers for a specific appliance assembly
• Helps quickly locate the correct replacement parts when ordering service parts
• Reduces guesswork during repair by clarifying component placement and orientation
• Useful for verifying part quantities and service reference while troubleshooting

• One printed repair parts list sheet (diagram and parts list)

• No mechanical installation required; keep the sheet with service documentation
• Store in a dry place to prevent smudging or damage
• Use the diagram as a reference only; order parts using the part numbers shown
• For electrical or mechanical repairs, follow all safety guidelines

Replacement care guide and instruction manual for your range. Needed when original documentation is lost, damaged, or missing. Provides setup and usage info.
