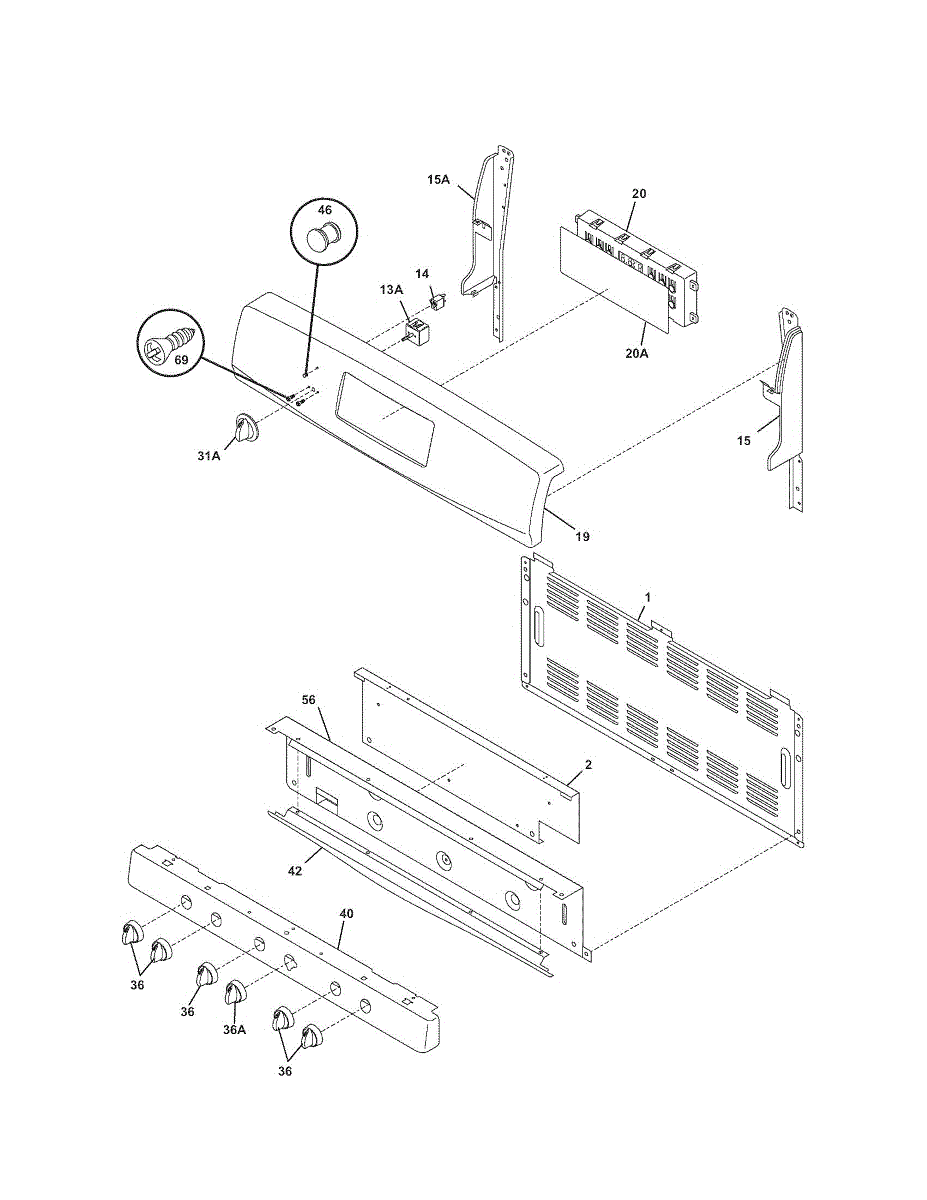

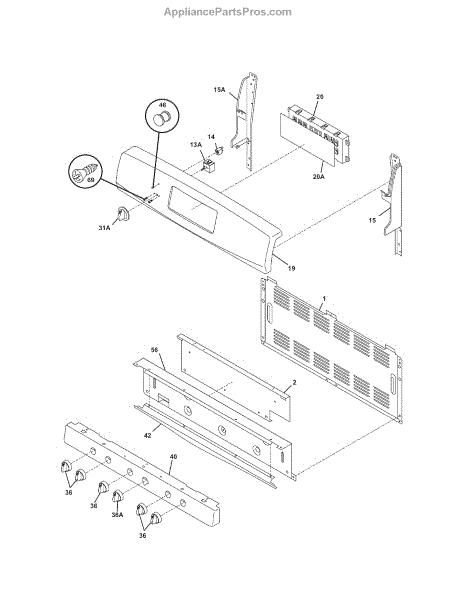

Parts for Kenmore 790.71409700 (79071409700, 790 71409700): Backguard Parts

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

Replacement endcap for electric and gas ranges. Installs on the control panel or side trim. Order if your original is cracked, broken, or missing.

Replace your worn, faded, or damaged range control panel overlay. This printed decal restores button labels and console finish for a clean, readable look.

Replace your worn, faded, or damaged range control panel overlay. This printed decal restores button labels and console finish for a clean, readable look.

Decorative overlay that covers the range control panel area with legible button labels. Replace when faded, scratched, peeling, or missing for a clean look.

Fix F11 error codes and restore oven temperature control with this electronic control board. Repairs failed timekeeping and bake/broil functions.

Replace your range's control knob if it's cracked, broken, or missing. This knob attaches to the control panel and allows you to adjust burner settings.

Kit contains 5 knobs. (4 of part# 316442513 and 1 of part# 316442501.)

Color: white. Measures about 2 inches in diameter.

Color: black. Measures about 2 inches in diameter.

Replacement door trim for gas ranges. Installs along the oven door edge to provide a finished look. Order if your original trim is cracked or missing.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This reproduction repair parts list provides the official exploded diagrams and part numbers to help identify replacement components for your appliance. Handy for ordering correct parts and planning repairs without guesswork. What it does:

• Shows exploded views and OEM part numbers to identify the exact parts you need
• Helps troubleshoot by matching visible parts to the listed components
• Useful when labels, diagrams, or original paperwork are missing or damaged
• Simplifies communication with parts suppliers

• No tools required — this is reference documentation, not a hardware component
• Keep with the appliance or service records for future repairs and part orders
• Handle pages carefully to avoid tearing; store in a dry location

Replacement care guide and instruction manual for your range. Needed when original documentation is lost, damaged, or missing. Provides setup and usage info.
