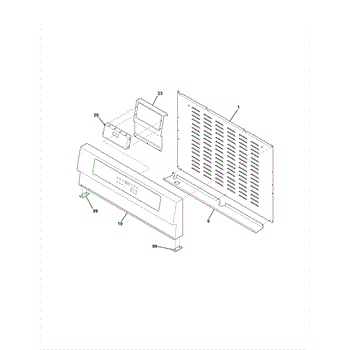

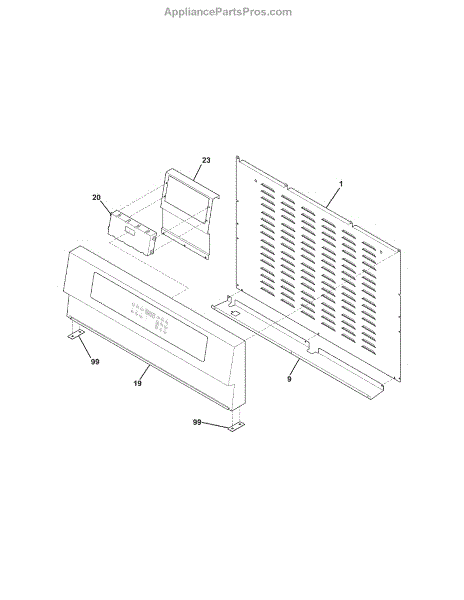

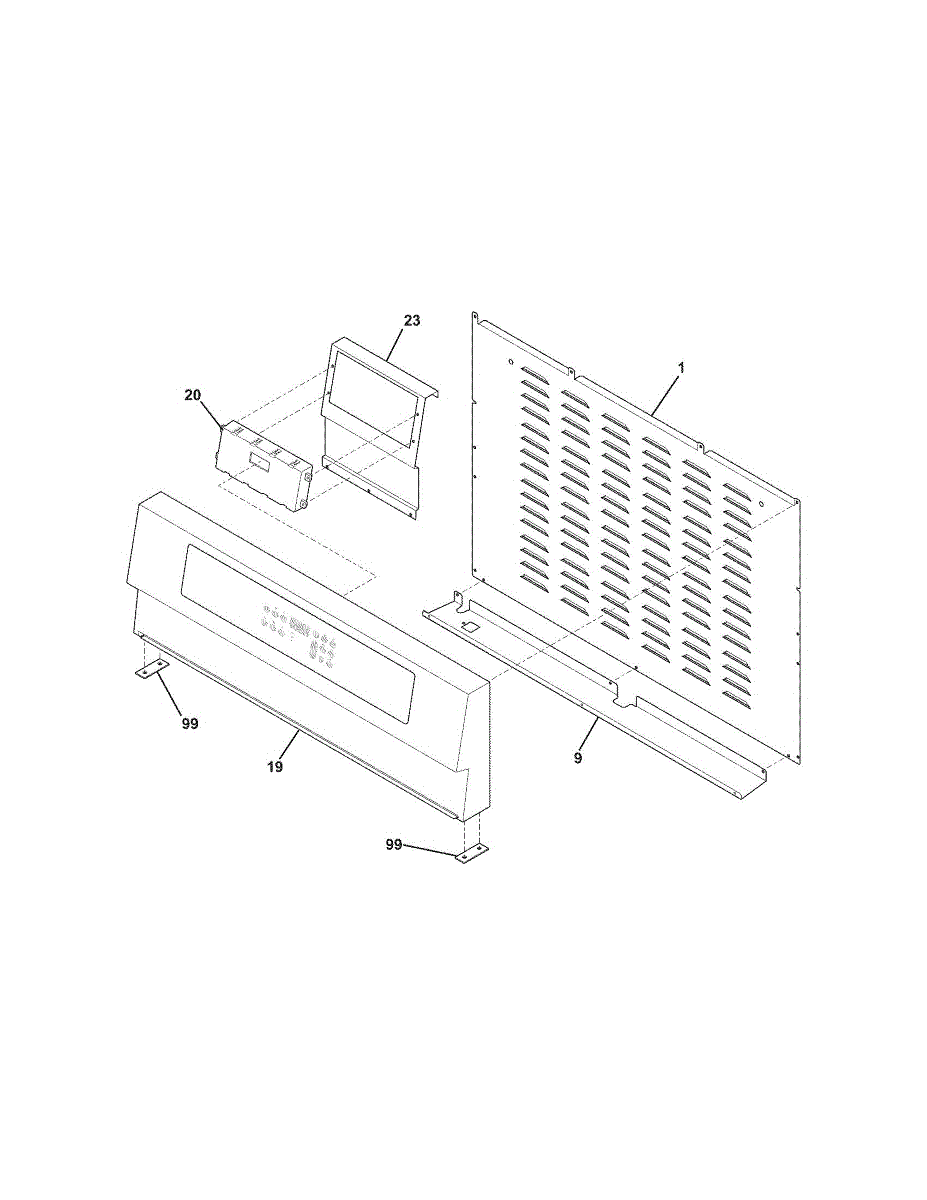

Parts for Kenmore 790.75403502 (79075403502, 790 75403502): Backguard Parts

This electronic clock timer assembly replaces a failed oven clock and timer so you can set, monitor and control timed cooking functions. It restores the display and timer features that help keep your oven on schedule. What it does:

• Displays the oven clock and kitchen timer so you can track cooking time
• Enables timed bake and delay-start functions on compatible ranges/ovens
• Provides user input for setting cook times and timer alerts
• Restores control-panel timekeeping and timer countdown functionality

• One electronic clock timer assembly

• Disconnect power to the appliance before beginning any work
• Remove the control panel or trim as required; handle the new assembly and ribbon/connector with care
• Reconnect the wiring harness securely and verify the clock and timer functions after power is restored

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
