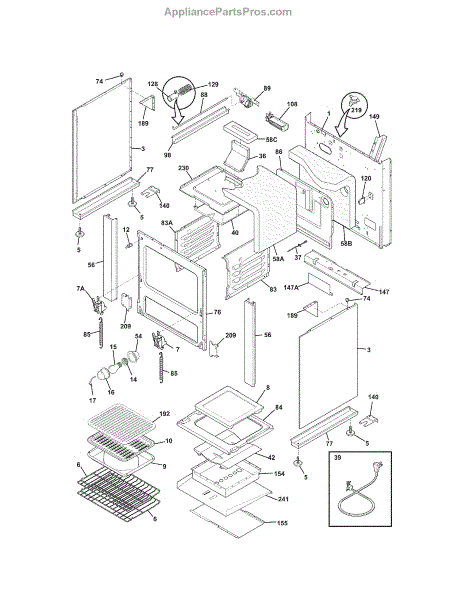

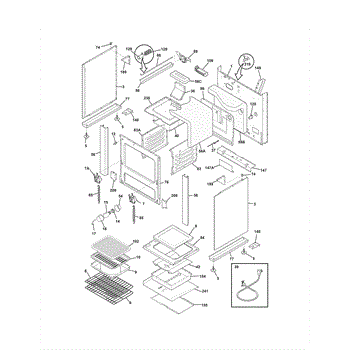

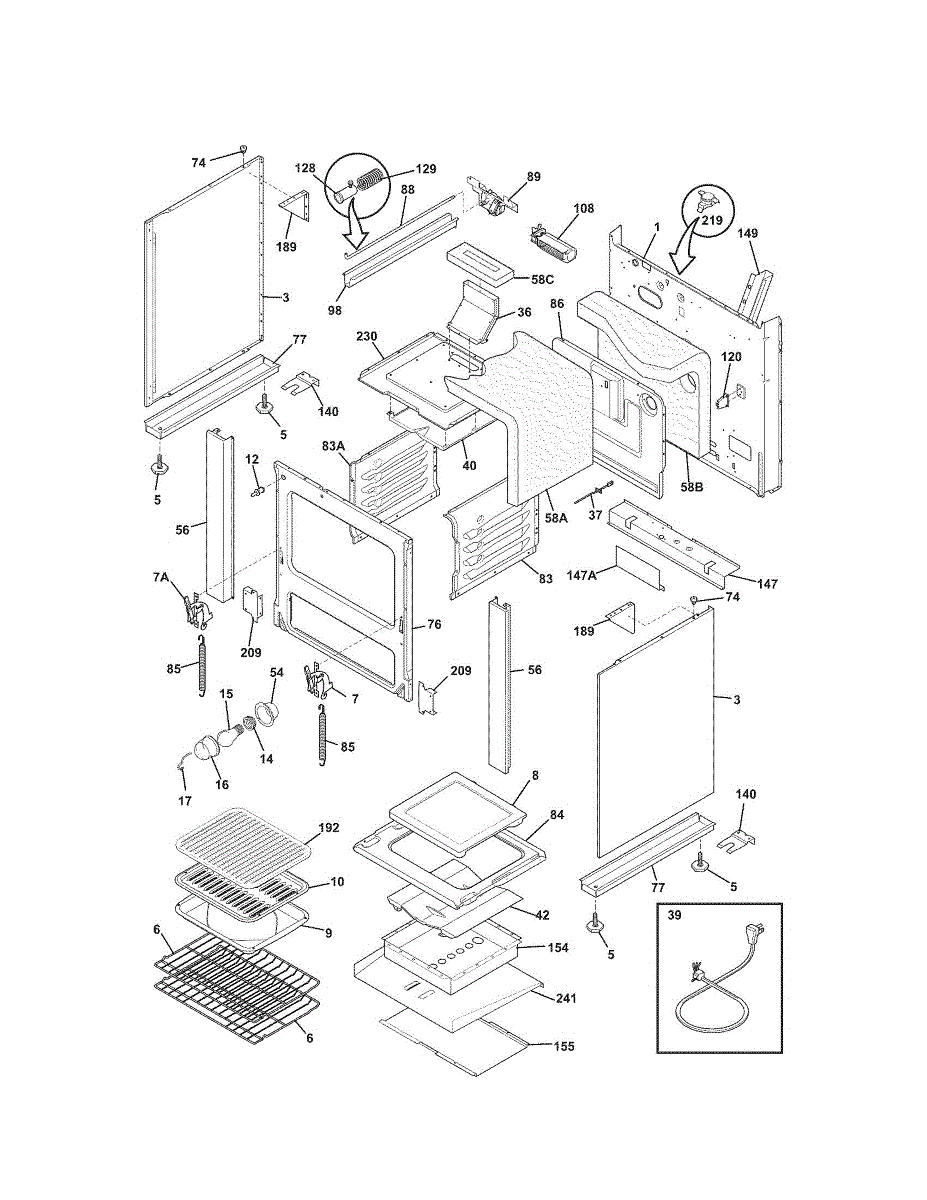

Parts for Kenmore 790.75403502 (79075403502, 790 75403502): Body Parts

This machine screw adjusts and secures the leveling leg or bracket, helping you set the appliance stable and plumb. Replacing a stripped, bent, or missing screw restores a solid footing and makes accurate leveling possible.

• Threads into the base or leveling bracket to raise or lower the appliance for proper leveling
• Helps reduce rocking, wobbling, and vibration from an unlevel installation
• Common signs of wear: stripped threads, bent hardware, corrosion, or a missing screw
• Useful during installation or when the existing adjustment screw no longer holds

• Disconnect power; shut off gas before working
• Support the appliance to relieve weight on the leveling point
• Remove the damaged screw; inspect and clean mating threads
• Start the new screw by hand to avoid cross-threading, then adjust height and snug

The Hinge Assembly is an OEM replacement part for Frigidaire ranges. Responsible for securely mounting the range door or oven door while facilitating easy opening and closing, the hinge assy plays an important role in the overall usability of the appliance. Right side. For left side use 318348801

Causes of a bad hinge assembly can include normal wear and tear over time from frequent use of the appliance, as well as potential damage from attempts to force a misaligned door closed.

Symptoms of a failing hinge assembly include:

• The door not sitting flush or locking into place fully
• Increased resistance or difficulty when opening/closing
• Noises or vibrations coming from the hinge area
• Visible damage or lack of smooth movement in the hinges
• Gaps appearing around the door seal

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: For the right side use 318348800

The Hinge Assembly is an OEM part for Frigidaire ranges. This part allows the oven door to open and close smoothly while providing a secure attachment to the range body.

Causes of a bad Hinge Assembly can include wear and tear over time, physical damage from impact or mishandling, or failure of the internal mechanisms due to exposure to high temperatures or debris buildup.

Symptoms of a bad Hinge Assembly include:

• Difficulty opening or closing the oven door
• The door feeling loose or wobbly when opening or closing
• The door failing to stay in the open position
• Excessive noise or grinding sounds when operating the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This door-activated plunger light switch controls the interior lamp by turning it on when the door opens and off when it closes, restoring proper interior illumination and preventing lights from staying on or failing to light. What it does:

• Detects door position and completes the circuit to power the interior light when the door opens.
• Replaces a worn, stuck, or broken door light switch that prevents the lamp from turning on.
• Common symptoms: interior light does not turn on, light stays on continuously, or light works intermittently.
• Simple, direct replacement for the door-mounted lamp switch assembly.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Access the switch from the door liner or hinge area; basic hand tools (screwdriver) are typically required.
• Handle the switch and wiring gently; confirm correct wiring orientation before reconnecting power.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This trim is a decorative finishing piece that restores the appliance's exterior appearance and covers the gap between panels for a clean, factory look. It replaces damaged or missing trim to improve aesthetics and protect internal edges. What it does:

• Covers and finishes panel edges to restore the appliance's original appearance
• Helps keep dust, grease, and debris from entering seams around the opening
• Provides a finished mounting surface for adjacent panels or components
• Useful when trim is dented, scratched, cracked, or missing

• One trim piece as pictured

• Disconnect power to the appliance before starting any repair
• Retain and reuse original fasteners unless replacements are specified
• Basic hand tools typically required; avoid over-tightening to prevent cracking
• If the trim attaches to glass or fragile parts, handle carefully and wear gloves

This oven bottom panel replaces the damaged or missing inner floor that covers the oven cavity and protects internal components. It restores the oven's clean appearance and helps contain spills for easier cleanup. What it does:

• Covers and protects the oven cavity floor from drips, crumbs, and direct contact with the heating element
• Helps maintain proper airflow and interior surface integrity during cooking
• Prevents debris from falling into lower compartments or onto components below the oven floor
• Commonly replaced when the panel is warped, rusted, dented, or has holes

• Turn power to the appliance off at the breaker before starting any repair
• Handle edges carefully—sheet metal may be sharp
• If mounting hardware is missing or damaged, replace with manufacturer-recommended fasteners

Restore balanced, controlled oven door movement with this oven door spring. Replacing a worn or broken spring helps the door open and close smoothly and reduces sagging or sudden drops for safer, more reliable use. What it does:

• Provides counterbalance for the oven door hinge so the door opens and closes smoothly.
• Reduces door sagging, dropping, or closing too quickly caused by stretched or broken springs.
• Replaces the worn spring that can cause uneven or loose door movement.
• Helps restore proper door alignment and consistent hinge tension.

• Disconnect power to the appliance before beginning any repair.
• Springs are under tension—wear eye protection and gloves and use proper tools when removing/installing.
• Compare the new spring to the removed part to ensure correct orientation and fit before final installation.
• If the opposite door spring shows wear, replace both to maintain balanced door operation.

This shield is a stamped protective guard designed to protect internal components from heat, debris, and mechanical contact. It helps keep parts aligned and prevents damage from normal use. What it does:

• Protects wiring, sensors, and nearby components from heat and impact
• Keeps debris and loose items away from sensitive parts to reduce wear
• Prevents rubbing or contact that can cause noise or premature failure
• Resolves symptoms like rattling, visible damage, or exposed components

• Disconnect power (and gas if applicable) before beginning any repair
• Handle edges carefully; metal shields can be sharp
• Basic hand tools are normally required; follow the appliance service manual for exact procedure

This is an oval-head square-drive screw used to secure interior and exterior appliance components. It provides a low-profile finish and corrosion-resistant black finish for a neat, durable hold. What it does:

• Fastens panels, brackets, trim pieces, and other sheet-metal or plastic parts
• Oval head gives a slightly countersunk, finished appearance when installed
• Square (Robertson) drive resists cam-out for easier tightening
• Common replacement when original screws are stripped, missing, or corroded

• Use the correct square-drive (Robertson) bit to avoid stripping the screw head
• Hand-start the screw to ensure proper alignment before using power tools
• Do not overtighten; stop once the part is snug to avoid thread or panel damage
• Disconnect power and follow appliance safety precautions before servicing

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This replacement screw fastens appliance components such as panels, brackets, and covers so everything stays tight, aligned, and safe during operation. Replace a missing or stripped screw to restore a solid fit and prevent vibration or further damage.

• Secures panels, brackets, and other hardware in the correct position
• Helps reduce vibration, rattling, and misalignment during use
• Common reasons to replace: missing hardware, stripped threads, rounded or corroded head
• Restores proper fastening during reassembly after service or cleaning

• Disconnect power; shut off water or gas before servicing
• Use the correct driver to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten, especially into plastic or thin metal
• Verify location and count using your model's parts diagram
