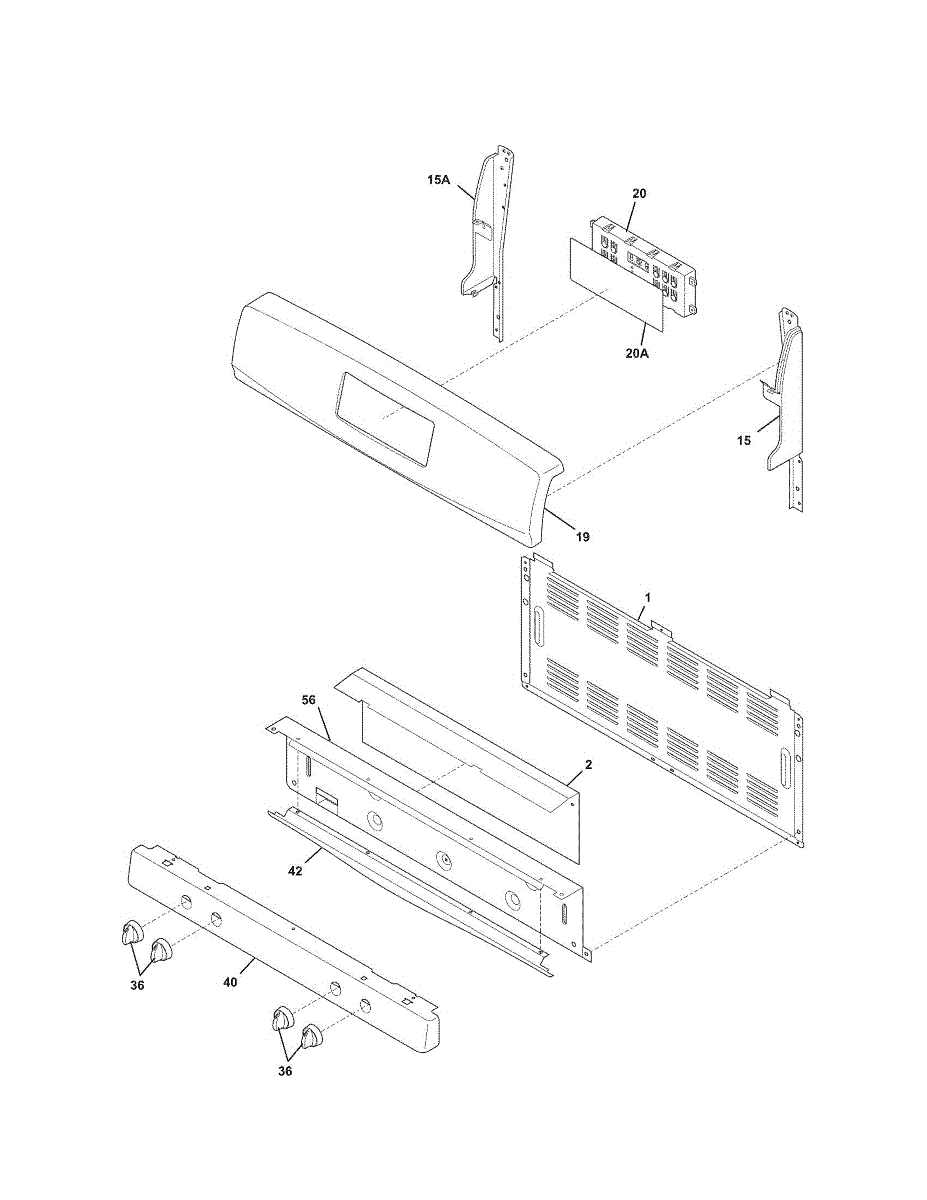

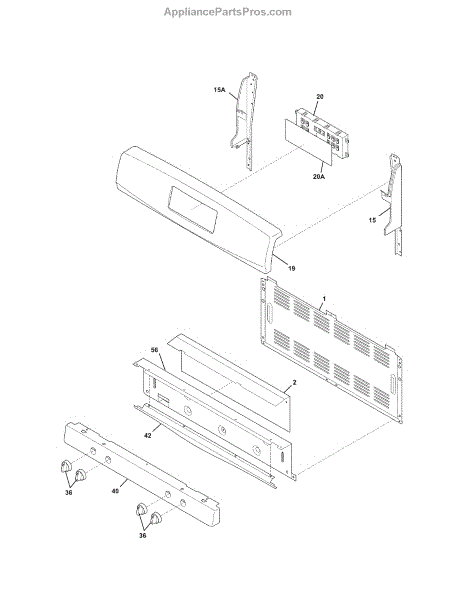

Parts for Kenmore 790.77453802 (79077453802, 790 77453802): Backguard Parts

The Overlay is an OEM part for Frigidaire ranges. It is the control panel's interface layer, displaying the various functions and settings available for the range. This component is crucial for selecting and controlling the appliance's operations, ensuring user-friendly interaction with the cooking settings.

Common causes of a bad overlay include regular wear and tear, exposure to heat, or accidental damage.

Symptoms of a bad overlay include:

• Faded or illegible markings on the control panel
• Difficulty in selecting or changing settings
• Non-responsive or sticking buttons
• The overlay peeling or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Black range burner control knob that mounts on the front control panel. Replace if your knob is cracked, broken, missing, or difficult to grip securely.

Replace your range's control panel if cracked, damaged, or worn. This structural part covers the control interface area on the front of your stove.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This printed repair parts list provides the factory parts diagram and list for locating and identifying replacement components. It helps you layout before ordering or servicing the appliance. What it does:

• Shows the exploded diagram and OEM part numbers for the appliance assembly
• Helps identify correct replacement parts and their locations
• Clarifies part orientation and relationship to surrounding components
• Useful for planning repairs and communicating needed parts to suppliers

• No installation required; used as reference only
• Keep document with service records for future repairs
• If replacing parts, unplug appliance or shut off power and follow appliance-specific safety instructions before servicing
• For complete service procedures, refer to the official service manual

Replacement paper owner's manual for your range. Includes operating instructions, care guidelines, and safety information. Needed when original is lost or damaged.

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
