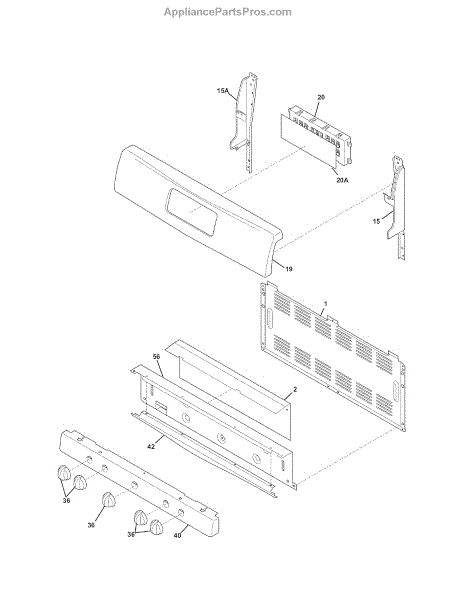

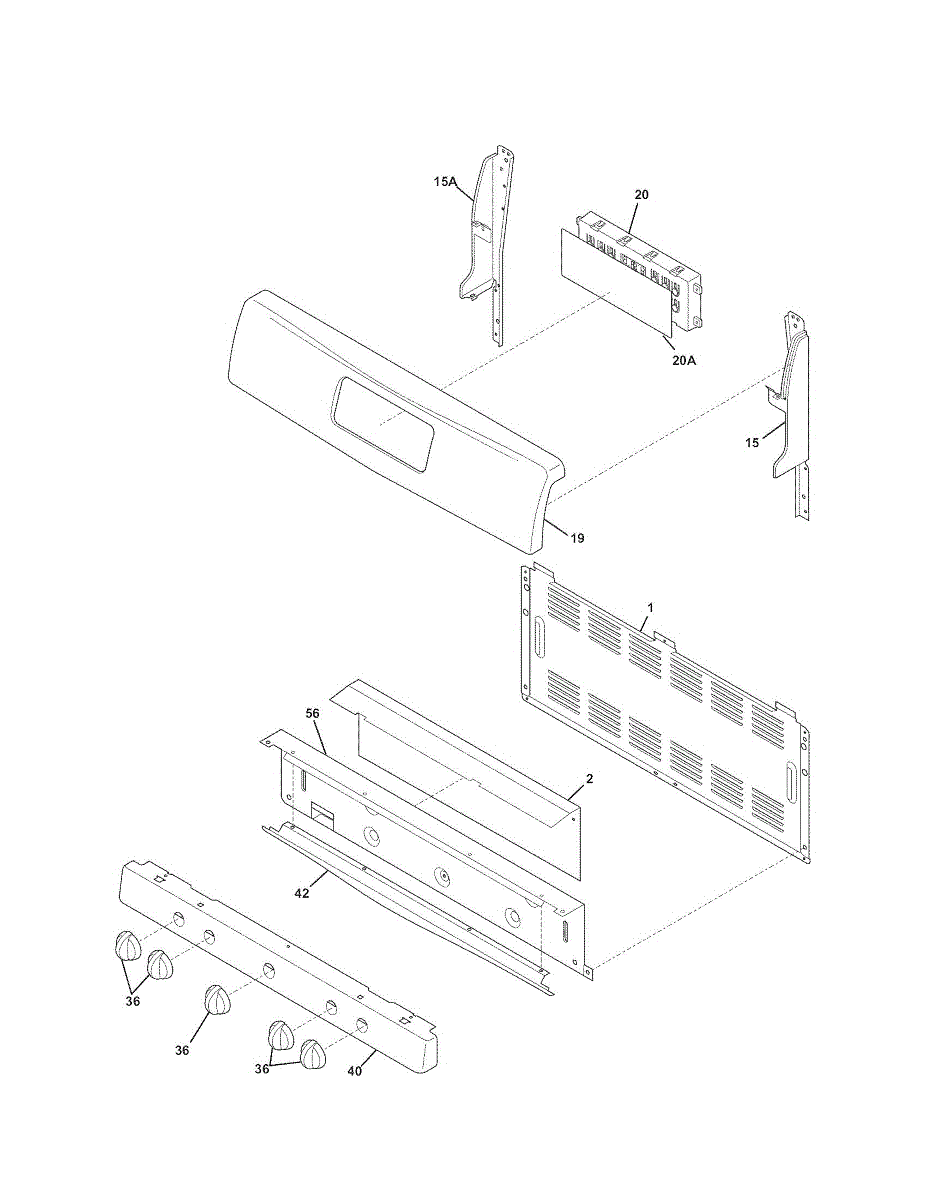

Parts for Kenmore 790.77462800 (79077462800, 790 77462800): Backguard Parts

This is a bisque-colored left-side support bracket that mounts to the backguard area of the range. It provides structural support for the shelf or trim along the back of the cooktop. Replace this bracket if it is cracked, broken, or missing, which can cause the backguard trim or shelf to sit unevenly or come loose.

Decorative overlay that fits over your range's control panel touch pad. Replace if cracked, peeling, faded, or worn to restore appearance and readability.

Electronic control board that manages oven temperature, timing, and cooking functions in range appliances. Replace if the oven won't heat, temperature is inaccurate, or digital display malfunctions.

Graphic label overlay for your electric range control panel. Replaces worn, peeling, or cracked original to restore clear button legends and a clean finish.

This is a black control panel overlay that attaches to the front of the range or oven, providing the printed labels and graphics for the clock, timer, and oven function buttons. It sits over the electronic control panel and gives the controls a finished appearance. Replace this overlay if the printed text is faded, peeling, worn away, or if the panel surface is cracked or damaged.

This is a control knob designed to fit over the top burner valve stem on a gas range cooktop. It allows you to turn the surface burner on and off and adjust the flame height. Replace this knob if it is cracked, worn, or the indicator markings have faded, or if the knob spins freely without engaging the valve.

Replace your worn, cracked, or missing range touch pad panel. This control interface panel installs on the front console to restore button functionality.

Replacement door trim for gas ranges. Installs along the oven door edge to provide a finished look. Order if your original trim is cracked or missing.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This printed parts catalog provides exploded diagrams and part numbers to help identify and order the correct replacement parts for service and repair. Keep it handy for reference during troubleshooting or parts lookup. What it does:

• Shows exploded views and part numbers for appliance assemblies to help you find the right replacement
• Helps technicians and owners confirm part identity before ordering
• Useful when troubleshooting missing, damaged, or failing components that need replacement
• Speeds accurate parts lookup to reduce wrong-order returns

• No installation required — for reference only
• Store in a dry place and keep with service records for future repairs
• Use alongside appliance model diagrams to verify fit before purchasing parts

Replacement paper owner's manual for your range. Includes operating instructions, care guidelines, and safety information. Needed when original is lost or damaged.

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.
