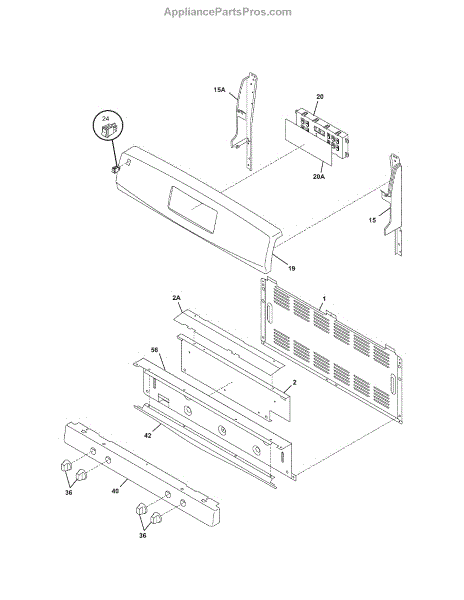

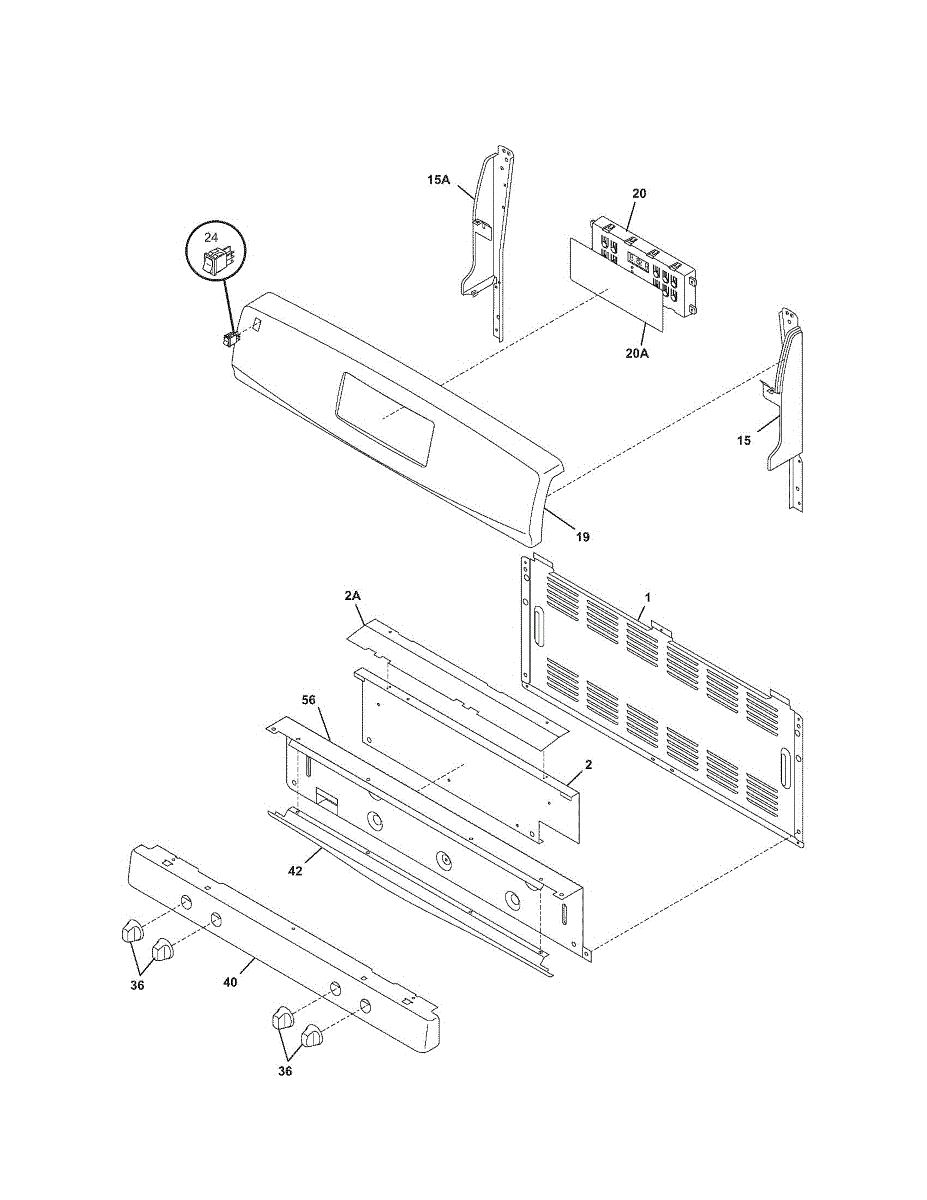

Parts for Kenmore 790.78583402 (79078583402, 790 78583402): Backguard Parts

Touch pad overlay for electric and gas ranges. Covers the control panel with clear markings for settings. Replace if cracked, warped, peeling, or worn.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Black control knob attaches to cooktop valve stem to turn burner on/off and adjust heat. Replace cracked, stripped, or missing knobs for safe operation.

Replace your range's control panel if cracked, damaged, or worn. This structural part covers the control interface area on the front of your stove.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

Service data sheet for your range. Provides technical specifications, wiring diagrams, and troubleshooting information. Replace if missing or damaged.

This printed repair parts list provides the appliance's exploded diagram and parts reference so you can identify replacement components quickly and accurately. It's a non-electrical reference document intended for ordering and service use. What it does:

• Shows part locations and reference numbers alongside the corresponding diagram for easy identification
• Useful for troubleshooting by linking visible components to parts names/numbers
• Reduces guesswork and prevents ordering the wrong component

• This is a reference document only — it is not a serviceable or electrical component
• Keep the sheet with your appliance manual or give it to the service technician during repair
• Handle and store flat to avoid damage; replace if illegible
• Use the listed part numbers to order parts; do not attempt repairs based solely on photos

Owner's manual for your range. Includes operating instructions, care guidelines, and maintenance tips. Replace if lost, damaged, or unreadable.

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.
