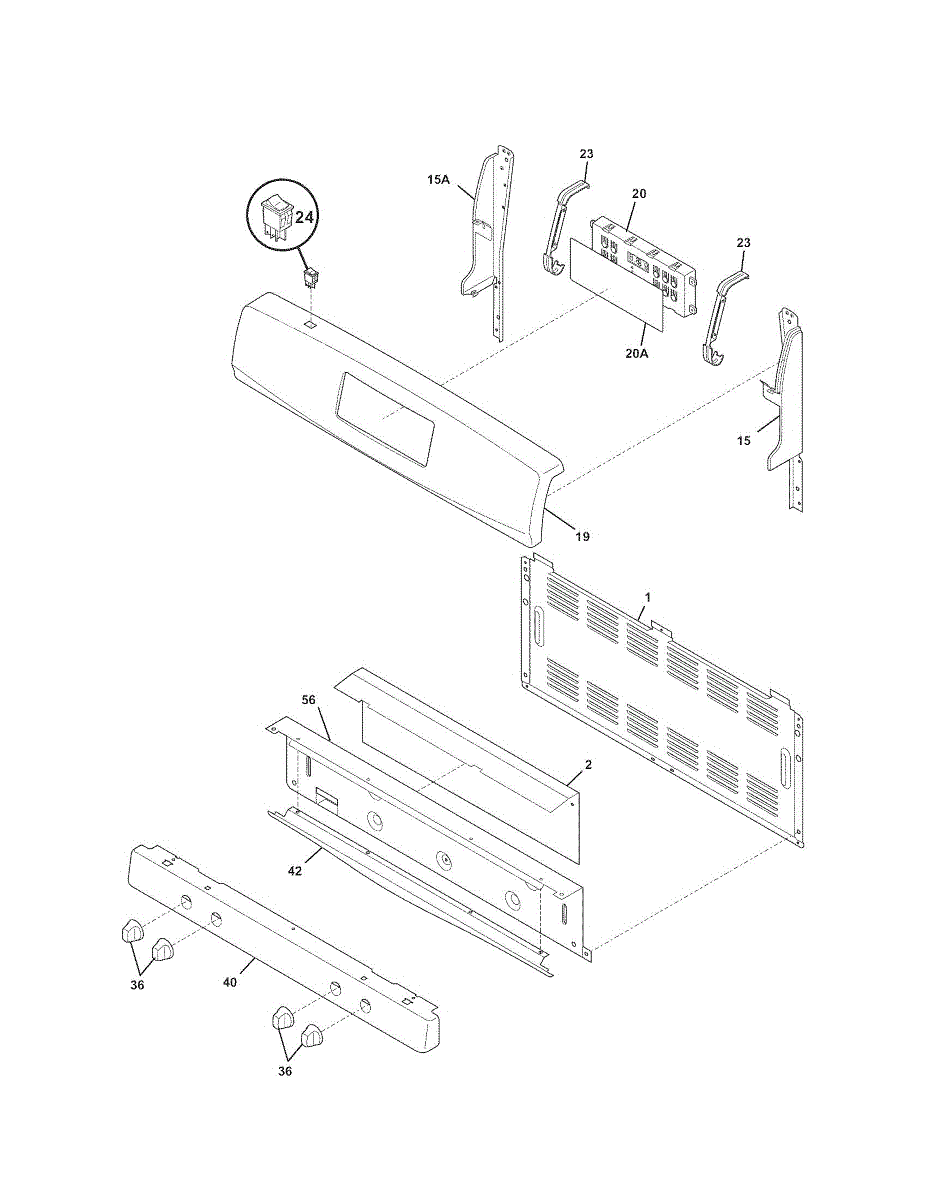

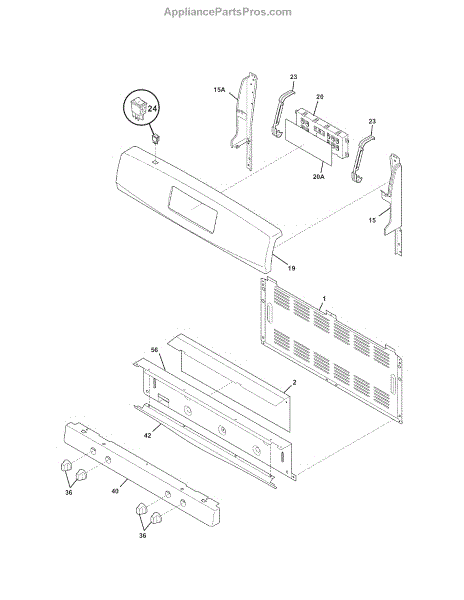

Parts for Kenmore 790.78628701 (79078628701, 790 78628701): Backguard Parts

The oven control board manages oven functions including temperature control, timing, and cooking modes. Replace when the oven won't heat, displays error codes, or controls become unresponsive.

Touch pad overlay for electric and gas ranges. Covers the control panel with clear markings for settings. Replace if cracked, warped, peeling, or worn.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Black control knob attaches to cooktop valve stem to turn burner on/off and adjust heat. Replace cracked, stripped, or missing knobs for safe operation.

Touch pad control panel for ranges. Mounts on the front control surface. Replace if cracked, faded, unresponsive, or buttons are worn or damaged.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This repair parts list is a printed parts diagram that shows component locations and part numbers to help identify what you need for repairs. It's a reference aid for ordering parts and planning a service call. What it does:

• Shows a labeled diagram of appliance components to identify replacement parts
• Lists part numbers and basic locations so DIYers can find needed items
• Helps confirm which components to order before disassembly
• Speeds diagnosis by clarifying assemblies and subcomponents commonly replaced

• No tools or installation required—this is an informational reference, not a functional appliance component
• Keep the sheet dry and store with your service records or owner's manual
• Use this document alongside the official service manual or schematic when ordering parts or planning repairs

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
