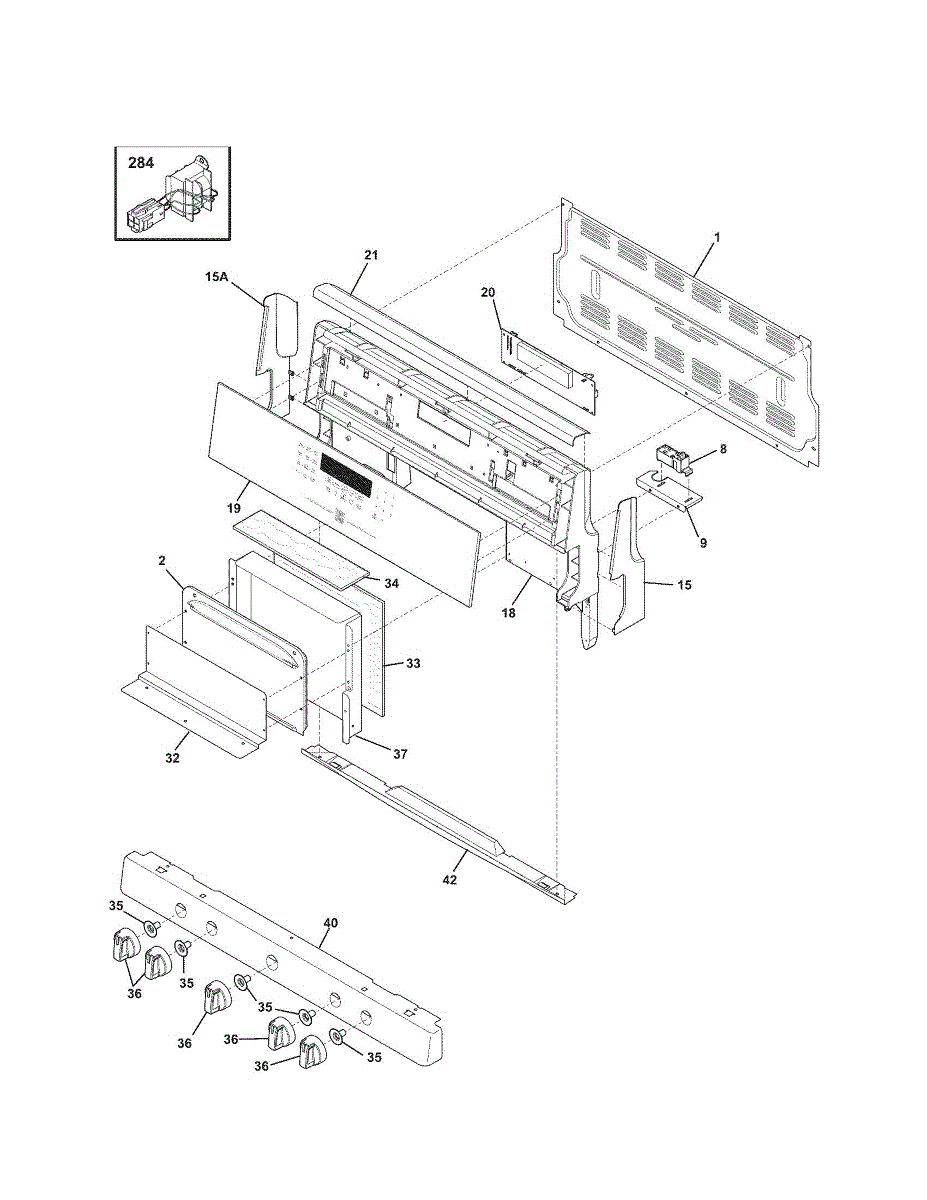

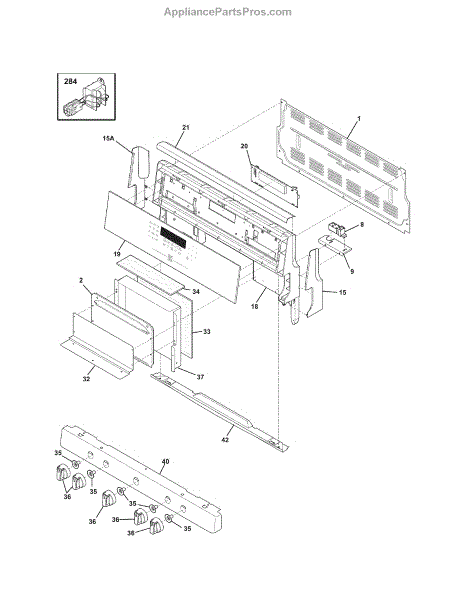

Parts for Kenmore 790.78902002 (79078902002, 790 78902002): Backguard Parts

Gas burners won't ignite and there's no clicking sound? The spark module provides the electrical spark to light all burners. DIY repair in under 1 hour.

Replacement bracket for gas ranges. Secures internal components in place. Order a new bracket if yours is bent, broken, or missing to restore proper fit.

Replace your range's touch pad control panel if the overlay is cracked, buttons are unresponsive, or the display is damaged. Restores appliance appearance.

Replace your range's control panel touch pad if the existing panel is cracked, damaged, or unresponsive. Installs on the control console assembly.

Range not heating or responding to buttons? This control board manages oven timing, temperature settings, and display functions. Moderate DIY repair.

Decorative trim piece that finishes the range door opening. Replaces cracked, chipped, or missing trim along the door frame for a clean look.

Sound dampening insulation for gas ranges. Installs inside range cabinet to reduce noise. Replace if worn, compressed, or missing for proper insulation.

Insulation panel that installs inside your gas range to reduce noise and improve heat retention. Replace if cracked, torn, missing, or deteriorated.

Deflector shield for gas range burners. Mounts around burner assembly to direct heat and protect components. Replace if cracked, warped, or missing.

If your range control panel is unresponsive or the display won't light up, the control transformer may have failed. Supplies low-voltage power to controls.

This wiring harness is the OEM-style electrical connector assembly that routes power and signals between components for proper appliance operation. Replacing a damaged harness restores reliable electrical connections and function. What it does:

• Provides the bundled wires and connectors that link controls, motors and sensors
• Replaces frayed, burned or disconnected wiring that can cause intermittent operation or no power
• Restores secure, correct connections to help prevent arcing or short circuits
• Used when connectors are broken, pins are bent, or insulation is damaged

• Always disconnect power (unplug appliance or switch off breaker) before starting work
• Compare new harness to the old one and follow the appliance wiring diagram for routing and connections
• Use proper connector seating and secure harness with original clips or fasteners to avoid pinch points
• If you find melted connectors or significant damage, inspect associated components and replace as needed

This printed Quick Start Sheet provides the basic setup and startup steps for your appliance so you can get it running quickly and access key safety reminders. Keep it with your paperwork for easy reference. What it does:

• Summarizes initial setup and power-up steps in plain language
• Highlights basic safety warnings and handling notes
• Serves as a quick-reference for initial troubleshooting and operation questions
• Helps when the full owner's manual isn't immediately available

• One Quick Start Sheet

• No tools required — this is documentation only, not a repair part
• Keep the sheet with the appliance paperwork for future reference
• Replace if torn or illegible to ensure safety information remains readable

This repair parts list is a printed parts diagram and reference sheet that helps identify component locations and official part numbers so you can order the correct replacement parts faster. What it does:

• Provides a mapped parts breakdown and diagram for the appliance to locate components visually
• Lists OEM part numbers and nomenclature used in the factory parts catalog
• Helps clarify which parts correspond to observed faults or worn components
• Useful for required spares before ordering or repair

• This is a reference document only; no physical installation required
• Keep the sheet with your service records or near the appliance for quick lookup
• Do not use as a substitute for the official service manual for troubleshooting or electrical diagnostics
• Follow all safety instructions from the appliance manufacturer when replacing parts

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
