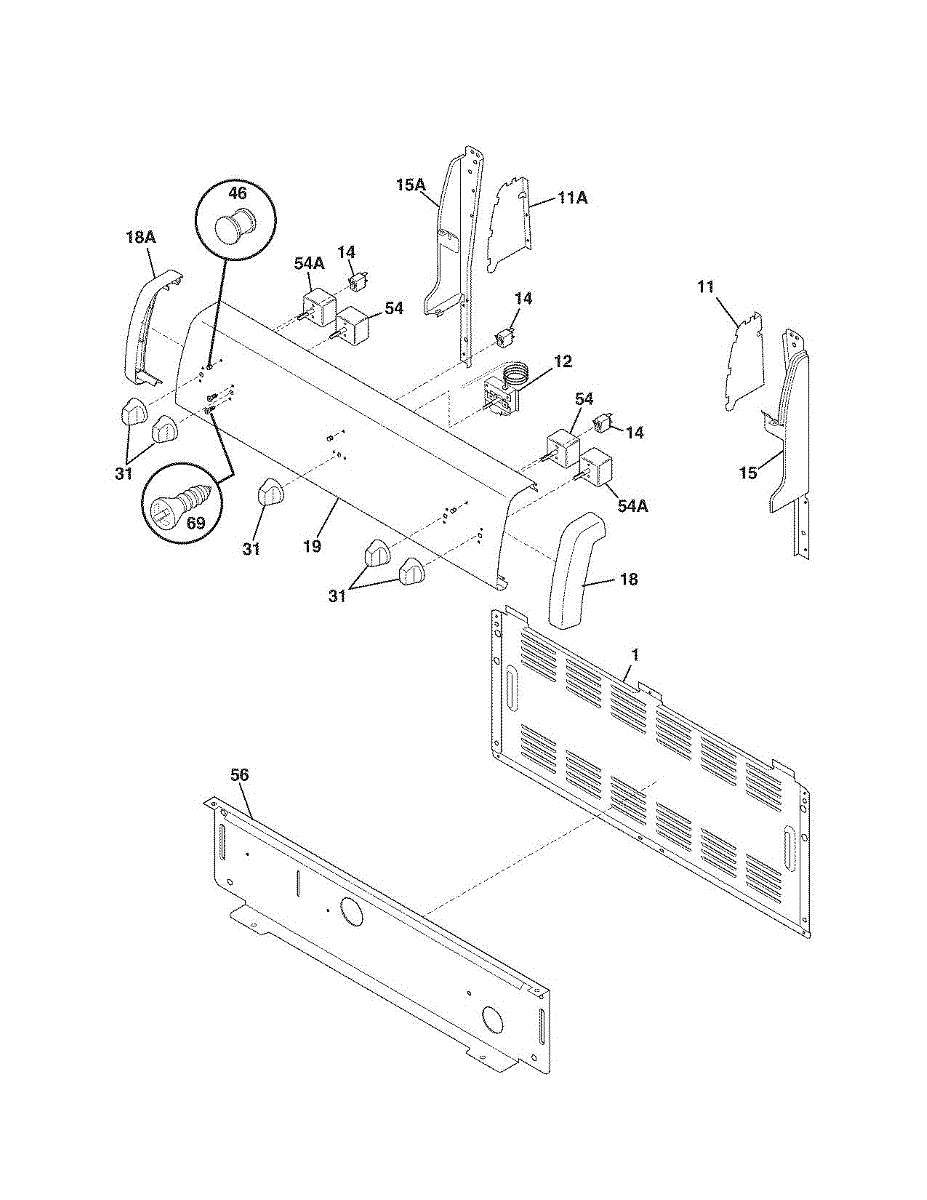

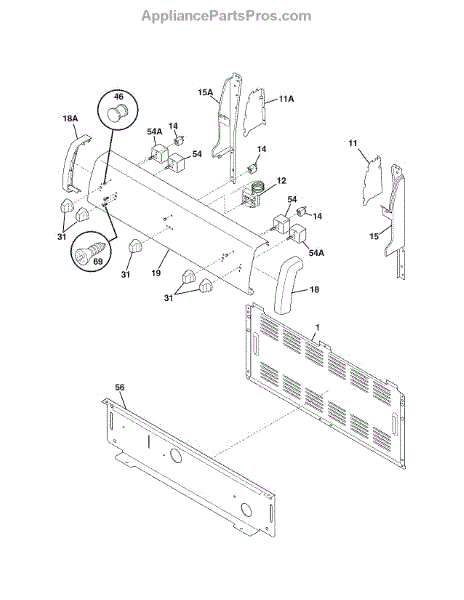

Parts for Kenmore 790.90801404 (79090801404, 790 90801404): Backguard Parts

Replace your range's backguard shield if the rear wall panel is cracked, dented, or damaged. Protects the wall behind your cooktop and covers wiring.

Replace a cracked or missing right-hand shield end cap on your range. This protective trim piece covers the end of the range shield for a complete finish.

Left-hand end cap shield for range oven doors. Replaces cracked, broken, or missing caps that protect the door edge. Installs on the left side of the door.

Oven burns food or won't reach set temperature? The oven thermostat regulates heat by cycling elements on and off. DIY repair takes about 15 minutes.

Range indicator light illuminates to show when burners or oven are on. Replace if light is dim, flickering, or burned out. Verify fit with your model.

Right-hand support plate for range backguard. Replaces cracked, broken, or missing mounting brackets. Secures backguard panel to range body.

Black right-hand endcap for range side panels. Replaces cracked, broken, or missing endcaps. Restores finished appearance to range exterior trim.

Left Hand Endcap - Color: Black

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Burner stuck on high or won't heat? This surface element switch controls temperature for electric range burners. DIY repair in under 30 minutes.

Burner won't turn off or stuck on high? This surface element switch controls heat settings for large burners. Moderate DIY with panel removal.

Replace a cracked, broken, or missing shield on your range. This protective guard component installs to safeguard internal parts from damage or wear.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a printed repair parts list used by technicians to identify factory part numbers and locations for repair. It helps you the right replacement parts before ordering and service. What it does:

• Lists factory part numbers and item names for the appliance
• Shows part locations and exploded-view references common to OEM parts lists
• Helps diagnose which replacement part matches a failed component
• Speeds accurate parts ordering by matching OEM terminology

• This is a reference document; no physical installation is required
• Keep with the appliance paperwork or service kit for use
• Handle pages carefully to avoid tearing; store dry to prevent damage
