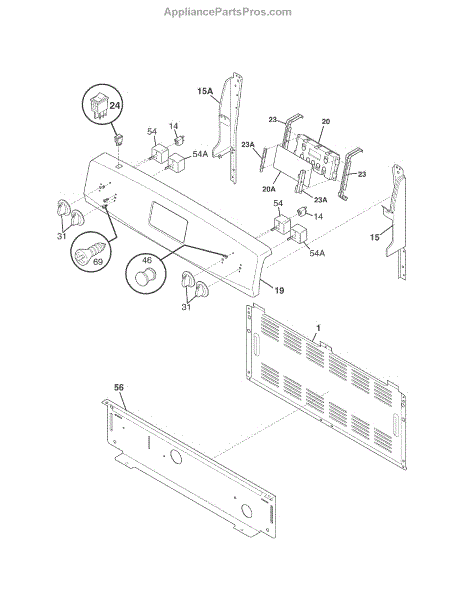

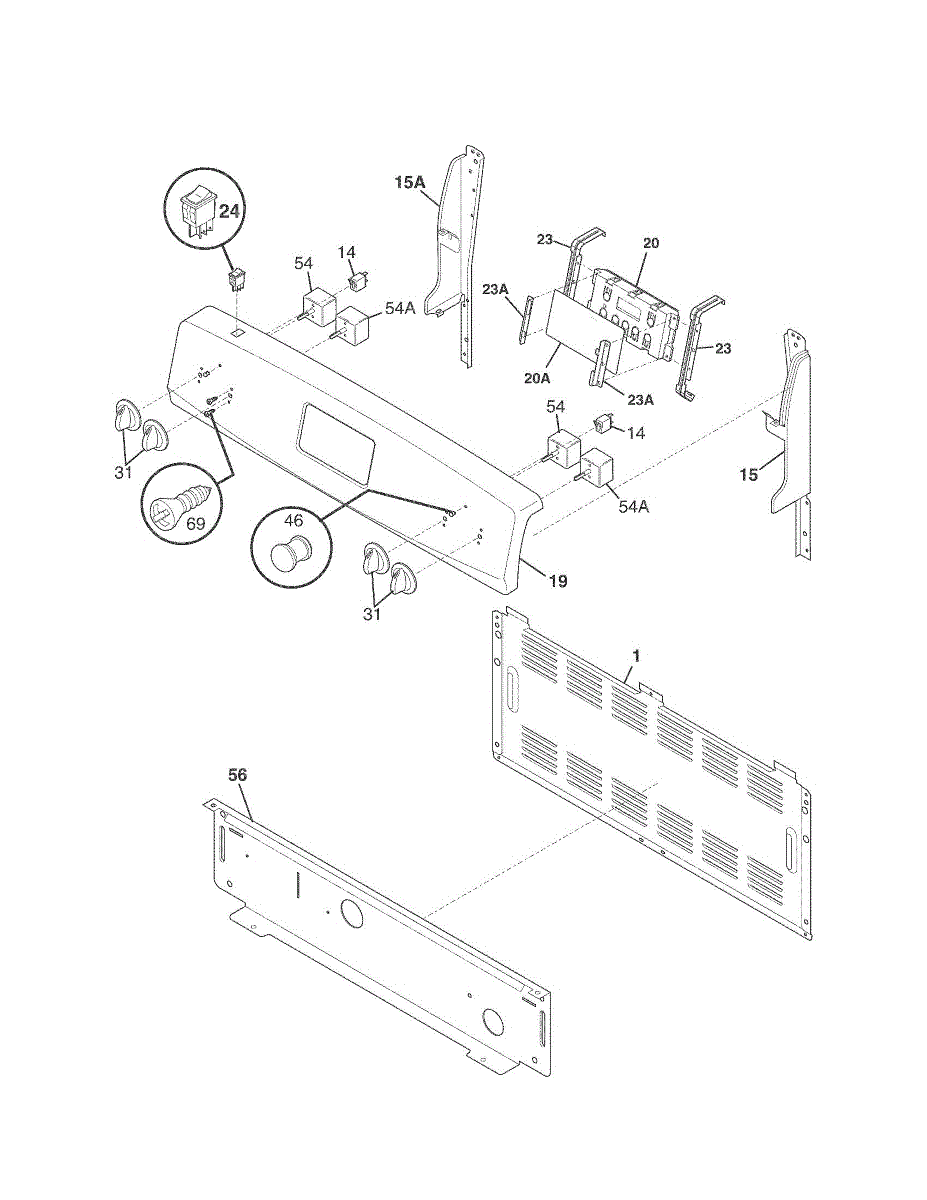

Parts for Kenmore 790.90834608 (79090834608, 790 90834608): Backguard Parts

Protective cover that shields the range door hinge assembly from debris and damage. Replace if cracked, broken, or missing to restore a clean finished look.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

Replacement endcap for electric and gas ranges. Installs on the control panel or side trim. Order if your original is cracked, broken, or missing.

Replace your range's touch pad control panel if the original is cracked, damaged, or unresponsive. This cosmetic panel installs on the front console.

Bisque clock overlay that covers the range control panel display area. Replaces cracked, faded, or missing overlay to restore appearance and readability.

Oven won't heat but stovetop works? This control board regulates bake and broil elements, temperature settings, and timers. DIY-friendly, 10-30 minute fix.

This rocker switch is the on/off control used in the appliance's control panel. It opens and closes the circuit to a selected feature, restoring dependable operation when the original switch becomes worn, stuck, or fails.

• Controls a single on/off circuit from the control panel
• Restores proper switching for the associated feature
• Common symptoms: feature won't turn on or off, light or function flickers or stays on, switch feels loose or sticks
• Replaces a cracked, burned, or unresponsive rocker

• Disconnect power at the breaker before servicing
• Access the switch from the control panel or mounting area; note/photograph wire positions
• Move wires to the new switch one at a time and seat the switch securely in the panel opening
• Restore power and test operation before reassembly

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Burner stuck on high or won't heat? This surface element switch controls temperature for electric range burners. DIY repair in under 30 minutes.

Burner won't turn off or stuck on high? This surface element switch controls heat settings for large burners. Moderate DIY with panel removal.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This repair parts list is the factory service parts diagram used to identify and order replacement components. It helps technicians and DIYers locate part numbers and view assembly layouts for accurate repairs. What it does:

• Shows exploded views and part numbers for the appliance's assemblies
• Helps identify the exact replacement parts needed
• Speeds parts ordering by providing OEM reference numbers
• Useful for troubleshooting by visually locating components

• One printed or PDF repair parts list/document

• Not a mechanical or electrical component — no installation required
• Keep with appliance paperwork or service kit for future repairs
• Use the listed part numbers when ordering replacements to ensure correct fit

Official service tech sheet manual for electric ranges. Includes wiring diagrams, troubleshooting charts, and technical specifications for repair technicians.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
