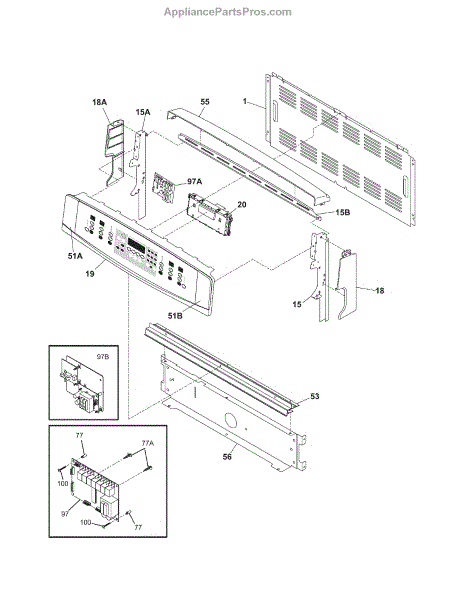

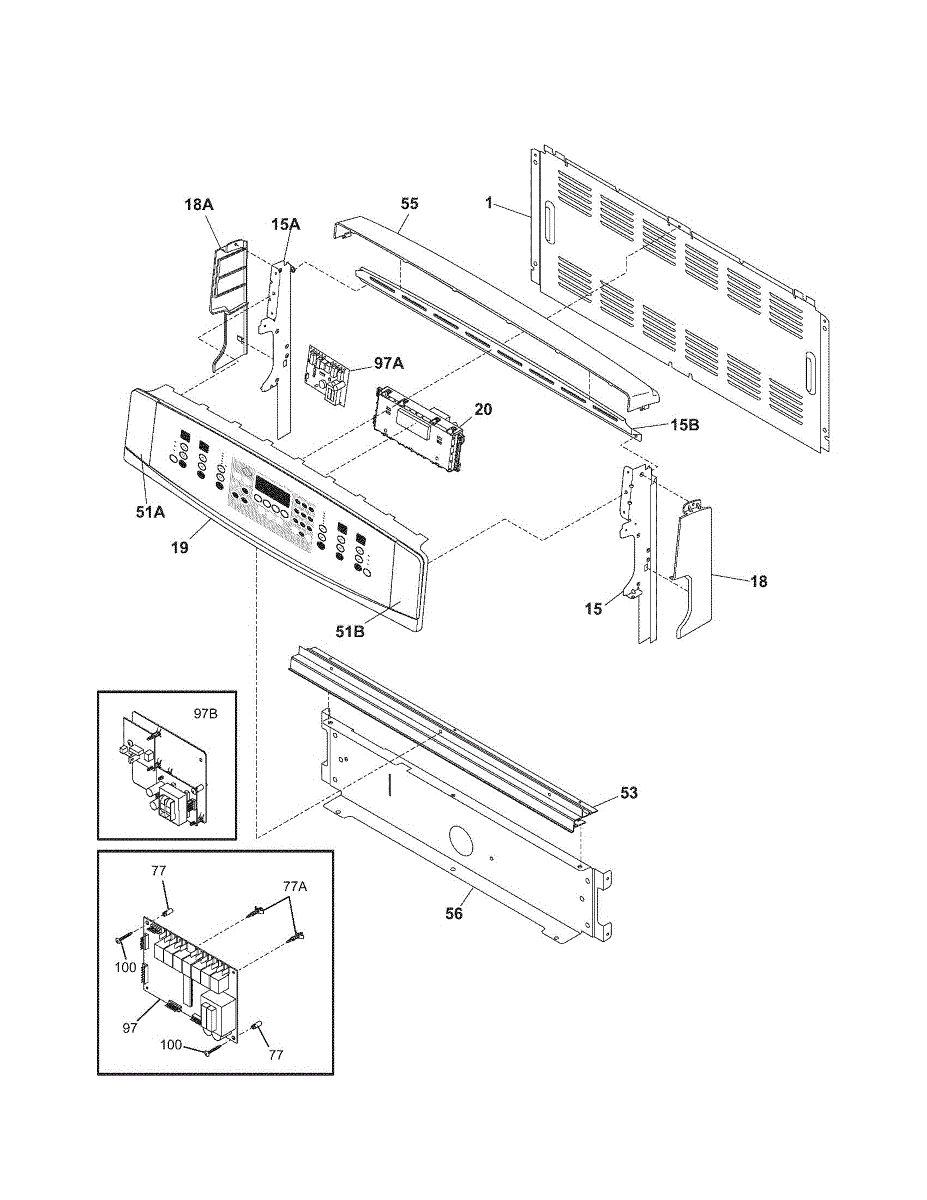

Parts for Kenmore 790.96599602 (79096599602, 790 96599602): Backguard Parts

This oven control board manages all electronic functions including temperature regulation, timer operations, and cooking modes. It receives input from control panels and operates heating elements accordingly. Replace it if the oven won't heat, temperature is inaccurate, or if digital displays and controls stop responding.

Replace your damaged or missing range door trim. This cosmetic piece covers the door edge, providing a finished look. Order now if yours is cracked or worn.

Black top cap trim for range burners. Replaces cracked, chipped, or missing trim pieces that affect your cooktop's finished appearance and fit.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Oven won't heat or display is blank? This electronic control board manages temperature, timers, and element power. Moderate DIY repair in 1-2 hours.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This repair parts list provides the official parts diagram and numbered parts list so you can identify the exact components needed for repairs. It helps you match part numbers and visualize assembly locations for accurate ordering. What it does:

• Shows exploded diagrams and numbered callouts to locate individual parts
• Lists OEM part numbers and quantity per assembly for ordering accuracy
• Aids technicians and DIYers with parts identification during diagnosis

• This document is for reference only; verify the part number against your appliance before ordering
• Use the diagrams to identify parts — the list does not include physical parts
• Keep the document with service records for future maintenance
