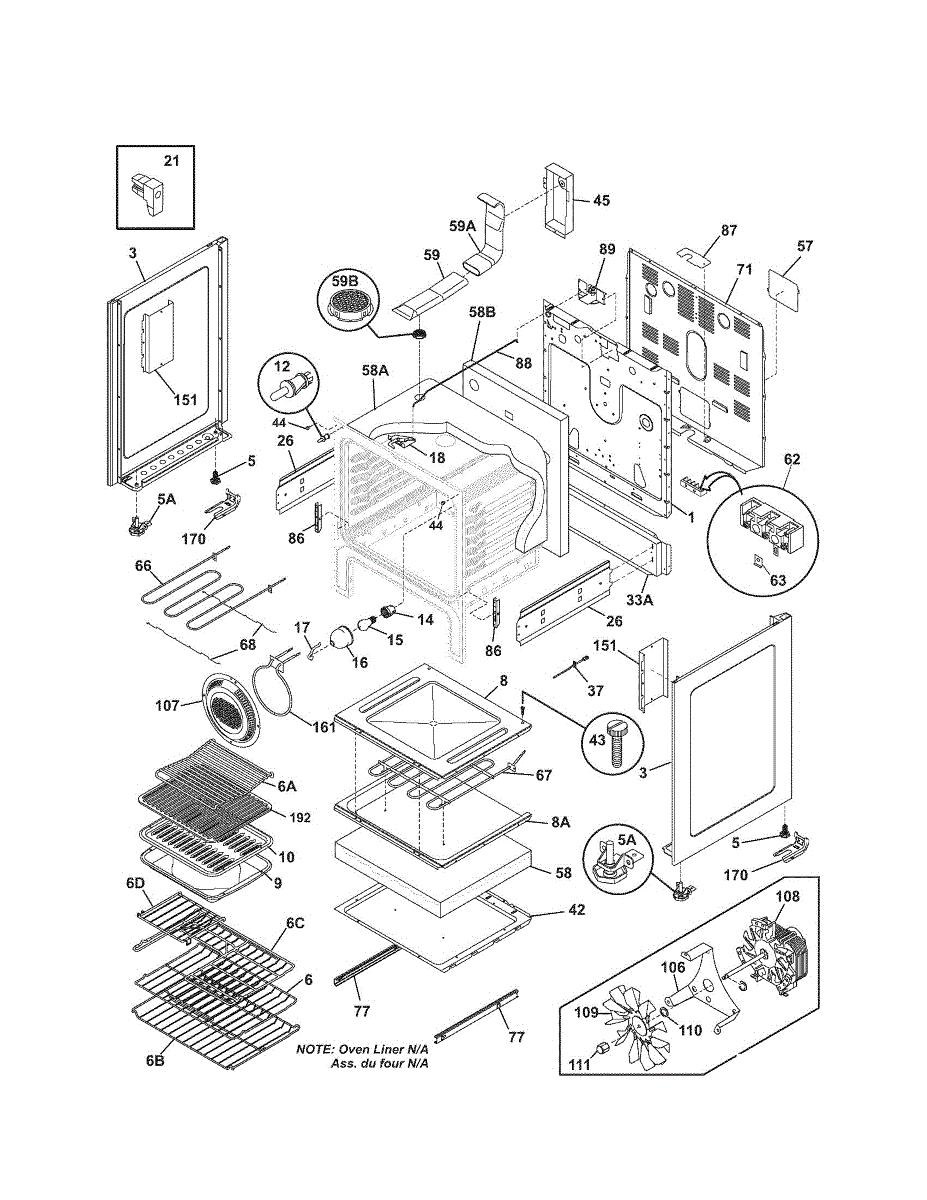

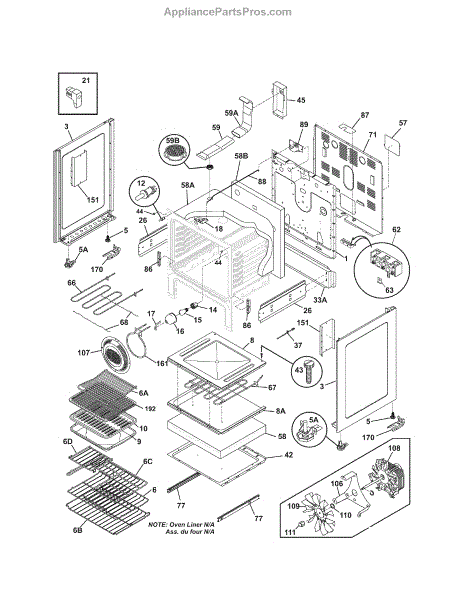

Parts for Kenmore 790.96599602 (79096599602, 790 96599602): Body Parts

Replacement control console panel for electric ranges. Restores front trim around controls and display. Replaces cracked, faded, or bent panels.

Control panel trim for electric and gas ranges. Replaces cracked, faded, or damaged panel trim. Installs on the front control area to restore appearance.

Exterior trim panel that houses and protects your range's control interface and display. Replace if cracked, broken, or worn to restore a clean appearance.

This factory screw secures panels, brackets, and other components in your cooking appliance. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and keep parts properly aligned during use.

• Fastens components to maintain proper alignment and stability
• Helps prevent vibration, rattling, and loose parts during operation
• Replace if threads are stripped, the head is damaged, or the screw is missing
• Commonly used to mount internal or exterior parts in ranges and wall ovens

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Use the correct driver bit to avoid stripping the screw head
• Install in the original location and do not overtighten
• If the receiving threads are damaged, repair or replace the mating part before installation

Leveling leg assembly installs at the front corners of your range. Replace if broken, rusted, missing, or no longer adjusts to level your appliance.

This upper dishwasher rack replaces a worn or damaged dish rack so you can safely load glasses, cups and small bowls without scraping or tipping. It restores proper support and spacing for everyday dishwashing. What it does:

• Holds dishes, cups and small items on the upper level for effective cleaning
• Keeps items stable during wash cycles to prevent chipping and breakage
• Replaces bent, rusted or missing wire racking for improved loading
• Works with compatible dishwasher guides and rollers to slide smoothly

• One replacement upper dishwasher rack

• Installation is typically a straightforward swap; align rack with the tub rails and slide into place
• Inspect roller assemblies and track for wear; replace if damaged to ensure smooth operation
• Disconnect power to the dishwasher before servicing if removing panels or accessing electrical components
• Use gloves to avoid sharp edges on worn metal racks

Broiler pan rack for electric ovens and ranges. Replaces cracked, warped, or missing racks. Installs inside broiler pan for elevated cooking.

This base component supports and secures your oven's bake element to the oven cavity wall. It provides electrical connections and proper positioning for even heat distribution during baking. Replace if your bake element is loose, doesn't heat evenly, or if you see sparking or arcing near the element connection.

Replaces the metal panel at the base of your oven interior. Installs on the oven floor. Needed when original is warped, rusted, or damaged by foil.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Oven light stays on or won't turn on when door opens? This door-activated switch restores automatic light control. Easy 15-minute DIY repair.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Secures the glass light cover to your range oven cavity. Replace if the retainer is cracked, broken, or missing to keep the lens firmly in place.

Fix an oven door that won't lock during self-clean or clean cycle errors. This door latch assembly secures the door and reports lock status to the control.

Secures range trim, panels, and components to prevent rattles and loosening. Replace when clips break or lose tension. Confirm fit with your model number.

This shield is a replacement protective panel that covers and protects internal appliance components from debris and heat, helping maintain safe operation and appliance appearance. What it does:

• Covers exposed internal components to reduce debris buildup and prevent accidental contact
• Helps direct airflow or heat away from sensitive parts
• Replaces a cracked, bent, or missing shield that may cause vibration or scraping noises
• Restores a finished appearance to the appliance where the original shield was damaged

• One replacement shield

• Disconnect power (unplug or switch off breaker) before service to avoid shock or injury
• Typical installation requires removing nearby panels and fastening the shield with screws or clips—retain all hardware for reassembly
• Handle carefully to avoid sharp edges; wear gloves and eye protection

Fix F10 error codes or inaccurate oven temperatures with a new sensor probe. Common fix for ovens that overheat or won't reach set temp. Easy DIY repair.

Secures the oven bottom panel in place. Replace if screw is stripped, missing, or no longer holds the panel securely. Sold individually.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Shield protects the wire harness near the vent tube in your range. Replace if cracked, damaged, or missing to prevent wire exposure and ensure safe operation.

Insulation blanket that installs inside your range oven cavity for heat retention and sound dampening. Replace if torn, compressed, or missing.

Molded insulation liner that fits inside the range oven cavity. Replace if yours is damaged, compressed, or missing to restore proper heat containment.

Insulation panel for range oven cabinet that reduces heat transfer and noise. Installs on top and sides. Replace if worn, damaged, or missing.

Ceramic catalyst insert for range oven vents. Breaks down cooking odors and residues at high temperatures. Replace if cracked, clogged, or missing.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Stop rattling and loose panels in your range with this support plate. Secures internal components, reduces vibration, and restores proper alignment.

Broil element not heating or burnt out? This upper heating element restores intense top heat for broiling meats and melting cheese. Easy DIY repair.

Oven won't heat or bake properly? A failed bake element is often the cause. This bottom heating element replacement is straightforward—most DIYers complete it in under 30 minutes.

Right-side oven rack support mounts to the interior wall to hold and guide oven racks at proper heights. Replace if cracked, broken, or missing.

Replace your range's heat shield if it's cracked, warped, or missing. This protective barrier installs between heating elements and components.

Replaces a worn, broken, or missing storage drawer glide for smooth sliding operation. Installs on the drawer track to restore proper alignment and movement.

This electrical receptacle is the small connector that secures a wiring plug to an appliance component, restoring a reliable electrical connection and preventing intermittent operation or arcing. What it does:

• Provides a secure plug-in connection between a wire harness and a component
• Restores power to a component when the original connector is cracked, melted, or corroded
• Helps prevent loose connections that can cause intermittent operation or sparks
• Fits the OEM-style wiring configuration for a direct replacement

• Disconnect power to the appliance before starting any repair
• Remove the damaged connector and match the replacement to the harness before installing
• Use basic hand tools; avoid forcing terminals to prevent damage

Mounting plate for electric and gas ranges. Secures components in place. Replace if cracked, bent, or broken to restore proper structural support.

Replacement door latch rod for electric and gas ranges. Installs in the door mechanism to secure the latch assembly. Order a new rod if broken or missing.

Fix F95 error code or oven door that won't lock during self-clean cycle. This door lock motor assembly repair takes about 15 minutes with basic tools.

Secures the motor assembly to the range chassis. Replace if your bracket is cracked, bent, or broken to restore proper motor alignment and stability.

This evaporator fan cover protects the refrigerator evaporator fan assembly and helps direct airflow for proper cooling. It's a molded replacement part that restores the original airflow path and prevents debris contact with the fan. What it does:

• Shields the evaporator fan and motor from ice buildup and loose debris
• Directs airflow across the evaporator for even cooling in the freezer compartment
• Helps reduce fan noise by stabilizing airflow around the fan housing
• Commonly replaced when cracked, broken mounting tabs are present, or airflow is obstructed

• One fan cover

• Disconnect power before accessing the evaporator compartment to avoid shock and fan injury
• Remove food and evaporator access panels per model service instructions before replacing the cover
• Handle clips and mounting tabs gently—use proper fasteners if any original hardware is damaged
• If you encounter ice buildup on the evaporator, fully defrost and address the underlying cause before reassembly

Convection fan not working or oven heating unevenly? This motor kit drives the fan to circulate hot air for consistent baking. Moderate DIY repair.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

Size: 3/4 inch od x 1/4 inch id.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Uneven baking or convection mode not working? This rear-mounted convection fan heating element circulates hot air for consistent cooking results.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Removable griddle plate that sits over range burners to create a flat cooking surface. Replace yours if cracked, warped, or worn for even cooking.

Replacement screw for electric and gas ranges. Used to secure various components and panels. Order a new screw if the original is stripped, missing, or damaged.

Support plate that mounts to the bottom of your range oven cavity. Replace if the original plate is cracked, warped, or damaged from heat exposure.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Black mounting screw that secures range body side panels. Replace if stripped, missing, or corroded. 8-18 x 11/16 inch fastener for structural assembly.

Size: 8-18ab x 0.5 inch.

Mounting screw for securing range panels, brackets, and igniters. Replace if stripped, missing, or damaged to restore proper fastening and alignment.

Size: 6-20 x 0.312 inch.

Touch-up paint for appliances to cover scratches, chips, and worn areas on exterior surfaces. Restores appearance of refrigerators, ranges, and more.

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
