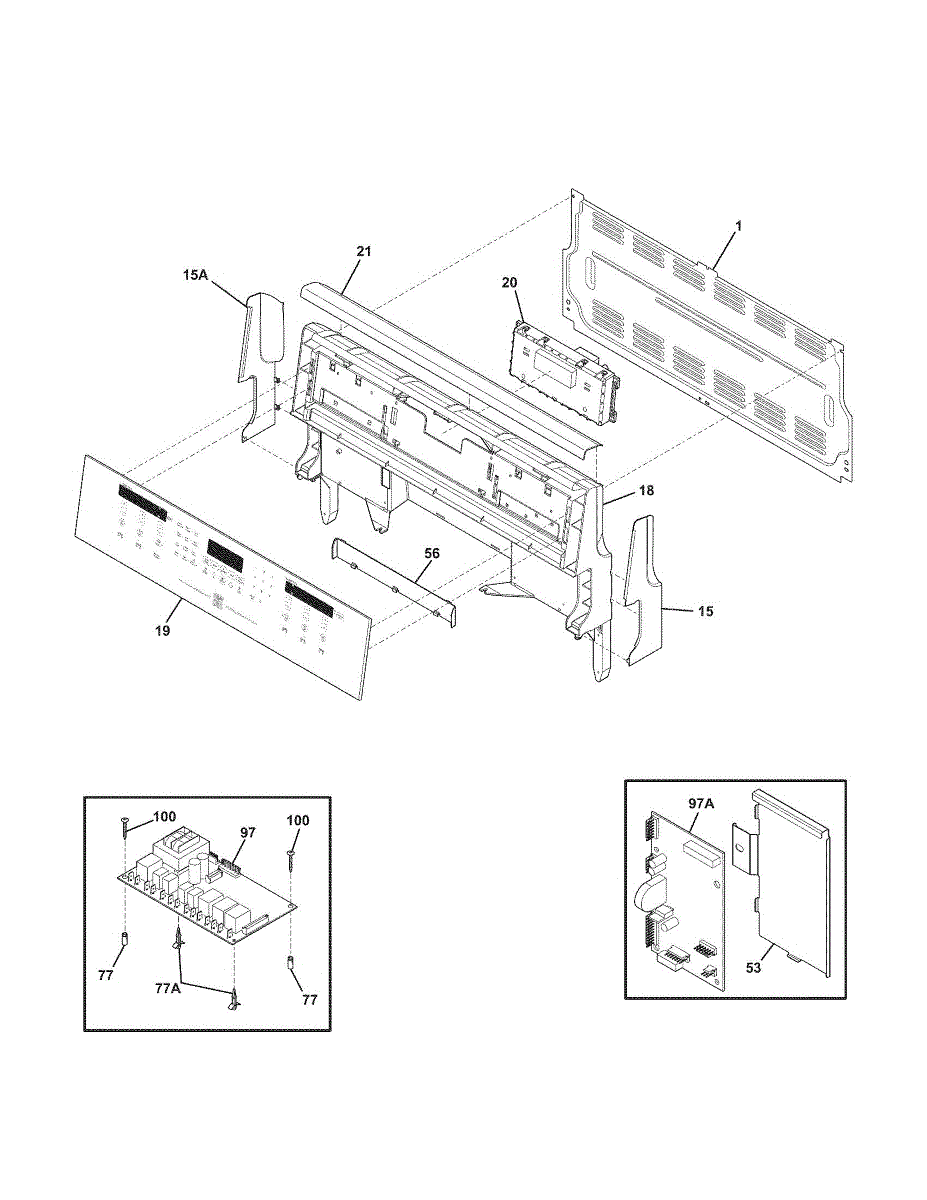

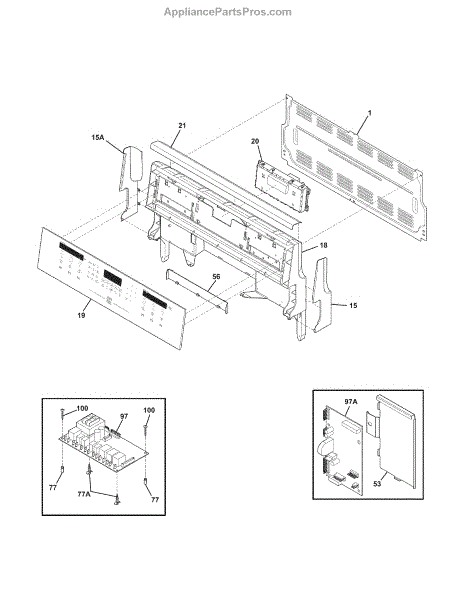

Parts for Kenmore 790.97102012 (79097102012, 790 97102012): Backguard Parts

Fix oven display not working, keypad unresponsive, or temperature control issues. This electronic control board restores oven functions and heating cycles.

Decorative trim piece that finishes the range door opening. Replaces cracked, chipped, or missing trim along the door frame for a clean look.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Oven won't heat to set temperature or display shows error codes? This electronic control board manages bake/broil circuits and clock functions. DIY repair.

Size: 8-18ab x 0.5 inch.

This printed repair parts list is the factory parts diagram and reference sheet used to identify components for service and ordering. It helps you find the correct replacement part names and item numbers quickly. What it does:

• Shows exploded views and part callouts so you can identify the exact component needed
• Lists OEM part numbers and descriptions for accurate ordering
• Helps diagnose which part may be faulty by matching pictured components to your appliance
• Reduces guesswork when preparing for a repair or ordering parts

• This is a reference document, not a replacement hardware component
• Keep the sheet dry and flat; use it as a guide when the appliance is powered off
• Always disconnect power and follow safety procedures before servicing the appliance

Replace a damaged or frayed wire harness in your range. This internal wiring assembly connects electrical components. Order a new harness if yours is worn.

Replace your range's wire harness if the wiring assembly is damaged, frayed, or burnt. Connects electrical components inside the oven and cooktop.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
