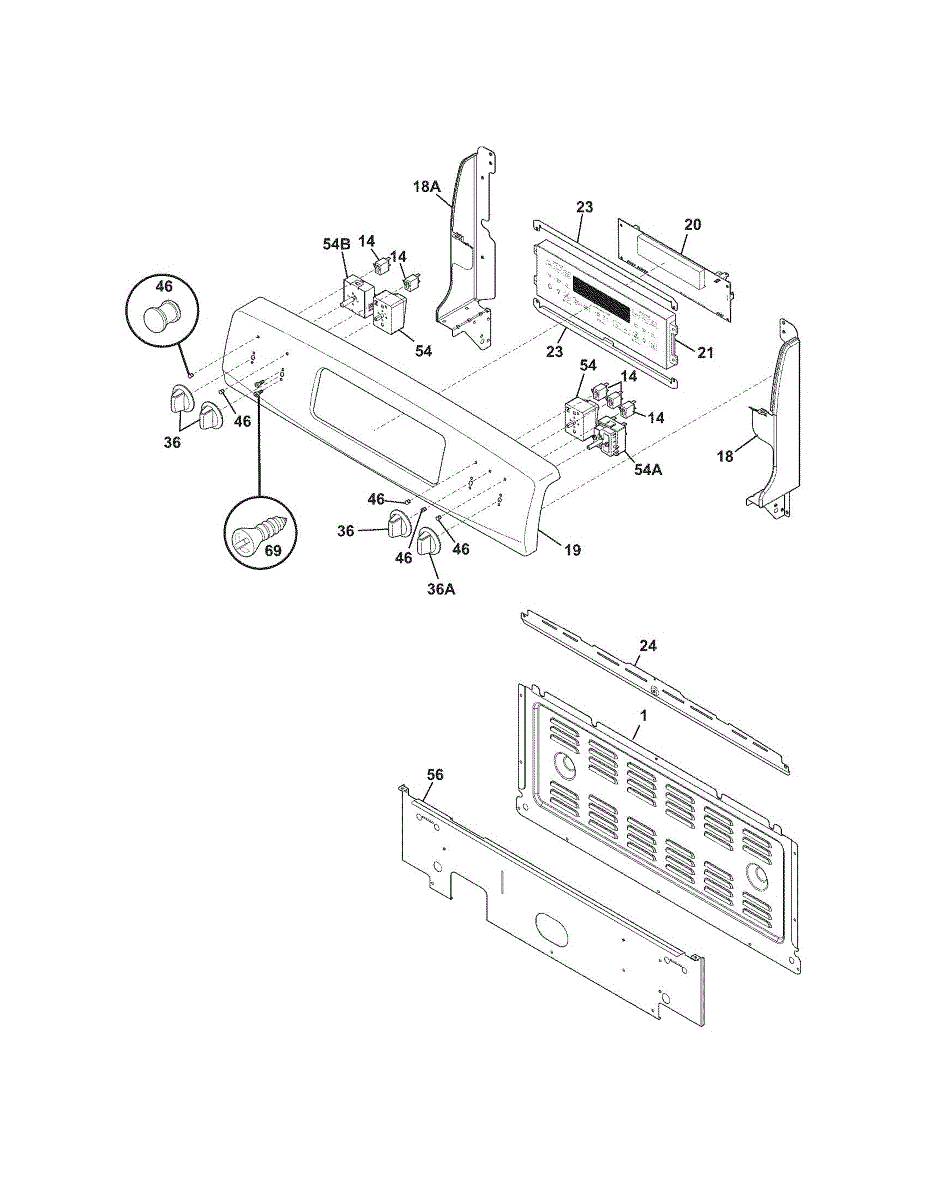

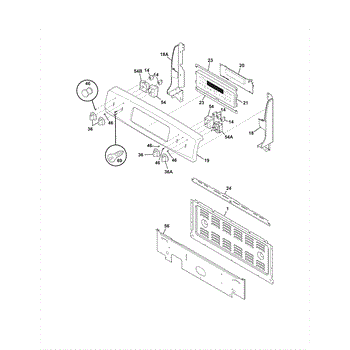

Parts for Kenmore 790.98052002 (79098052002, 790 98052002): Backguard Parts

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

White control knob for range stovetops. Replaces worn, cracked, or missing knobs. Installs on the control panel to operate burners and oven settings.

Color: Black

Color: White

Black control knob for electric range burners and oven. Replaces worn, cracked, or missing knobs. Direct fit replacement for damaged control knobs.

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Range burner won't heat or stuck on high? This infinite switch controls surface element temperature settings. Restores precise heat control to cooktop.

Burner stuck on high or won't heat? This surface element switch controls temperature for electric range burners. DIY repair in under 30 minutes.

Secures burner switch to mounting bracket for reliable control. Prevents switch misalignment causing stuck or unresponsive burners. Easy 10-minute fix.

These printed instructions provide the appliance's safety, installation and operating guidance in plain language so you can set up and use the unit correctly. Keeps important warnings, care tips and basic operating steps on hand. What it does:

• Explains safety warnings and recommended precautions for safe operation
• Provides basic installation and connection guidance for typical setups
• Describes normal operating controls, cycles and settings
• Offers care and maintenance tips to help prevent common problems
• Includes basic troubleshooting steps to identify simple issues

• Read all safety and installation instructions before attempting installation or operation
• Follow local codes and, when required, for electrical or gas work
• Keep instructions with the appliance for future reference and when selling or servicing the unit
• Do not use the instructions in place of repair guidance; for repairs

This is a factory service data sheet: a single-sheet technical reference that supplies technicians with concise service, wiring, and troubleshooting guidance to help diagnose appliance issues faster and more accurately. What it does:

• Summarizes key service information and diagnostics for the specified appliance
• Provides wiring/connection references and component callouts to support repairs
• Helps identify common failure symptoms and the parts associated with them
• Serves as a quick-reference for test points and service procedure reminders

• One factory service data sheet (single printed technical reference)

• No electrical installation required; use as a diagnostic reference only
• Keep sheet dry and store with service records or tool kit for use
• Follow all safety precautions and disconnect power before performing electrical tests
• Refer to full service manual or manufacturer instructions for detailed repair procedures

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replacement 10-32 x 17/32 screw secures range panels, trim pieces, and internal brackets. Restores stable fit and reduces rattling from loose components.
