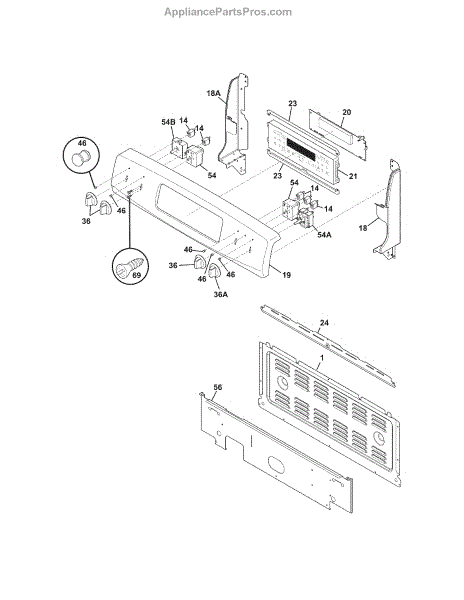

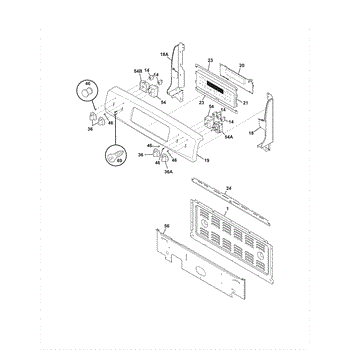

Parts for Kenmore 790.98053005 (79098053005, 790 98053005): Backguard Parts

The Indicator Light is an OEM part for Frigidaire ranges. This light is designed to signal when the range or oven is in operation, providing a visual cue for safety and usability. It typically illuminates when the burners or oven are on, ensuring users are aware of active heating elements.

Causes of a bad indicator light can include electrical malfunctions, wear and tear over time, or damage from power surges or excessive heat.

Symptoms of a bad indicator light include:

• Light not illuminating when the range or oven is in use
• Flickering or inconsistent illumination
• Light staying on constantly, even when the range or oven is off
• Visible damage or discoloration of the light

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the console panel that covers and protects the oven's front controls and display, restoring a clean, finished look and allowing buttons and the display to be visible and used normally. What it does

• Covers the control area and provides the mounting surface for buttons and the display.
• Protects internal control components from spills, grease, and impact.
• Common symptom: cracked, warped, or cosmetically damaged front panel that affects appearance or button access.

• One console panel (front) only.

• Disconnect power to the appliance before starting any work to avoid electrical shock.
• Removal typically requires unscrewing fasteners and/or releasing retaining clips; keep screws and hardware for reassembly.
• Handle panel edges carefully to avoid cuts or damage to the finish.

The Indicator Light Lens is an OEM part for Frigidaire ranges. This component covers and protects the indicator light, which signals when a burner or the oven is on, providing a visual cue for users to ensure safe operation.

Over time, the indicator light lens can become damaged or discolored due to heat exposure, regular cleaning, or accidental impacts. Causes of a bad indicator light lens include cracking, warping, or clouding that obscures the light.

Symptoms of a bad indicator light lens include:

• The indicator light not being clearly visible
• Cracks or breaks in the lens
• Discoloration or cloudiness that diminishes the brightness of the light
• The lens becoming loose or falling off

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement control switch restores a single appliance control function by completing or interrupting the circuit that powers that feature. Fits select Frigidaire appliances to replace a failed or intermittent control switch. What it does:

• Acts as the user/control interface switch that opens or closes power to a specific circuit
• Replaces a worn or failed switch that causes a feature to not respond or work intermittently
• Helps stop unwanted operation when a switch sticks or shorts
• Restores reliable on/off or stepped control for the affected function

• Always disconnect power at the breaker or unplug the appliance before servicing
• Note wire positions before disconnecting
• Require removal of a control panel or access panel; keep screws and small parts organized

The Small Surface Element Switch is an OEM replacement part for Frigidaire electric ranges. It serves as the control knob and circuitry to safely power one of the smaller cooking elements.

Symptoms of a bad surface element switch include:

• Inability to ignite or regulate heating for its assigned zone
• Switch knob that feels loose, won't click smoothly, or won't stay set
• Intermittent or unreliable power to the smaller element coils
• Tripped circuit breakers upon use that don't reset

Causes relate to thousands of rotations wearing micro-switches and wiring terminals within the control assembly. Regular cleaning around knobs can prevent accelerated deterioration from baked-on debris conducting excess heat.

This genuine OEM replacement part is compatible with other brands including Electrolux and Kenmore as well.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a factory service data sheet: a single-sheet technical reference that supplies technicians with concise service, wiring, and troubleshooting guidance to help diagnose appliance issues faster and more accurately. What it does:

• Summarizes key service information and diagnostics for the specified appliance
• Provides wiring/connection references and component callouts to support repairs
• Helps identify common failure symptoms and the parts associated with them
• Serves as a quick-reference for test points and service procedure reminders

• One factory service data sheet (single printed technical reference)

• No electrical installation required; use as a diagnostic reference only
• Keep sheet dry and store with service records or tool kit for use
• Follow all safety precautions and disconnect power before performing electrical tests
• Refer to full service manual or manufacturer instructions for detailed repair procedures

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.
