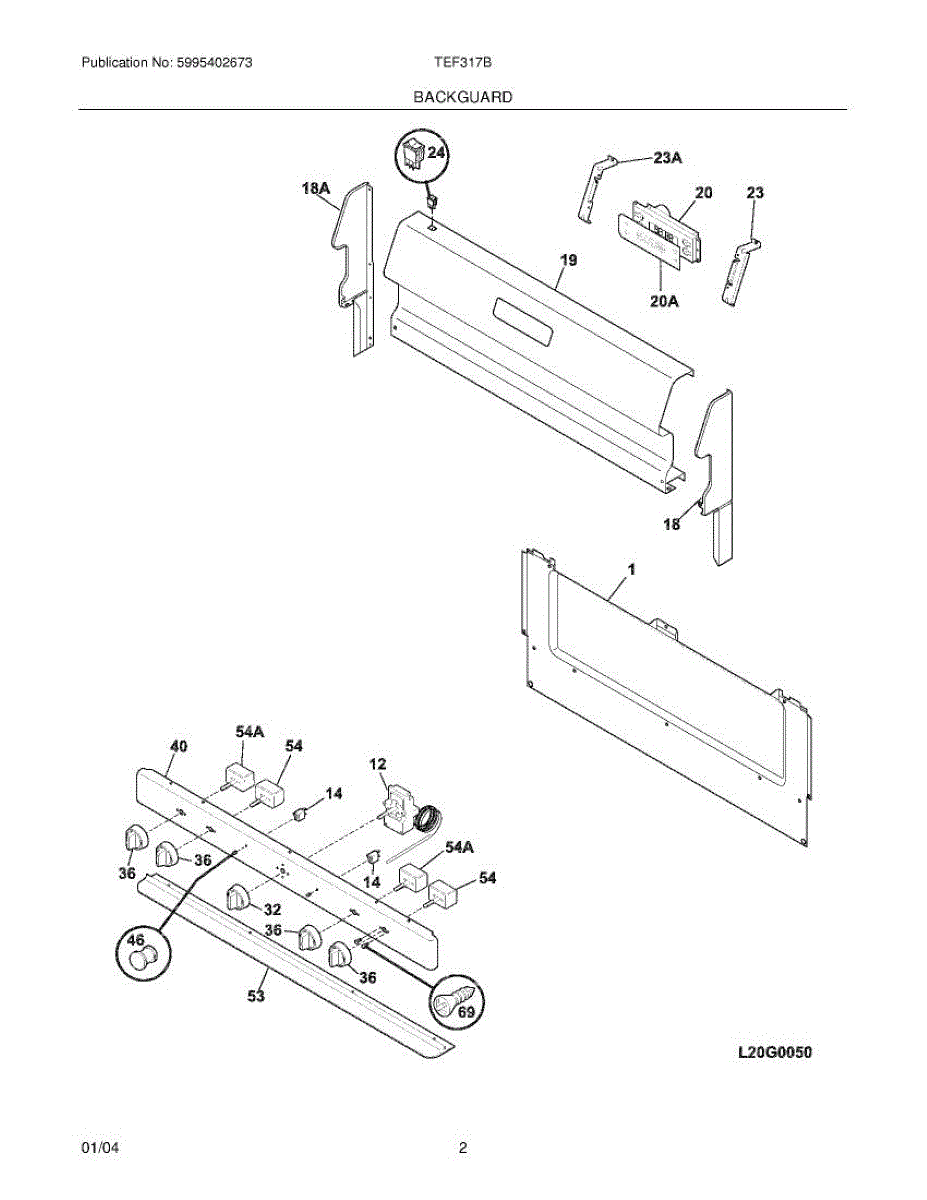

Parts for Tappan TEF317BWC: 03 - Backguard Parts

This temperature-activated limit thermostat is a safety switch for the range/wall oven that reacts to excessive heat to protect internal wiring and controls. Replacing a failed thermostat can restore reliable heating and reduce nuisance shutdowns during baking or self-clean.

• Monitors oven/cabinet temperature and switches its circuit at a calibrated threshold to protect components
• Failure symptoms can include: no bake or broil heat, oven shutting off mid-cycle, or loss of heat after a self-clean cycle
• On some models, a failed thermostat may also affect the cooling fan (not running or running unexpectedly)
• Can be checked with a continuity test per your model's tech sheet

• Disconnect power at the breaker and let the appliance cool completely before service
• Location varies by model; commonly mounted to the rear of the oven cavity, upper plenum, or behind the back panel
• Photograph wiring and transfer leads one at a time; reuse original mounting hardware/orientation
• Never bypass a safety thermostat; replace only with the specified part number

250V.

Color: Black

Color: Black

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Indicator Light Lens is an OEM part for Frigidaire ranges and cooktops. It is designed to cover and protect the indicator light bulb, which signals when a burner is turned on or if the cooktop is still hot after use. This small component ensures that the light is visible and diffused properly, helping to prevent accidental burns or other safety issues.

Symptoms of a failing Indicator Light Lens include:

• Cracking or damage to the lens that impairs visibility
• Discoloration that makes it hard to tell if the light is on
• The lens becoming loose or falling off
• The light appearing overly bright or unfiltered

Causes of a bad indicator light lens typically involve high heat exposure, which can lead to cracking or warping, or accidental impacts during cleaning or use.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Surface Unit Switch Kit is an OEM part for Frigidaire ranges. It controls the power and heat levels to the surface burners on the cooktop, allowing you to adjust the temperature for cooking. This kit typically includes the necessary components to replace a faulty switch and restore proper functionality to the burners.

Causes of a bad surface unit switch can include electrical malfunctions, wear and tear from regular use, or damage due to spills or impacts. A faulty switch can prevent the burner from heating correctly or at all.

Symptoms of a bad surface unit switch include:

• Burners not heating up or heating unevenly
• Inability to adjust the burner temperature
• Burners not turning on or off properly
• Sparks or electrical odors near the switch

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Surface Unit Switch Kit is an OEM part for Frigidaire ranges. It controls the power and heat levels to the surface burners on the cooktop, allowing you to adjust the temperature for cooking. This kit typically includes the necessary components to replace a faulty switch and restore proper functionality to the burners.

Causes of a bad surface unit switch can include electrical malfunctions, wear and tear from regular use, or damage due to spills or impacts. A faulty switch can prevent the burner from heating correctly or at all.

Symptoms of a bad surface unit switch include:

• Burners not heating up or heating unevenly
• Inability to adjust the burner temperature
• Burners not turning on or off properly
• Sparks or electrical odors near the switch

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
