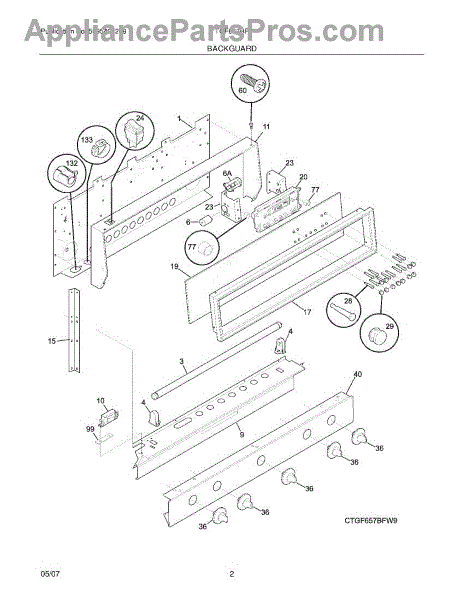

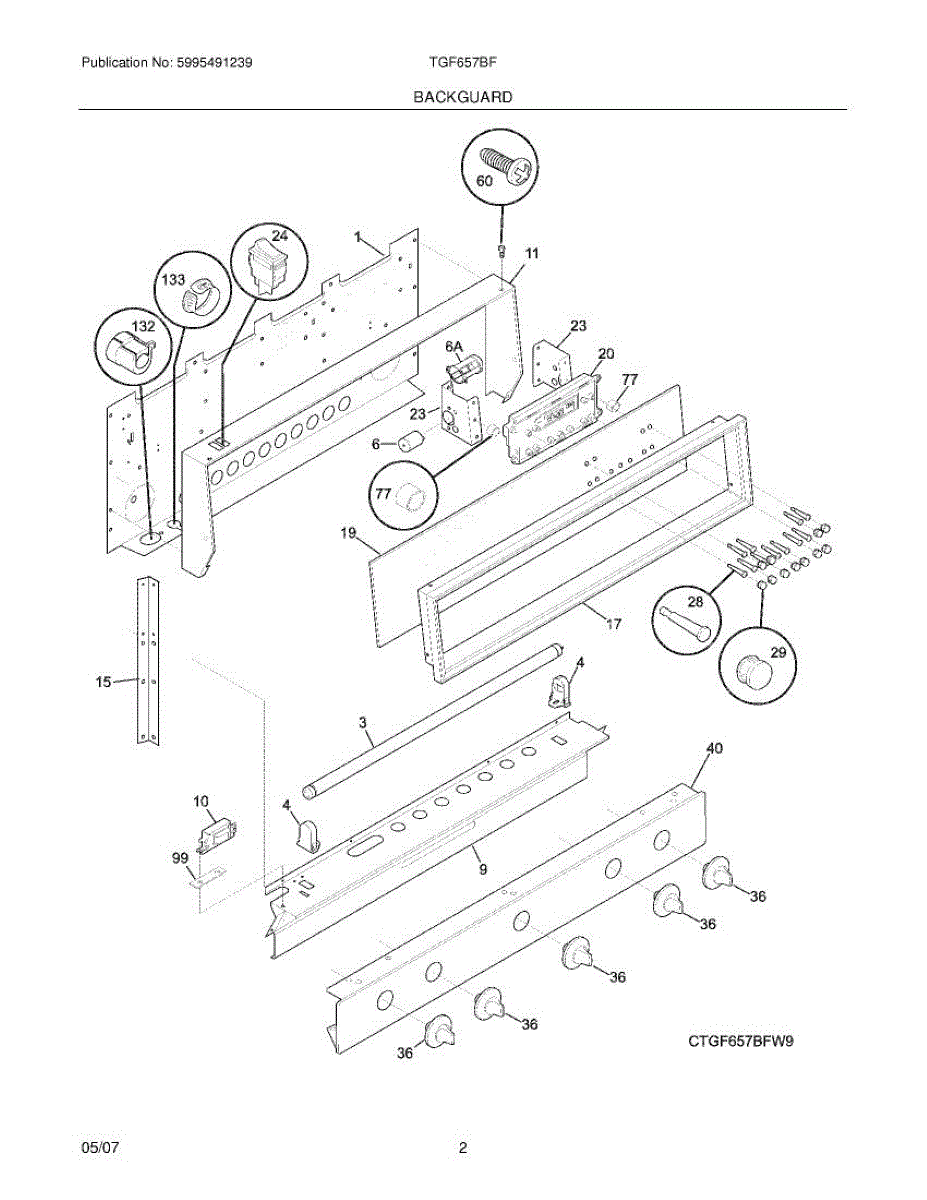

Parts for Tappan TGF657BFU5: 03 - Backguard Parts

Range won't power on or burners not heating? This terminal block receptacle restores electrical connections. Moderate DIY repair, typically 30-45 minutes.

Wrapper trim piece for your range. Installs around the cooktop or control area. Replace if cracked, chipped, discolored, or missing for a complete look.

This decorative door trim restores the finished look around a range or oven door and hides gaps or mounting hardware for a clean appearance. It's a direct-fit replacement that helps maintain your appliance's original styling. What it does:

• Covers and protects the edge of the oven/range door for a finished appearance
• Hides exposed screws, gaps, or worn factory edges
• Helps prevent dirt buildup around the door perimeter
• Useful when original trim is cracked, dented, or missing

• One decorative door trim

• Remove power to the appliance and allow surfaces to cool before beginning
• Installation typically requires removing the door or outer panel to access fasteners
• Keep all screws and mounting clips to reinstall the trim securely

This electronic control board manages your oven's timing, temperature settings, and display functions. It processes user inputs and controls heating elements, fans, and other oven operations according to selected cooking modes. Replace this board if the oven won't heat, the display shows error codes, or cooking functions don't work properly.

The range timer knob shaft is the rotating rod that connects the timer control knob to the internal timer mechanism behind the control panel. Replace when the timer knob spins freely without engaging, feels loose, or the timer won't advance properly.

This control knob is the user interface dial that lets you select settings on your range or cooktop, restoring simple, reliable control of heat and oven functions. It's a direct-fit replacement when the original knob is cracked, loose, or missing. What it does:

• Replaces a worn, cracked, or missing control knob so you can securely set temperature and function positions.
• Provides a positive grip and clear pointer for accurate selection of burners or oven modes.
• Restores tactile feedback and detent positions for safe, predictable operation.
• Helps stop unintended knob movement that can lead to incorrect settings or heat levels.

• One control knob (single knob)

• Pull the old knob straight off the valve/stem; align the new knob's splines with the stem and push until fully seated.
• If knob resists, verify correct orientation of splines—do not force to avoid damaging the valve stem.
• Disconnect power/gas or follow manufacturer safety instructions for your appliance before attempting repairs.

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

Replace your worn or missing range spacer to restore proper component alignment and spacing. This small plastic part maintains correct clearances inside the unit.

Strain relief retainer secures electrical cables at the cooktop connection point. Replace if cracked, broken, or missing to protect wiring integrity.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
