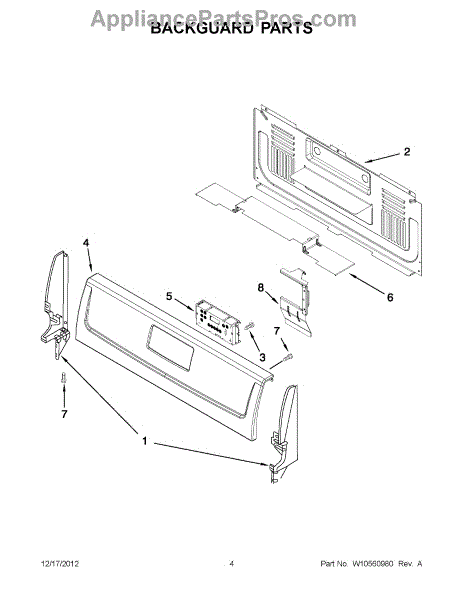

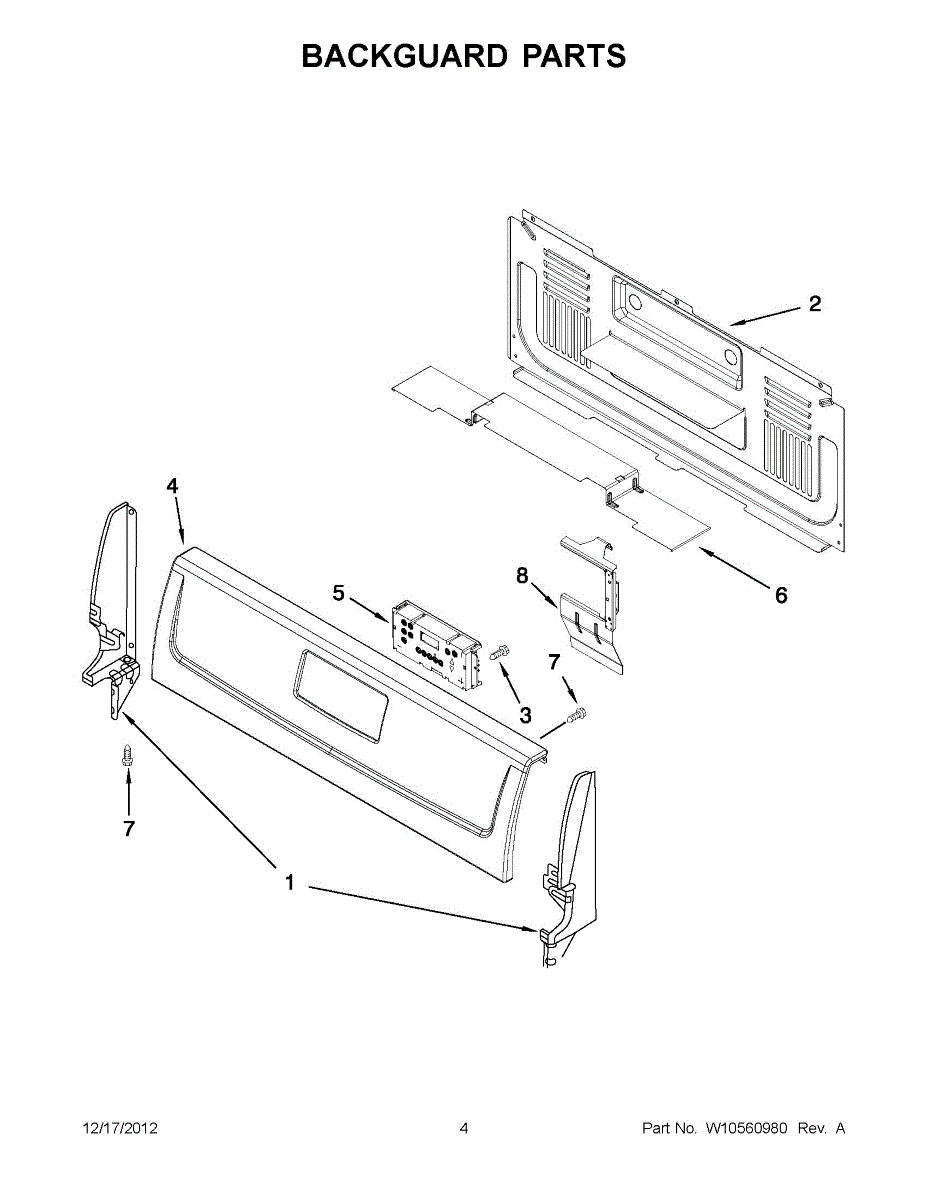

Parts for Whirlpool WFG114SWT1: 02 - Backguard Parts

Color: Biscuit. Left hand side. For right hand use 98008275. For white use 98005336. For black use 98004632.

Color: Biscuit. Right hand side. For left hand use 98008274. For black use 98004633. For white use 98005337.

Color: Black. Left hand side. For right hand use 98004633. For biscuit use 98008274. For white use 98005336.

Color: Black. Right hand side. For left hand use 98004632. For biscuit use 98008275. For white use 98005337.

Color: White. Left hand side. For right hand use 98005337. For biscuit use 98008274. For black use 98004632.

Color: White. Right hand side. For left hand use 98005336. For black use 98004633. For biscuit use 98008275.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

This electronic control board manages oven functions and user controls, restoring timed bake, broil and display responsiveness for compatible gas ranges. Replaces a failed control assembly to regain reliable control and programming. What it does:

• Interprets user inputs and runs oven cycles, temperature control and timed functions
• Sends signals to igniter, gas valve and bake/broil elements to start heating
• Powers and updates the front display and control panel feedback
• Commonly replaces boards that cause unresponsive buttons, error codes, or no heating

• One electronic control board

• Disconnect power (and turn off gas supply on gas ranges) before beginning service
• Handle the board by its edges; avoid static discharge and moisture
• Secure all connectors and mounting hardware

Electronic control board that manages oven functions and the user interface, restoring proper control and predictable oven cycles when the original control fails. Fits the main console control location on affected gas ranges. What it does:

• Controls bake, broil, timers, clock and user-pad inputs for the oven console.
• Communicates with sensors and ignition systems to start and regulate bake/broil cycles.
• Common symptoms of a failing board: unresponsive or blank display, incorrect or erratic cycle behavior, or oven not heating despite correct settings.
• Faulty boards can cause intermittent operation or failure of the oven control functions.

• Always disconnect power at the breaker (and shut off the gas supply on gas ranges) before servicing.
• Handle the board by the edges and avoid static discharge; use an anti-static strap if available.
• Verify matching part number before installation; confirm harness connectors align and seat fully.

This electronic control board is the "brain" of the dishwasher, coordinating cycle timing and powering key components. Replacing a failed board can restore normal operation when the unit won't start, stops mid-cycle, or behaves erratically. What it does:

• Manages cycle timing and sequences based on selected options
• Distributes power to the circulation pump, drain pump, water inlet valve, heater, and dispenser
• Monitors inputs from sensors and the door switch to advance/complete cycles
• Faults can present as unresponsive controls, won't start/finish cycles, random resets, or error codes

• 1 electronic control board

• Disconnect power at the breaker before servicing; shut off water supply if accessing the lower compartment
• Use anti-static precautions; handle by the edges and avoid touching connector pins
• Access location varies by model; photograph wiring and transfer one connector at a time
• After installation, run the dishwasher's diagnostic/service cycle to verify operation

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

Right hand side. For left hand use 98018144

Left hand side. For right hand use 98018143.
