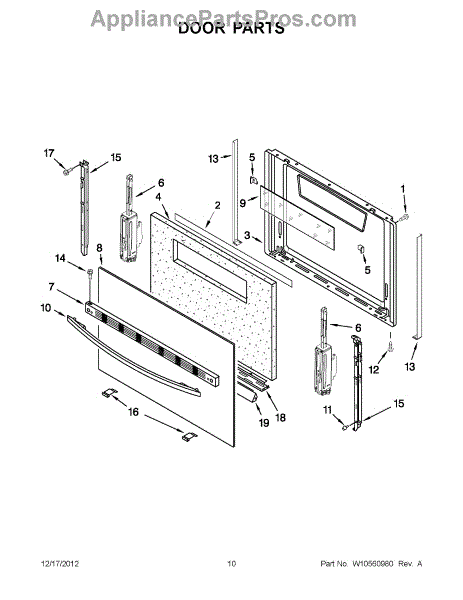

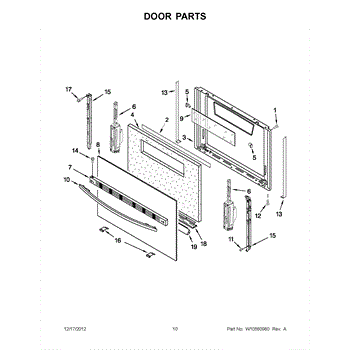

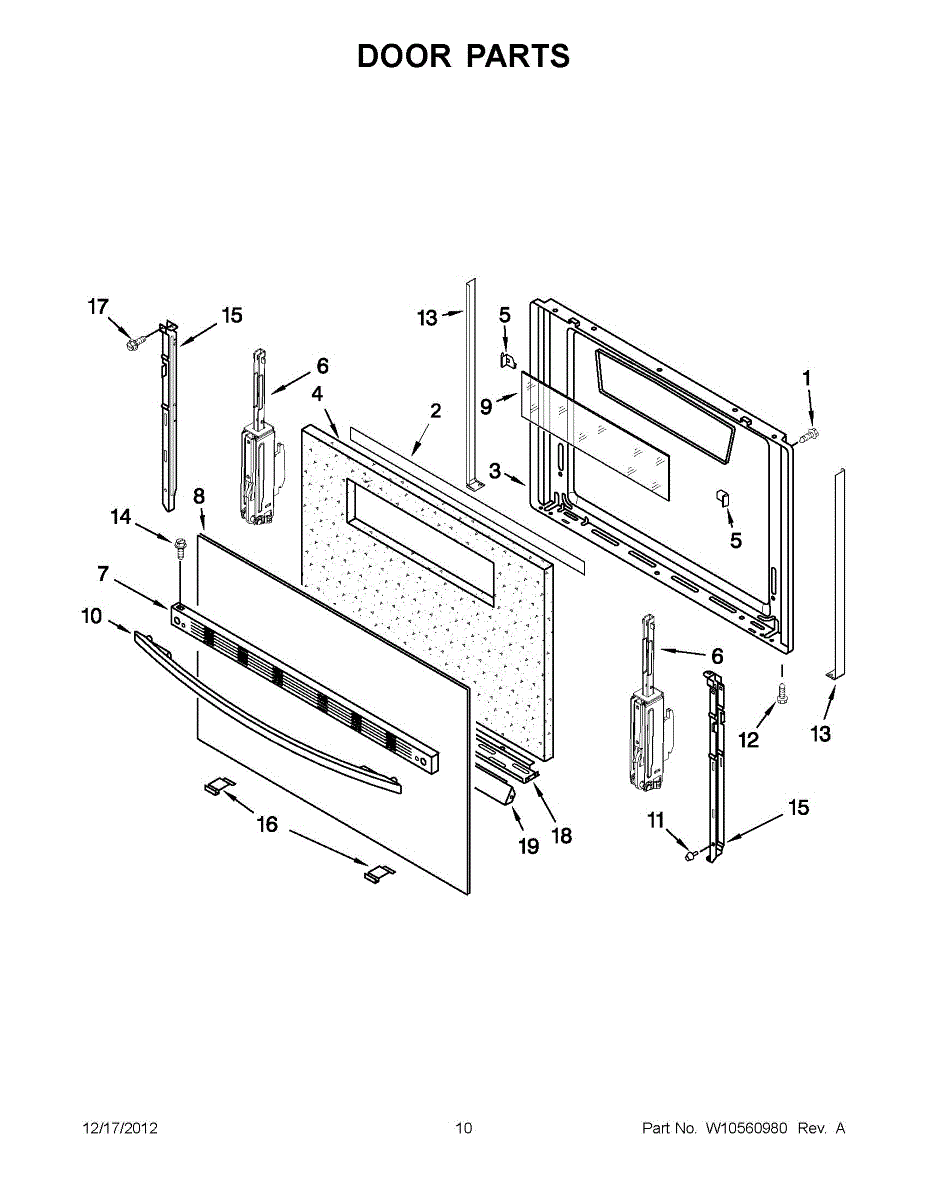

Parts for Whirlpool WFG114SWT1: 05 - Door Parts

This screw secures appliance components such as panels, brackets, and internal assemblies to the cabinet or frame. Replacing worn or missing hardware restores a tight fit, reduces vibration, and helps prevent damage from loose parts.

• Fastens and stabilizes parts to maintain proper alignment
• Helps eliminate rattling or vibration from loose panels/brackets
• Replaces missing or stripped hardware during repairs
• Supports proper reassembly after service

• Disconnect power before service; turn off water supply
• Match the original screw's location; replace like-for-like length and thread
• Start threads by hand to avoid cross-threading; use the correct driver/bit
• Tighten snugly; do not overtighten, especially into plastic

Right hand side. For left hand use 98004952

Left hand side. For right hand use 98004953

Color: Biscuit. For white use WP98017767W. For black use WP98017767B

Color: Black. For biscuit use 98017767T. For white use WP98017767W

Color: White. For black use WP98017767B. For biscuit use 98017767T.

Color: Biscuit. Outer door glass. For white use WP98017961W. For black use WP98017961B.

Color: White. Outer door glass. For black use WP98017961B. For biscuit use WP98017961T

Color: Black. Outer door glass. For white use WP98017961W. For biscuit use WP98017961T

This inner oven door glass is the replacement glass panel that restores the door's appearance and helps keep heat inside the oven. Designed to fit behind the outer door and return your oven to safe, normal operation. What it does:

• Replaces cracked, chipped, or shattered inner door glass that can affect visibility or let debris enter the door cavity
• Stops rattling or loose vibration caused by broken or missing inner glass
• Restores a sealed inner surface so the door assembly functions as intended
• Improves oven appearance when the inner glass is scratched or clouded

• High-level task: remove the oven door and disassemble the door panels to access and replace the inner glass; follow your oven's service manual.
• Use gloves and eye protection — glass edges can be sharp.
• Handle the glass on a soft, stable surface to avoid scratches or breakage.

Color: Black. For white use WP98017790W. For biscuit use98017790T

Color: Biscuit. For black use WP98017790B. For white use WP98017790W.

Color: White. For biscuit use 98017790T. For black use WP98017790B.

Small rubber bumper that cushions appliance components to reduce noise, prevent metal-on-metal contact, and protect finishes; replaces worn or missing bumpers to restore quiet operation and prevent damage. What it does:

• Absorbs shock and vibration to stop rattling or buzzing
• Prevents doors, drawers or panels from banging or scraping
• Protects painted and metal surfaces from wear and chipping
• Helps restore proper spacing and alignment of moving parts

• Always disconnect power to the appliance before servicing
• Typically installs by pressing into a mating hole or seating on a flat surface; some applications use adhesive
• Inspect mating surface for damage or debris and replace any additional worn bumpers for even contact

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

Color: Black. Left hand side. For right hand side use 98016795B. For white use 98016787W. For biscuit use 98016787T.

Color: Black. Right hand side. For left hand side use 98016787B. For white use 98016795W. For biscuit use 98016795T.

Color: White. Right hand side. For left hand side use 98016787W. For black use 98016795B. For biscuit use 98016795T.

Color: White. Left hand side. For right hand use 98016795W. For black use 98016787B. For biscuit use 98016787T.

Color: Biscuit. Right hand side. For left hand use 98016787T. For white use 98016795W. For black use 98016795B.

Color: Biscuit. Left hand side. For right hand side use 98016795T. For white use 98016787W. For black use 98016787B.

Color: White. For black order WP98008545. For biscuit order 98008169.

Right hand side

Left hand side

Color: Biscuit. One trim piece per package. For black use WP98010187. For white use WP98010185.

Color: White. One trim piece per package. For black use WP98010187. For biscuit use 98010184.

Color: Black. One trim piece per package. For white use WP98010185. For biscuit use 98010184.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

This door pin secures a door to its hinge assembly so the door opens and closes on a fixed pivot. It replaces a worn or broken hinge pin to restore proper door alignment and movement. What it does

• Acts as the pivot point that lets the door swing smoothly on its hinge.
• Helps keep the door aligned and prevents sagging or off-track movement.
• Commonly replaced when the door falls, binds, or makes grinding noises during operation.
• Small part but critical for maintaining a secure, stable door connection.

• One door pin.

• Disconnect power to the appliance before servicing to avoid electrical or injury risk.
• Remove the door or open it per the manufacturer's service instructions to access the hinge area.
• Use hand tools; keep screws, clips, or washers organized so they are reinstalled in the correct order.
• Handle glass doors and sharp edges with care.
