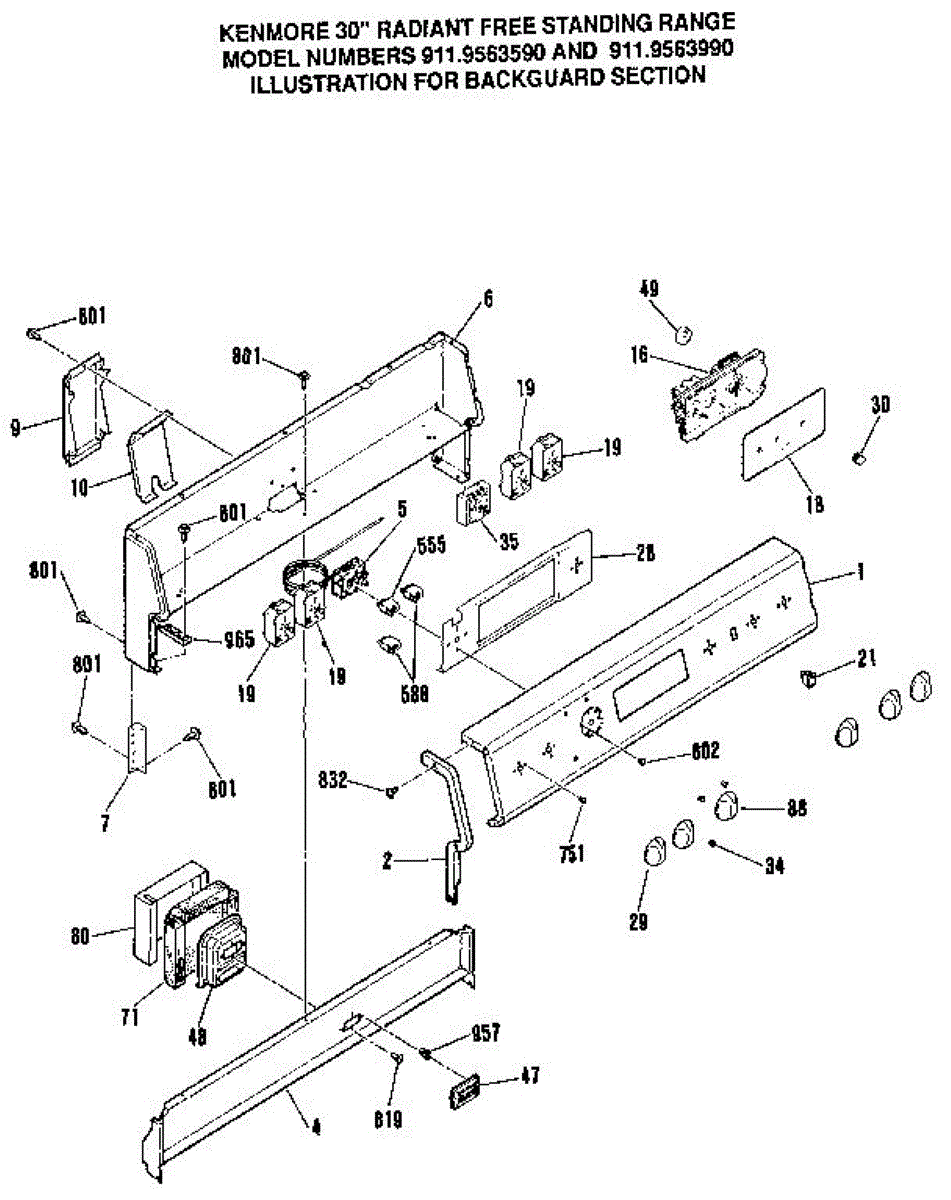

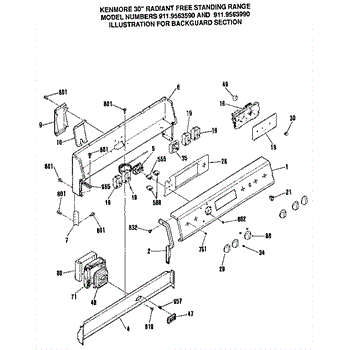

Parts for Kenmore 911.9563990 (9119563990, 911 9563990): Backguard Section Parts

8" element switch

6" element switch

This is a black rocker switch used to control a function on compatible ranges/cooktops. Replacing a worn or inoperative switch restores positive on/off control and reliable operation of the connected feature.

• Controls an appliance function (such as a light or igniter circuit) with a single on/off action
• Common failure signs: switch won't stay on, no response when toggled, intermittent operation, or physical damage/discoloration
• Direct-fit replacement designed for the original switch location
• Helps restore safe, predictable control to the appliance

• Disconnect power and, if applicable, shut off gas before servicing
• Access is typically from the control panel; retain orientation of wires and note terminal positions
• Transfer wires one at a time to the new switch to avoid miswiring
• Inspect connectors for heat damage; replace damaged terminals before reassembly

Indicator light lens covers and diffuses the panel light on your range or oven. Replace when cracked, discolored, or missing to restore visibility.

Oven indicator light not working? This control panel lamp shows when heating elements are active. Simple DIY fix restores visual status feedback.

Range indicator light shows when your oven is heating or in operation. Replace if the light fails to illuminate or stays on constantly. Verify fit with your model.

ST10-16 X 7/16"

Replacement screw for securing panels, trim, and mounting brackets on appliances. Use when original fastener is lost, stripped, or damaged.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Nickel

Nickel
