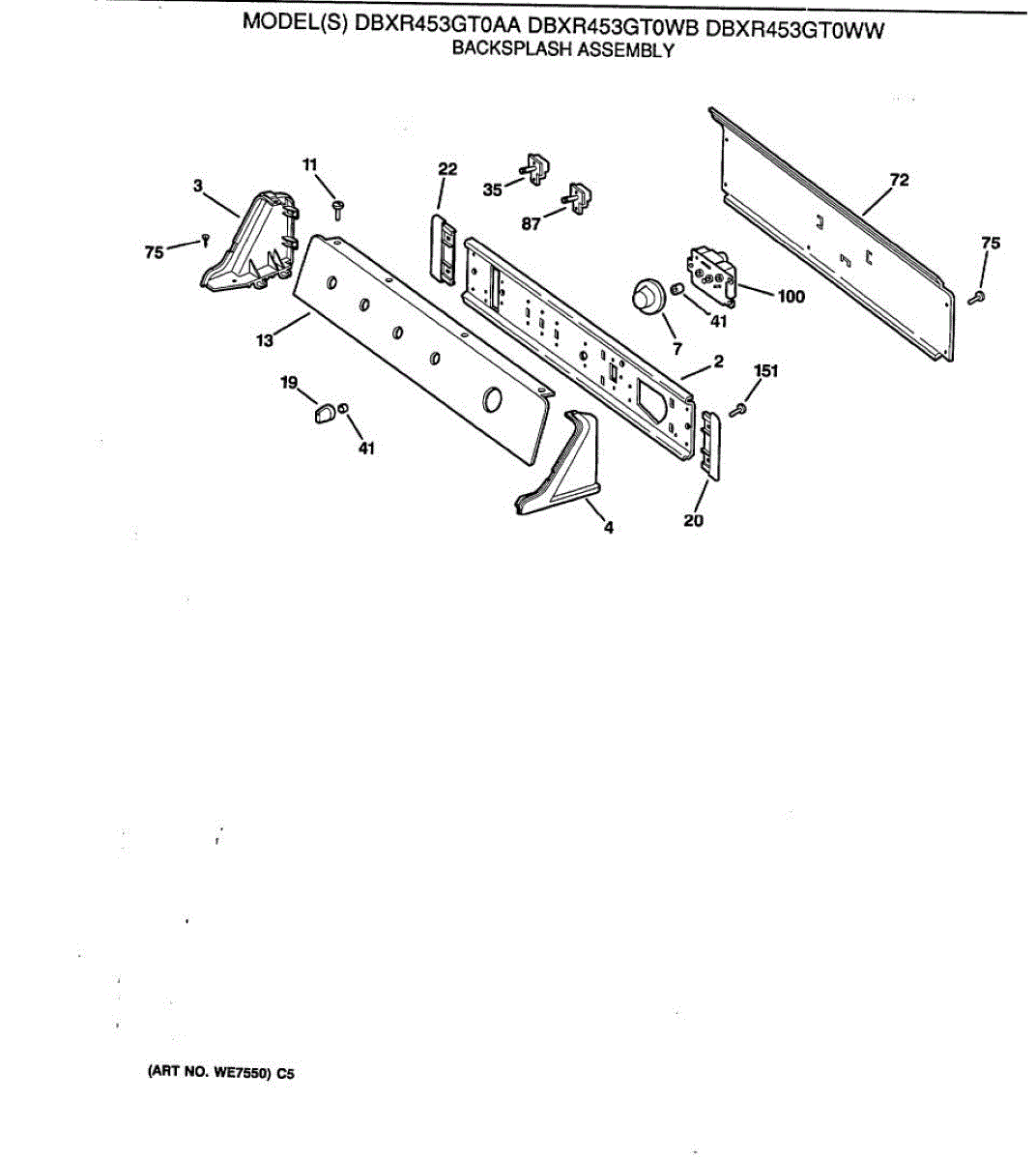

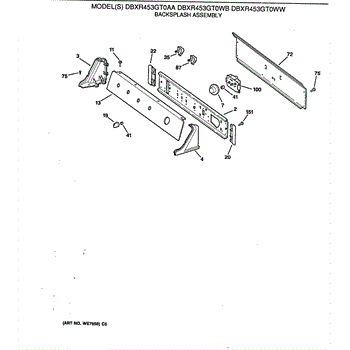

Parts for Ge DJSR473GT0WW: 01 - Backsplash Assembly Parts

Snow white. Left hand

Snow white. Right hand side

The Timer Knob is an OEM part for GE dryers. It is a component that allows users to select and control the drying cycles and settings on their dryer. Designed with durability and ease of use in mind, this knob fits directly onto the timer shaft, providing a reliable interface for setting the dryer's timer.

Over time, the timer knob can become worn or damaged due to frequent use or accidental impacts. A malfunctioning knob may not engage properly with the timer shaft, making it difficult or impossible to set the dryer cycle.

Symptoms of a bad Timer Knob include:

• Difficulty in turning the knob or setting the dryer timer
• The knob slipping or failing to engage with the timer shaft
• Cracks or breakage on the knob itself

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

8 - 18 ab flt 5/8 sn wh

The Control Knob and Clip is an OEM part for GE washing machines and dryers. It attaches directly to the control shaft and is used to set the machine's cycles and settings. This knob allows for easy adjustment of washing or drying operations, making it a user-friendly interface for managing the appliance's functions.

Symptoms of a bad Control Knob and Clip include:

• The knob failing to engage the control shaft, resulting in no response when turned.
• Cracks or breaks in the knob, making it difficult to grasp or turn.
• The knob slipping or spinning freely without changing settings, indicating that the clip may be worn or broken.

Causes of a bad control knob and clip can include physical damage from excessive force, wear and tear from frequent use, or degradation of the materials due to age or environmental factors.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Rotary Start Switch is an OEM replacement part for GE dryers It is responsible for initiating the dryer's operation when the user turns the knob to the desired cycle and presses the start button. The rotary start switch is typically located on the control panel of the dryer, where the user interacts with the various settings and functions.
The GE dryer rotary start switch can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This part fixes the following symptoms:

• The dryer not starting or responding when the start button is pressed
• The start button feeling loose or not engaging properly
• The dryer starts intermittently or only when the start button is held down
• The dryer starts but immediately stops once the start button is released
• The start switch becomes unresponsive or difficult to turn
• The dryer not cycling through the different drying modes or settings

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement part is a screw, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. This screw is compatible with many different areas of the appliance. Screws are generally used for keeping parts of the machinery secure and in place during use. It is possible that screws can become loose over time and need to be replaced after years of normal wear and tear.A new screw might be needed if the user notices parts of the appliances are becoming loose or are even falling off. This can be due to screws becoming stripped over time or if the appliance is bumped during transport. The repair for this part is simple. Remove the old screw and replace it with a new part. The only tools needed for this repair are a screwdriver and possibly pliers if the damaged screw is stuck in place.This screw is sold individually and is a genuine OEM replacement part sourced from the manufacturer.

This timer controls the drying cycle by advancing through settings and routing power to the motor and heater. Replace a worn timer if the cycle won't advance, runs indefinitely, or stops unexpectedly on certain selections.

• Advances the dryer through timed/auto cycles and sets overall cycle length
• Directs power to motor and heater according to the selected program
• Coordinates cycle start/stop and end-of-cycle shutoff
• Failure symptoms include: timer not advancing, dryer runs but won't shut off, stops mid-cycle, or won't start on certain settings

• Disconnect power before servicing
• Access the timer from the control panel; retain and reuse original mounting screws
• Move wires to the new timer one at a time; label or photograph connections for reference
• Reassemble and test all cycle selections for proper advance and shutoff

Includes 12 screws. Size: 8-18 ab.

The Lint Chute Assembly is an OEM replacement part for GE dryers. This component plays a crucial role in capturing and collecting lint and other debris from the drying process, ensuring efficient airflow and preventing potential fire hazards.

Symptoms of needing to replace the lint chute assembly include:

• Reduced airflow or poor drying performance
• Visible lint buildup or clogging in the chute or exhaust area
•  Overheating or excessive heat buildup within the dryer
• Unusual noises or vibrations during the drying cycle

Causes of a faulty lint chute assembly can include normal wear and tear over time, clogging due to excessive lint accumulation, or physical damage due to improper cleaning or maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dryer models.
