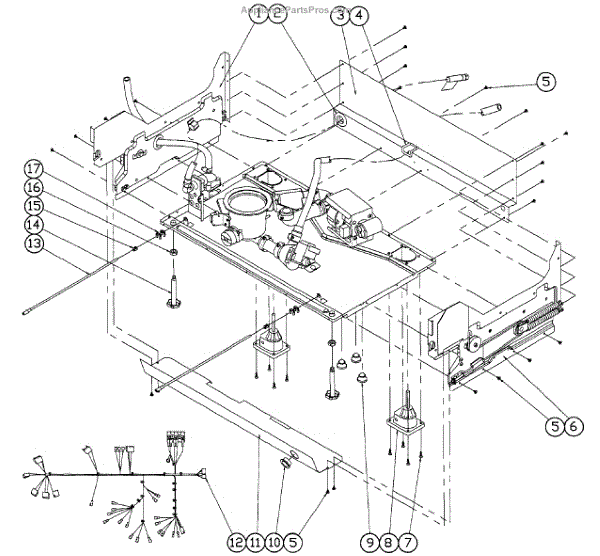

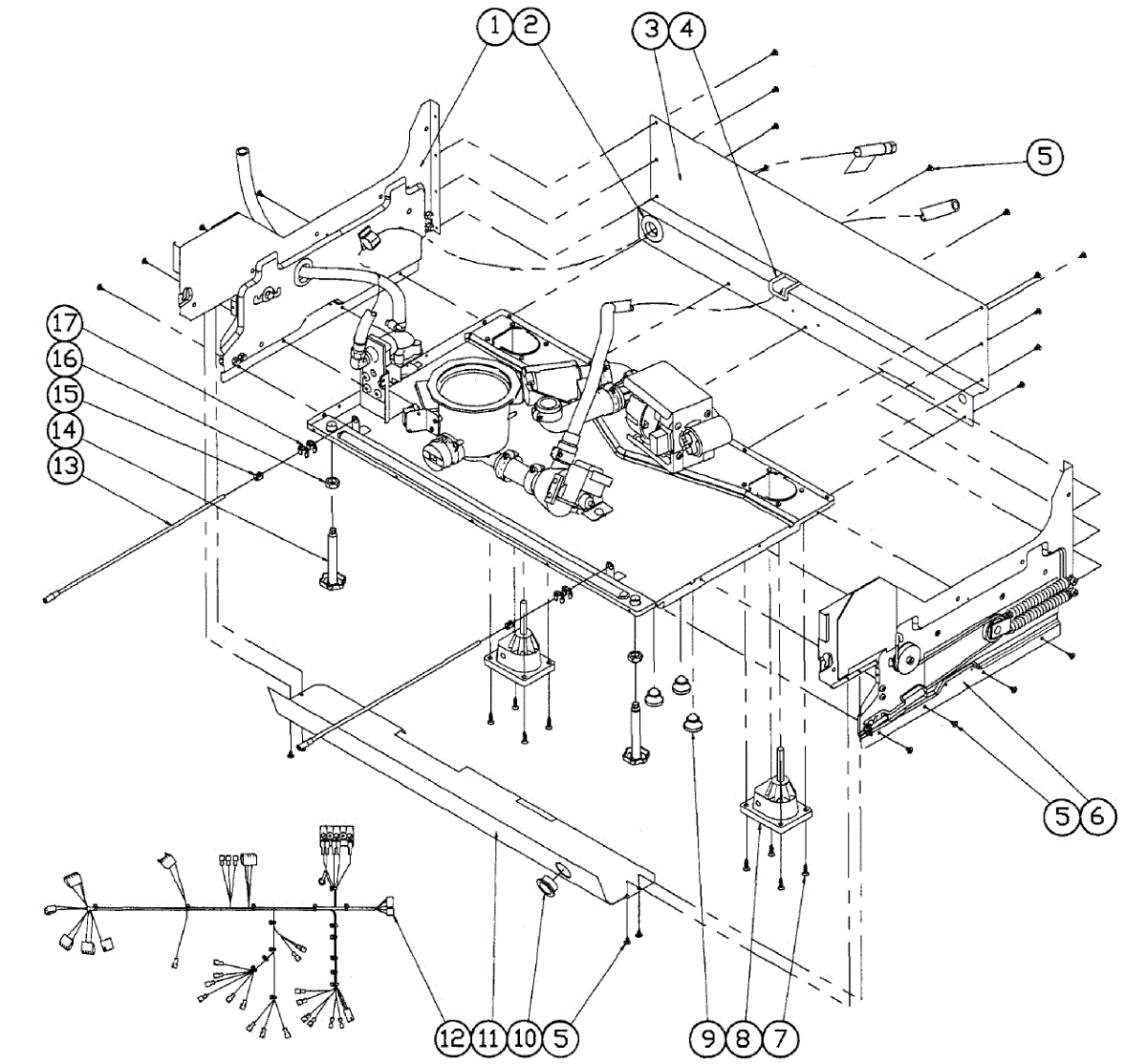

Parts for Dacor ED30SCP: Base Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

This service back cover is the rear access panel that protects internal dishwasher components and wiring, helping keep electronics and connections enclosed and shielded from debris and moisture during normal use. What it does:

• Covers and protects control boards, wiring harnesses, and internal components at the rear of the appliance
• Prevents loose debris and splashes from contacting sensitive parts
• Helps reduce rattling by securing rear-area components and openings
• Restores the cabinet's rear appearance when the original panel is damaged or missing

• One service back cover / rear access panel

• Disconnect power and turn off the water supply before starting any repair
• Typically requires removing the kickplate or access panels and a few screws; handle edges carefully to avoid cuts
• Inspect mounting tabs and screws for damage and replace any fasteners as needed

This trim lock secures the dishwasher drain hose and surrounding trim to help keep the hose routed and sealed at the cabinet opening. It prevents rubbing and helps maintain a tidy, leak-resistant hose path. What it does:

• Holds the drain hose in place at the cabinet/chassis opening to prevent hose movement or chafing
• Helps maintain a proper hose seal to reduce the chance of leaks under the sink or dishwasher
• Keeps trim and hose aligned for correct routing and quieter operation
• Common symptom: hose slipping, chafing, or visible gap at the trim opening

• Disconnect power and water supply before starting any repair
• Remove the dishwasher access panel or kickplate to reach the drain hose area
• Re-seat hose and fasten the trim lock; use basic hand tools only
• After installation, restore power/water and run a short drain cycle; check for proper routing and leaks

Factory wafer-head Phillips screw (#8 x 3/8 in) secures panels, brackets, and covers. Replace missing, stripped, or damaged screws for proper alignment.
