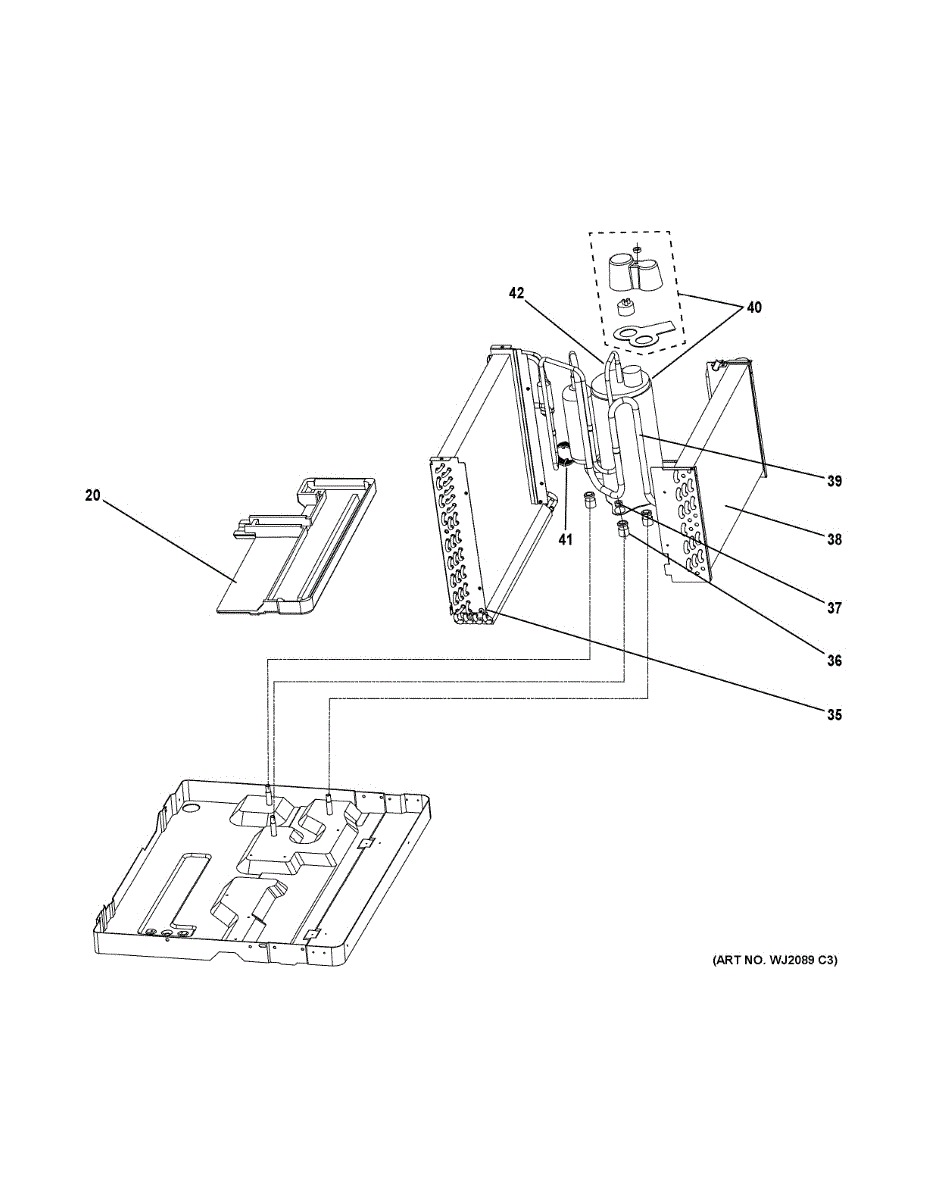

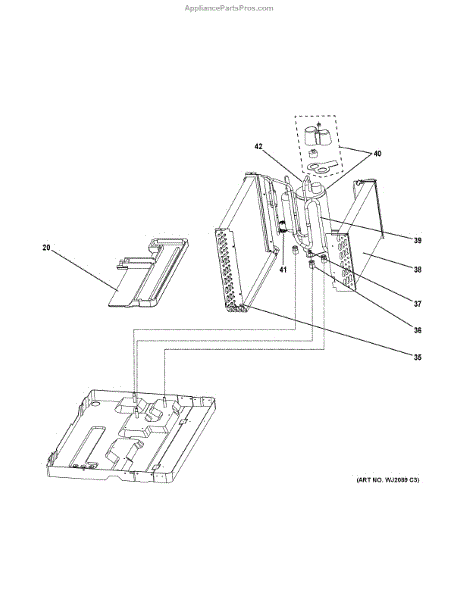

Parts for Ge AJCQ08ACGL2: Base Pan & Unit Parts

Replacement drain tray for room air conditioners. Collects condensation beneath the unit. Replace if cracked, warped, or missing to prevent leaks.

This discharge tube routes condensate and defrost water from the refrigerator/freezer evaporator to the drain pan, helping prevent leaks and puddling under the appliance. installs as a direct replacement for the factory tube. What it does

• Channels defrost/condensate water away from the evaporator to the drain pan.
• Helps prevent water pooling or dripping inside or beneath the cabinet.
• Can reduce ice buildup around the evaporator area when functioning properly.
• Works with refrigerator drain system components to maintain normal defrost drainage.

• Disconnect power to the appliance before beginning any work.
• Remove food and shelves as needed for safe access; support doors/panels while removing fasteners.
• Inspect and replace any clamps or grommets if damaged; ensure tube seats securely in drain fittings.
• After installation, restore power and run a short test (advance defrost or pour small amount of water into evaporator drain) to confirm proper routing and no leaks.
