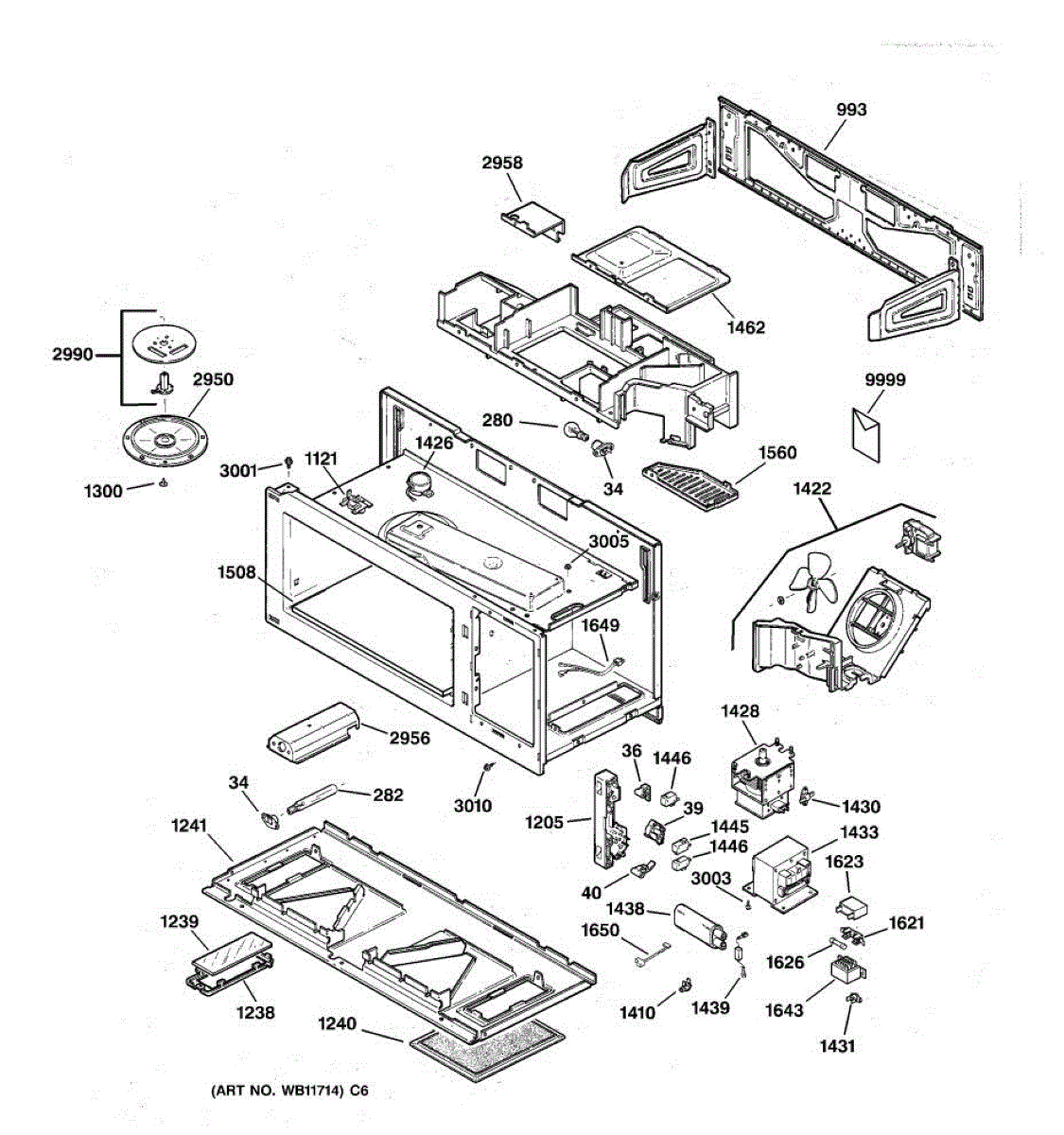

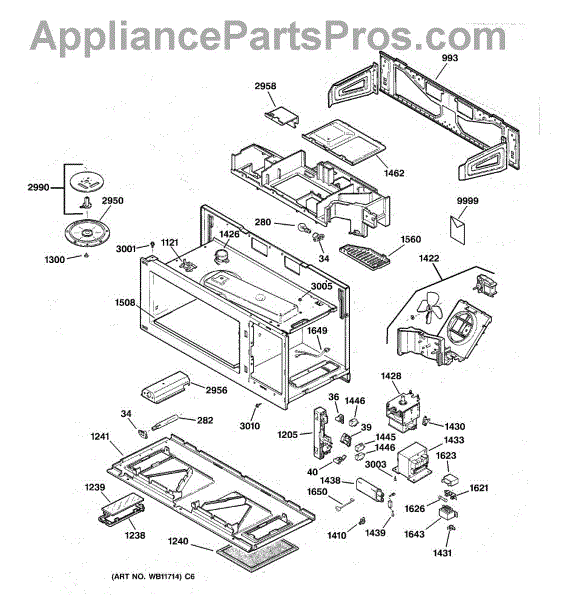

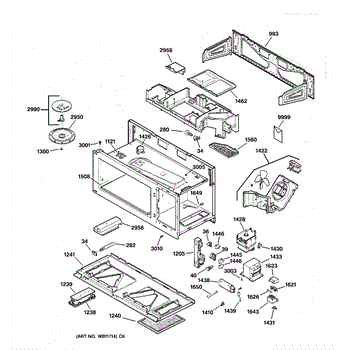

Parts for Ge JVM1330BW04: 02 - Base, Stirrer & Electronics Parts

Holds the light bulb securely in your microwave for proper interior illumination. Replace if bulb won't stay in place, socket is burned or cracked.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Replacement glass lens cover for microwave interior or cooktop lights. Protects bulb from food splatters. Needed when cracked, broken, or shattered.

Grease filter for range hoods and over-the-range microwaves. Dimensions: 7-3/4" x 9-1/16" x 3/32" (7.75 x 9.0625 x 0.09375). Rectangle shape. Captures grease from cooking air. Replace when clogged, discolored, or every 6-12 months.

This black bottom plate restores the appliance's lower base cover, protecting internal components and improving appearance. It replaces a damaged or missing lower plate to help keep debris out of the appliance cavity. What it does:

• Covers and protects the appliance's lower/internal area from dust, debris and accidental contact
• Restores finished look to the appliance's base when the original plate is cracked, warped, or missing
• Helps maintain proper airflow path around lower panels (when used as designed)
• Reduces risk of small objects falling into internal components

• One black bottom plate

• Basic hand tools required; follow manufacturer's instructions for panel removal and reattachment
• Power off and disconnect the appliance before servicing to avoid electrical or mechanical hazards
• Handle carefully to avoid scratching painted surfaces; tighten fasteners securely but do not overtighten
• If fasteners or mounting clips are missing, obtain replacements specified by the manufacturer

This thermal fuse is a safety device designed to cut off power to the microwave if internal temperatures exceed safe limits. It is a small, inline fuse typically mounted near the magnetron or cavity. Replace this part if the microwave has completely stopped working with no display or response, especially after an overheating event.

Microwave not heating? The magnetron generates microwave energy for cooking. Common repair when unit runs but won't heat food. Moderate DIY difficulty.

Fixes microwaves with no power or that stop mid-cycle. This thermostat switch monitors temperature and protects against overheating. Simple repair.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

This is a monitor or interlock switch that detects whether the microwave door is properly closed before allowing the unit to operate. It is a safety device that shuts off microwave power if the door is open or if other door switches malfunction. Replace this switch if the microwave does not start, runs with the door open, or blows a fuse when the door is closed.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

Washered screw secures panels, brackets, and internal microwave components. Replace if screw is missing, stripped, or damaged to restore proper fit.

This part has been discontinued and is no longer available.

This is a top template designed for over-the-range microwave ovens. It serves as a guide or pattern used during installation to mark and drill mounting holes in the cabinet above the microwave. If your original template is lost or damaged, this replacement ensures accurate positioning for a secure installation.
