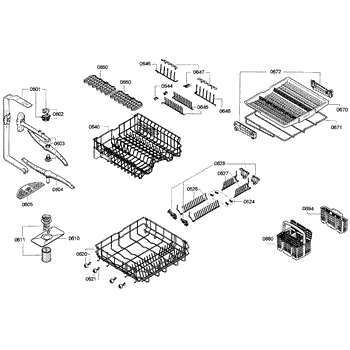

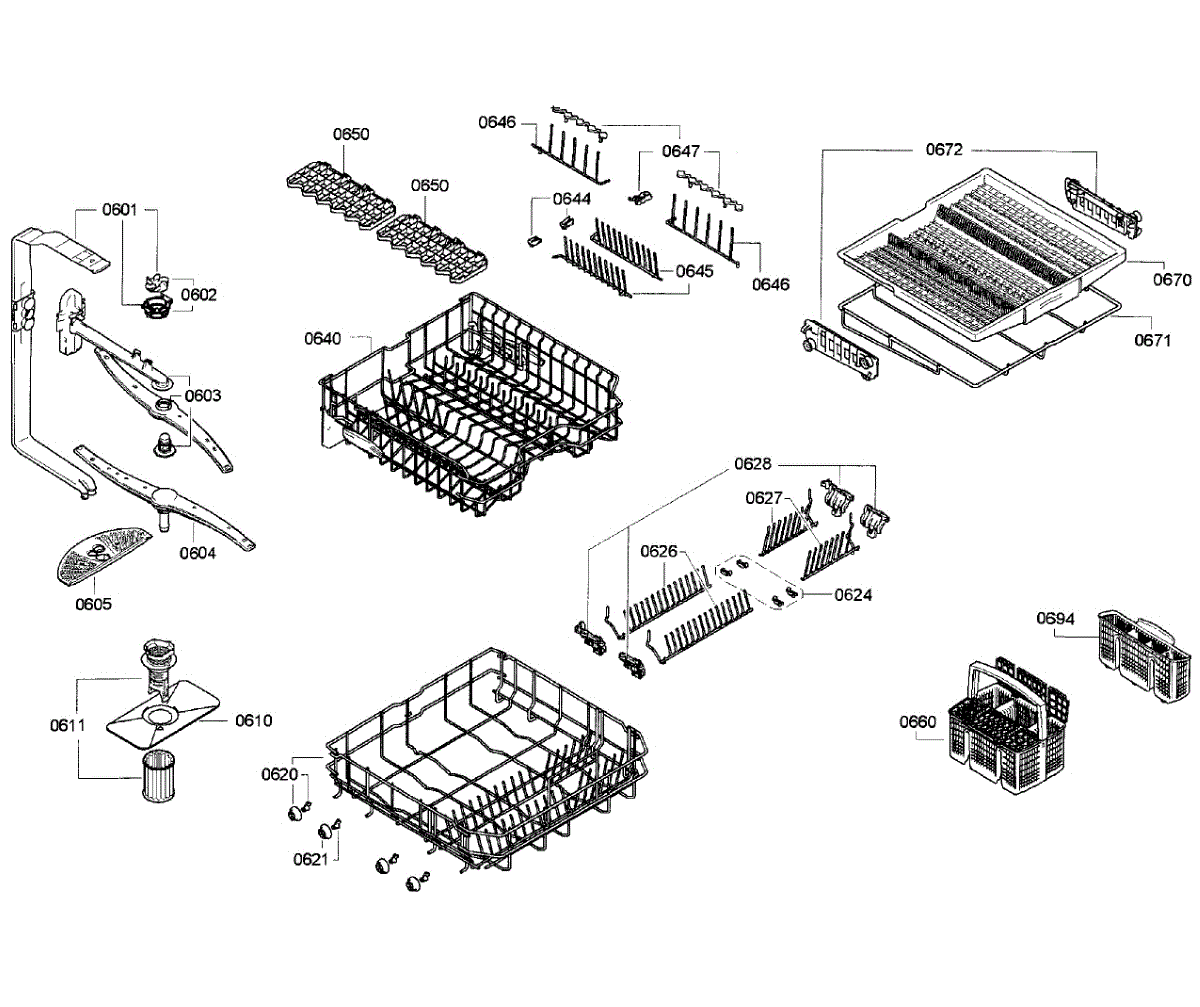

Parts for Kenmore 630.13023016 (63013023016, 630 13023016): Baskets Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This replacement tube connects and directs fluid or air between system components to restore proper routing and prevent leaks or malfunctions. It's a direct-fit service part when the original tube is cracked, clogged, or damaged. What it does

• Channels water or airflow between internal components to maintain normal operation.
• Restores proper routing when the original tube is cracked, split, or collapsed.
• Helps stop visible leaks or pooling under the appliance associated with a failed tube.
• Reduces risk of related component damage caused by diverted fluids.

• One replacement tube.

• Disconnect power and turn off the water supply before starting any repair.
• Verify correct orientation and seating; secure with factory clamps or hose clamps as required.
• Inspect adjacent connections and replace any worn seals or clamps to ensure a leak-free installation.
• After installation, restore power/water and run a short cycle to check for leaks.

The Shower is an OEM component designed specifically for Bosch dishwashers. It provides superior coverage and washing performance through its unique rotating arm and nozzle design. Causes of a bad spray arm and shower head include mineral deposits restricting spray patterns, cracked or broken assembly parts, or worn nozzles that no longer fully rotate.

Symptoms of a bad part include:

• Soil or food debris that isn't fully removed from crevices or hard to reach areas
• An arm that doesn't rotate smoothly during the cycle or gets stuck
• Cracks or breaks in the plastic that cause leaking or restricted spray patterns

This Bosch part can also be used on Thermador and Gaggenau appliances.

The Cover is an OEM part for Bosch dishwashers. It provides a protective barrier that shields internal components from damage and extends the life of the appliance.

The cover is exposed to heat, humidity, and debris during each wash cycle. Over time and repeated use, these conditions can cause cracks, warping or breakdown of the protective plastic material.

Causes of a bad cover include normal wear and tear, accidental dents or punctures, and exposure to excess heat or chemicals.

Symptoms of a cover needing replacement include:

• Visible cracks or holes that compromise the barrier
• Loose or sagging fit that allows internals to be exposed
• Warping or melting of the protective plastic shield

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Micro Pump Filter is an OEM part for Bosch dishwashers, designed to capture and prevent debris from entering the pump and circulating system of the dishwasher. This crucial component ensures that water remains clean throughout the wash cycle, protecting the dishwasher's internal components from damage due to particles and food residue.

Causes of damage to the micro pump filter often involve the accumulation of debris and food particles over time, which can lead to clogging or physical damage.

Symptoms of a bad Micro Pump Filter include:

• Poor cleaning performance, with particles left on dishes after a wash cycle
• Unusual noises coming from the dishwasher
• Water not draining properly

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Lower Dishrack Wheel is an OEM replacement part for Bosch dishwashers. These wheels are essential components that allow for smooth and effortless movement of the lower dishrack or basket in and out of the dishwasher tub.

Symptoms of needing to replace the lower dishrack wheels include:

• Difficulty in sliding the dishrack in or out
• Excessive noise or grinding sounds when moving the rack
• Visible damage, cracks, or worn-out wheels

Causes of faulty lower dishrack wheels can include normal wear and tear over time, exposure to debris or foreign objects that can cause damage, or issues with the track or rail system on which the wheels operate.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

This genuine replacement bearing supports the washer drum for smooth, stable rotation and helps reduce noise and vibration caused by worn or damaged bearings. Restores proper drum alignment for quieter operation. What it does:

• Supports the inner drum so it spins smoothly and stays aligned
• Reduces grinding, rumbling, squeaking or knocking noises from the drum
• Helps prevent excessive drum wobble that can damage seals or the tub
• Used when worn bearings cause rough rotation, metal-on-metal noise, or visible drum play

• Disconnect power (and water if applicable) before starting any repair
• Replacing this bearing typically requires partial disassembly of the washer/drum assembly and specialty tools
• Inspect shaft/hub, seals, and surrounding components for wear and replace if damaged

This insert fits into its designated housing or assembly to secure or locate a component. Replacing a worn or broken insert restores a snug fit and helps the appliance operate as intended.

• Seats or supports a mating component within the appliance assembly
• Maintains proper alignment and spacing for reliable operation
• Direct replacement for a cracked, deformed, or missing insert
• Typical signs: loose fit, component movement, or visible damage to the insert

• Disconnect power and, if applicable, turn off water before servicing
• Refer to your model's service information to locate and orient the insert correctly
• Remove the damaged insert and clean mating surfaces prior to installation
• Press or slide the insert fully into place; do not force parts together

This is the insert for the dishwasher silverware/utensil basket. It helps separate and support flatware so pieces stay upright and spaced for proper spray coverage, replacing a cracked or missing insert to restore normal loading and cleaning. What it does:

• Fits into the utensil basket to separate forks, spoons, and knives
• Helps prevent nesting and keeps small items from slipping through
• Holds flatware upright to maintain consistent spray reach
• Typical symptoms: broken or missing sections, warped piece, utensils tipping or sliding out

• 1 insert

• Make sure the dishwasher is off and cool before working inside
• Remove the lower rack and silverware basket if needed for access
• Align the insert with the basket openings and press it fully into place
• Verify it sits flat and does not interfere with rack movement

This factory bearing supports a rotating component inside your appliance, reducing friction so it turns smoothly and quietly. Replacing a worn bearing helps restore proper motion and can reduce noise and wear in the related assembly. What it does:

• Provides low-friction support for a rotating shaft or arm
• Helps maintain smooth, aligned rotation
• Common wear signs: grinding/squealing noises, wobble or excess play, rough/sticking rotation, or visible damage
• A failed bearing can accelerate wear on connected parts

• 1 bearing

• Disconnect power; shut off water or gas before servicing
• Note orientation and any spacers/clips before removal; transfer in the same order
• Inspect mating seals, clips, or shafts and replace if worn
• Do not lubricate unless specified by the manufacturer; keep contact surfaces clean

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Bearing is an OEM component specifically designed for select Bosch dishwashers requiring stabilized rotational movement. As a friction-reducing fixture, it facilitates the smooth operation of assorted mechanisms.

Precision-ground steel and reinforced polymer composite withstand harsh chemicals and high spinning velocities without excess heat or noise. Independent shielding maintains lubrication without contaminating surrounding compartments.

Causes requiring bearing replacement usually involve coolant deterioration building friction. Physical impacts may dislodge protective seals exposing components to intrusions no longer offering intended cushioning.

Symptoms signaling the need for a new bearing incorporate:

• Grinding or scraping noises emitting from moving joints
• Reduced cycle speeds from binding components
• Excessive rotational resistance detected by diagnostics sensors

This OEM Bosch replacement bearing is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on long-lasting suspension elements. Proper installation restores noise-dampening characteristics throughout operational stresses.

This small replacement insert restores proper fit, finish and component alignment in compatible Bosch appliances. It helps secure panels or controls and keeps gaps closed for a clean, stable installation. What it does:

• Replaces a worn, damaged or missing insert used to align or secure adjacent trim and panels.
• Helps reduce rattling, looseness or misalignment caused by missing interior trim.
• Restores a finished appearance where the original insert is broken or missing.
• Works as a non-electrical, mechanical trim component—no wiring changes required.

• Disconnect power to the appliance before accessing internal panels or trim.
• Use basic hand tools to remove surrounding trim; keep fasteners for reassembly.
• Check fit and orientation before final tightening to avoid panel distortion.

This insert is a replacement trim piece designed to restore the appliance's finished appearance and secure adjacent panels. It helps cover gaps and keeps exterior surfaces aligned for a clean, factory look. What it does:

• Replaces a cracked, chipped, or missing trim insert that exposes panel edges
• Helps maintain proper panel alignment and prevents rubbing or catching
• Restores the original finished appearance of the dispenser/door area
• Useful when trim fastening points are intact but the visible insert is damaged

• High-level replacement: typically snaps or slides into place—no specialized tools required
• Disconnect power or follow maker safety guidance when accessing interior panels near electrical components
• Inspect surrounding clips and fasteners; replace if worn to ensure proper fit

A narrow trim strip that finishes and protects an appliance panel edge, giving a clean look while covering gaps and edges. It helps keep dirt out of seams and improves the appliance's appearance. What it does:

• Covers exposed panel edges for a finished, seamless appearance
• Protects against dirt and debris entering narrow seams
• Helps prevent snagging on the panel edge during use
• Can reduce light or airflow through small gaps around the panel

• One trim strip

• Disconnect power to the appliance before performing any work
• Trim or align the strip carefully to avoid damaging the finish
• May attach with clips or adhesive; keep any original fasteners for re-use

This replacement cup rack secures cups and small glassware on the dishwasher's upper rack, keeping items upright and preventing shifting during the wash for more consistent cleaning results. What it does:

• Provides dedicated support for cups, mugs and small glasses on the upper rack
• Helps prevent tipping, sliding and breakage during wash cycles
• Restores missing, cracked or warped cup-holding sections
• Compatible with dishwasher upper rack mounting points and clips

• One cup rack assembly

• Remove the upper rack for easier access; refer to your dishwasher manual for rack removal steps
• Align and snap the rack into the designated upper-rack mounting points; some models may use retaining clips or small fasteners
• Handle edges and clips carefully to avoid damage; wear gloves if needed

The Frame is an OEM part for Bosch dishwashers that provides support and organization for your cutlery, offering a designated space for your forks, knives, spoons, and other utensils.

A bad frame can occur due to wear and tear, accidental damage, or exposure to harsh chemicals. Signs of a faulty frame include cracks, broken sections, or difficulty in smoothly sliding the drawer in and out.

Symptoms of a bad frame include:

• Cracks or broken sections in the frame
• Difficulty in sliding the cutlery drawer in and out
• Unorganized or unstable storage of cutlery

Replace your damaged or worn-out frame with this genuine OEM Bosch part to restore your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.


The Cutlery Drawer Roller Assembly is an OEM part for Bosch dishwashers. This assembly includes the rollers that allow the cutlery drawer to glide smoothly in and out of the dishwasher, ensuring easy access to utensils and efficient loading and unloading. The roller assembly supports the drawer's weight and provides stability during operation.

Causes of a bad roller assembly can include wear and tear from repeated use, accumulation of debris, or physical damage to the rollers or tracks.

Symptoms of a bad cutlery drawer roller assembly include:

• Difficulty in sliding the cutlery drawer in or out
• Unusual noises when moving the drawer
• Drawer becoming misaligned or stuck
• Visible damage or wear on the rollers

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.
