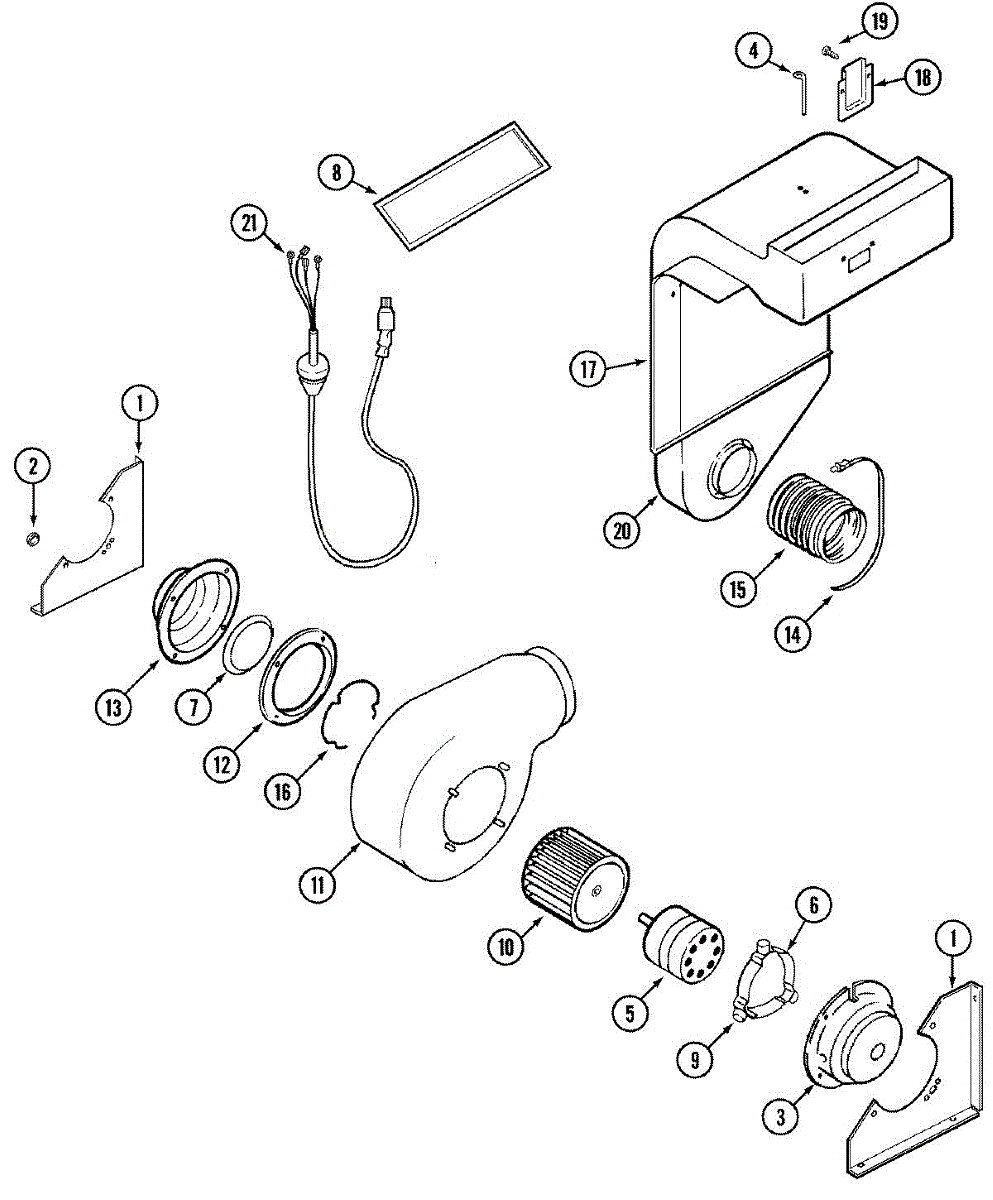

Parts for Jenn-Air SVE87600B: 02 - Blower Assembly-Plenum Parts

This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

Factory-style mounting screw secures panels, brackets, and trim to your appliance frame. Replaces worn, stripped, or missing screws for proper fit.

This is the blower motor used in the downdraft ventilation system of a range. It powers the fan that draws smoke, steam, and cooking odors down and away from the cooktop surface. Replace this motor if the downdraft vent makes unusual noises, vibrates excessively, runs intermittently, or fails to turn on at all.

This is a metal mounting bracket designed to secure the blower motor in place within a range or cooktop downdraft system. It provides stable support so the motor operates without excess vibration or noise. Replace this bracket if it is bent, cracked, or if the motor rattles or shifts out of position during use.

Grease filter for range hoods and over-the-range microwaves. Dimensions: 6-7/8" x 15-9/16" x 3/32" (6.875 x 15.5625 x 0.09375). Rectangle shape. Captures grease from cooking air. Replace when clogged, discolored, or every 6-12 months.

This motor isolator is a vibration-damping grommet that cushions the motor mount to reduce noise and prevent metal-to-metal contact. Replacing worn isolators helps keep the motor seated correctly and the appliance running quieter and smoother.

• Cushions the motor to minimize vibration transfer to the chassis
• Helps reduce rattling or buzzing noises during fan/blower operation
• Supports proper motor alignment and mounting stability
• A common maintenance item when rubber mounts become cracked, hardened, or missing

• Disconnect power and allow hot components to cool before service
• Access the motor mounting points; replace isolators in matched locations
• Inspect adjacent mounts and hardware; replace additional isolators as needed
• Do not overtighten fasteners—compress the grommet evenly without deforming it

This is a blower wheel used in the downdraft exhaust ventilation system of a range or cooktop. It mounts on the motor shaft and draws smoke, steam, and cooking odors down and out through the vent ductwork. Replace this part if the exhaust fan is noisy, vibrating excessively, or not moving air effectively despite the motor running.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This plenum is the OEM-style airflow duct that channels heated air through the appliance, restoring proper airflow and helping the unit vent efficiently. It replaces a cracked or damaged plenum to reduce leaks and airflow loss. What it does

• Directs and channels heated air between the blower and the exhaust or heating cavity
• Restores proper airflow to help maintain expected heating and venting performance
• Helps stop air leaks that can cause longer cycle times or reduced drying/baking efficiency
• Replaces visibly cracked, warped, or damaged plenums that can cause unusual noises or odors

• One plenum

• Disconnect power (and gas, if applicable) before attempting service
• Inspect and replace any worn gaskets or seals to ensure an airtight connection

This part has been discontinued by the manufacturer and is no longer available.
