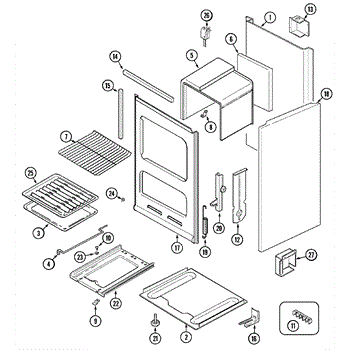

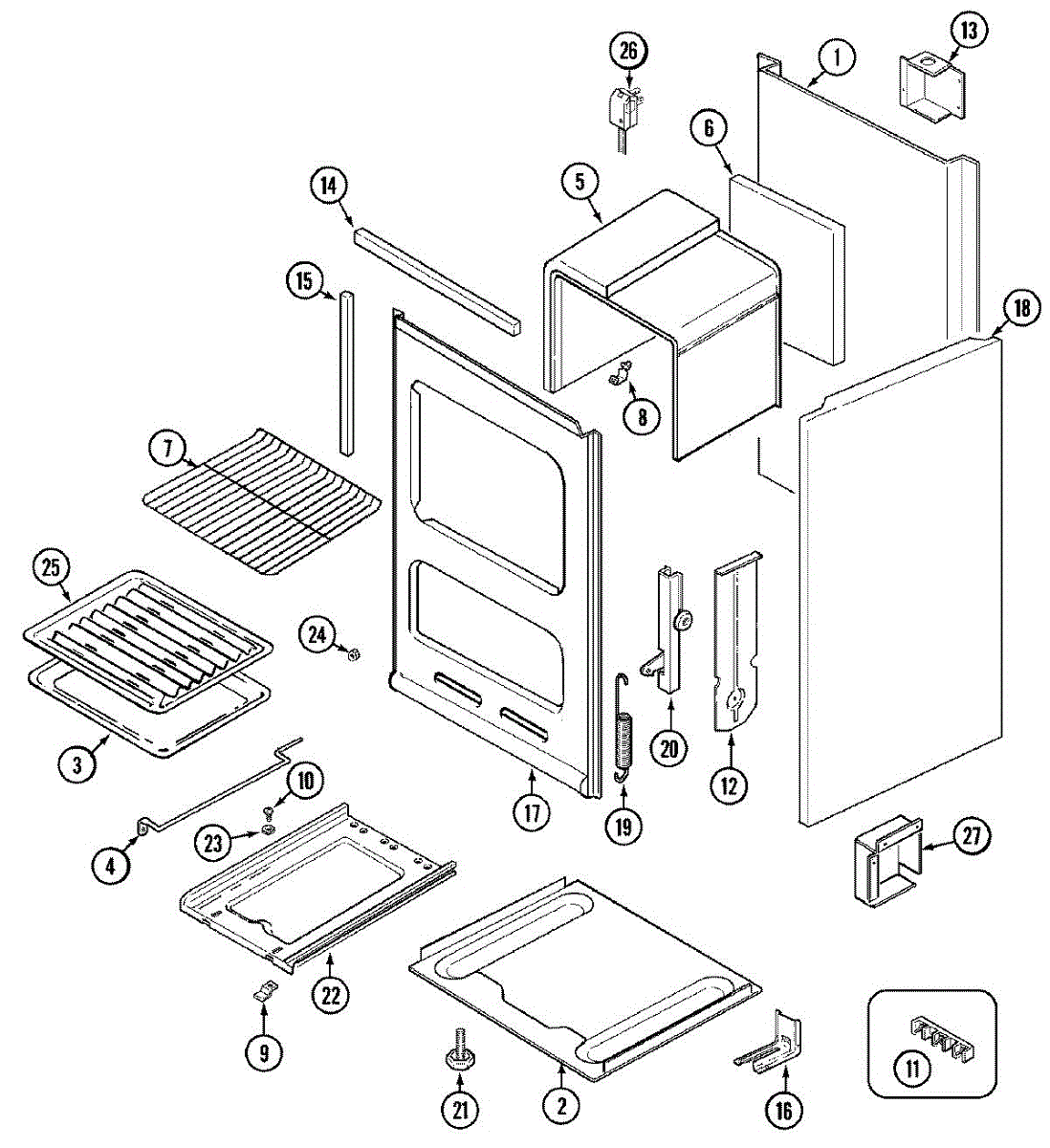

Parts for Magic Chef CGL1120ADH: 01 - Body / Oven Parts

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-24 threaded screw secures appliance components that use a #10 machine screw. It provides reliable fastening for panels, brackets, and assemblies so parts stay aligned and stable during normal use and service. What it does:

• Fastens panels, brackets, or assemblies that accept a 10-24 machine screw
• Maintains alignment and structural connection under normal operating loads
• Replaces worn, stripped, or missing screws to restore secure mounting
• Works with sheet-metal and component mating nuts or threaded inserts commonly used in appliances

• One 10-24 threaded screw

• Power tools can be used; avoid overtightening to prevent stripped threads or damaged components
• Disconnect power and follow all safety steps for your appliance before servicing
• Ensure proper engagement and torque to avoid damage

This mounting clip secures a thermostat, temperature sensor, or capillary bulb in the correct position so it can sense temperature accurately and control the appliance. Replacing a damaged or missing clip helps prevent loose components and erratic readings. What it does:

• Holds the thermostat or sensor firmly against its mounting surface for proper thermal contact
• Helps maintain stable, accurate temperature regulation
• Replaces a bent, broken, or missing clip that won't hold securely
• Common symptoms include a dangling sensor/bulb, rattling, or inconsistent temperature response

• 1 clip

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely before service
• Access the thermostat/sensor area and note original orientation and routing
• Move the component into the new clip and secure it at the original mounting location
• Avoid kinking a capillary tube or damaging sensor leads; the clip is fully seated

Size: 10-24X5/16-NI

This side door gasket forms the sealing edge for the appliance door to restore a tight seal and reduce leaks, drafts, or moisture build-up. Replacing a worn or torn side gasket helps the door sit flush and improves overall performance. What it does

• Seals the door side edge to stop air, moisture or heat from escaping
• Common symptom of a failing gasket: visible gaps, drafts, water or steam leaks
• Can reduce rattling or uneven door closure caused by a warped or compressed seal
• Restores proper contact between door and frame for consistent operation

• Disconnect power and allow the appliance to cool before starting
• Remove the old gasket carefully; retain any clips or screws if re-used per manufacturer guidance
• Press the new gasket into the channel evenly; check for full seating along the entire side edge
• After installation, close the door and inspect for uniform contact; adjust door alignment if needed

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

For screws order: WP7101P485-60.

This 10-32 x 3/8 machine screw secures panels and components in many appliances where a small, threaded fastener is required. It replaces stripped, missing, or loose screws to restore stable assembly and reduce vibration. What it does:

• Fastens panels, brackets, and small components using 10-32 unified threads
• Restores secure mounting when screws are missing, stripped, or loose
• Helps stop rattling, misalignment, and intermittent part contact caused by loose fasteners
• Works wherever a 10-32 x 3/8 machine screw is specified by the manufacturer

• Disconnect power or unplug the appliance before servicing
• Use the correct size screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Replace with the same size and thread spec to ensure proper fit and function

The Leveling Leg is an OEM replacement part for Whirlpool ranges. These adjustable legs help balance and stabilize the range.

Causes of a bad leveling leg commonly involve wear over time, thread or weld failures from supporting heavy loads, as well as damage due to impact or drops during installation.

Symptoms of a faulty leveling leg include:

• Instability such as rocking motions felt while cooking
• Uneven heating
• Doors that do not close properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.
