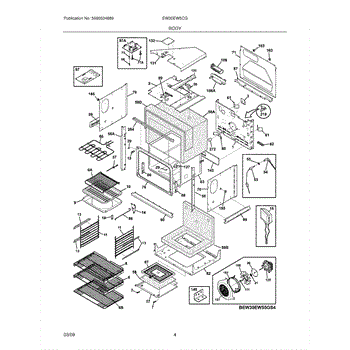

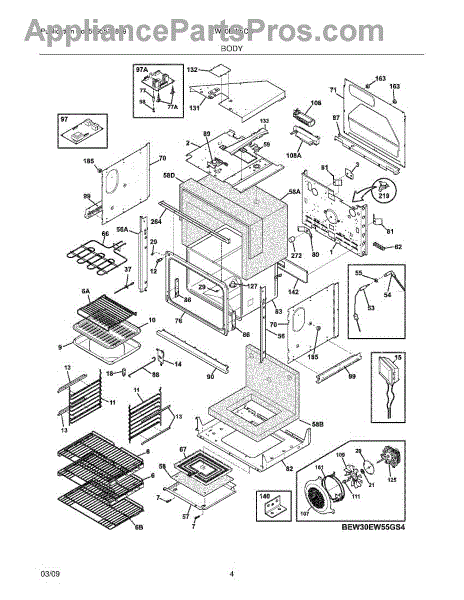

Parts for Frigidaire EW30EW5CGS4: 05 - Body Parts

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

This wiring harness assembly routes power and signals between an appliance's control and its components to restore reliable electrical connections and operation. It replaces a damaged or corroded harness to help eliminate intermittent power or control issues. What it does

• Carries power and control signals between the appliance control board and internal components.
• Restores reliable electrical connections when wires are frayed, broken, or connectors are loose.
• Helps resolve intermittent operation, components not receiving power, or controls that don't respond.
• Prevents shorts caused by exposed wiring or damaged insulation.

• One pre-assembled wiring harness with factory-style connectors.

• Disconnect power (unplug appliance or shut off breaker) before starting work.
• Compare the new harness to the old one to confirm connector types and lengths before installation.
• Route and secure the harness away from moving parts and heat sources; use existing wire-retaining clips.
