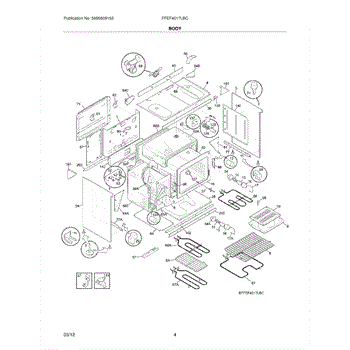

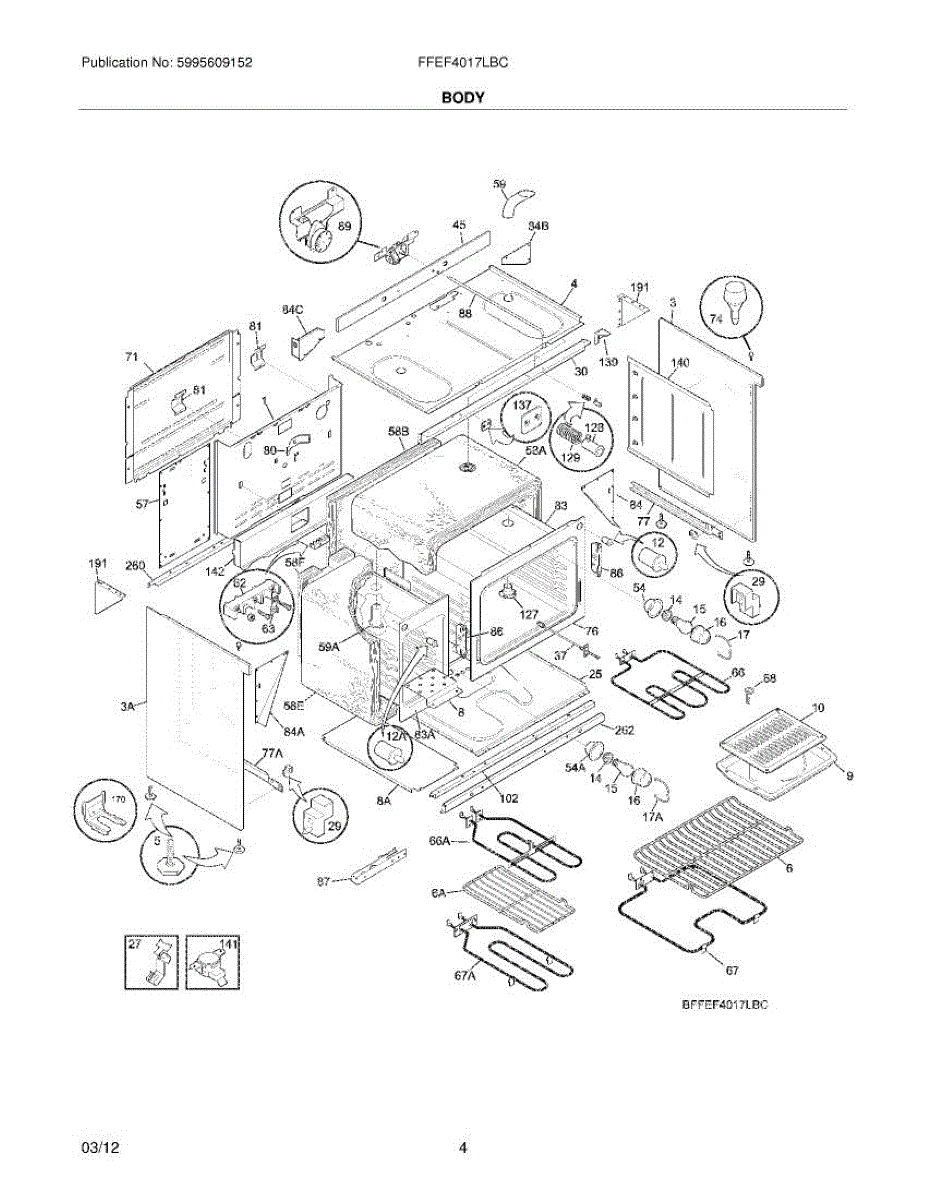

Parts for Frigidaire FFEF4017LBC: 05 - Body Parts

This machine screw adjusts and secures the leveling leg or bracket, helping you set the appliance stable and plumb. Replacing a stripped, bent, or missing screw restores a solid footing and makes accurate leveling possible.

• Threads into the base or leveling bracket to raise or lower the appliance for proper leveling
• Helps reduce rocking, wobbling, and vibration from an unlevel installation
• Common signs of wear: stripped threads, bent hardware, corrosion, or a missing screw
• Useful during installation or when the existing adjustment screw no longer holds

• Disconnect power; shut off gas before working
• Support the appliance to relieve weight on the leveling point
• Remove the damaged screw; inspect and clean mating threads
• Start the new screw by hand to avoid cross-threading, then adjust height and snug

Color: chrome. Measures about 23 inches wide by 15 inches deep.

Color: chrome. Measures about 10 inches wide by 17 inches deep.

This lower oven heat shield protects the range's under-floor components by deflecting and dispersing high heat. It helps prevent damage to wiring, insulation and nearby panels for safer, more reliable oven operation. What it does:

• Deflects and distributes heat away from the oven floor and cabinet cavities
• Protects wiring, insulation and nearby components from excessive heat exposure
• Helps prevent warped panels, scorched insulation or premature component failure
• Restores proper heat routing when the original shield is damaged, bent or missing

• One lower heat shield

• Disconnect power (and gas supply for gas ranges) before starting any service
• Handle carefully; edges may be sharp—wear gloves and eye protection
• May require removal of the oven floor or lower access panel and fastening hardware

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

Has three terminals.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement clip secures components within your appliance. Replacing a broken, bent, or missing clip restores a firm hold on panels or assemblies to prevent shifting and reduce vibration noise.

• Holds specified parts or panels in place where a clip is called out in the assembly
• Helps maintain proper alignment and minimizes rattles/vibration
• Direct replacement for a damaged or missing clip
• Common symptoms: loose or misaligned parts, rattling during operation, clip visibly broken or missing

• Disconnect power before service; also shut off gas/water supplies
• Note the original clip orientation and placement; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid overbending or deforming the clip
• Inspect mating parts for wear or damage and ensure the clip seats fully

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This insulation panel cushions and thermally separates the refrigerator cabinet to help maintain proper temperature and reduce condensation. It replaces worn or damaged cabinet insulation to restore normal thermal performance and reduce drafts. What it does:

• Fits along the cabinet interior to slow heat transfer between the cold compartment and surrounding air
• Helps reduce frost buildup and lowers compressor run-time caused by poor insulation
• Prevents cold spots and helps maintain consistent internal temperatures
• Reduces vibration noise by filling gaps between the liner and outer cabinet

• One cabinet insulation panel

• Designed for drop-in or adhesive-secured placement behind the liner; follow OEM diagram for exact location
• Remove power and empty the compartment before starting work to avoid damage or injury
• Use proper PPE (gloves and eye protection); insulation fibers can irritate skin and lungs
• If adhesive is required, use OEM-recommended adhesive and allow full cure before use

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Broil Element is an OEM part for Frigidaire ovens and ranges. It is specifically designed to provide the high heat necessary for broiling food, such as meats and vegetables. Located at the top of the oven interior, the broil element radiates heat downwards, creating a high-temperature environment ideal for browning and caramelizing the exterior of dishes while locking in juices.

Over time, the broil element can burn out or become damaged due to high temperatures and frequent use.

Symptoms of a bad Broil Element include:

• Lack of heat when broiling
• Uneven cooking or browning of food
• Visible damage or breaks in the element
• No visible glow from the element during operation

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

Replace the oven's lower heating element to restore reliable bake heat and more even cooking. This bake element supplies the primary lower heat during bake cycles so your oven can reach and maintain baking temperatures. What it does

• Provides the lower heating source used during bake cycles for baking and roasting
• Replaces a burned, broken, or open bake element that won't glow or heat
• Helps correct uneven baking or failure to heat on the bake setting
• Visible signs: blistering, breaks, or dark spots on the element

• Always disconnect power at the circuit breaker before servicing the oven
• Allow the oven to cool completely and wear gloves to avoid cuts from sharp edges
• Support the element while disconnecting terminal wires; secure wiring and terminal nuts when reinstalling
• Test the bake function after restoring power

The Heating Element is an OEM part for Frigidaire ovens and ranges. It is responsible for providing the heat necessary for baking or broiling. The element converts electrical energy into heat through resistance; this heat is then distributed throughout the oven cavity to cook or bake food evenly.

Common causes of a bad Heating Element can include visible signs of damage like blistering, bulging, or breakage. A burnout may occur when the element overheats and fails, leading to no heat production. Additionally, electrical issues like a blown fuse or faulty wiring can prevent the element from receiving power.

Symptoms of a bad Heating Element include:

• The oven does not heat up
• Uneven cooking or baking
• Longer cooking times than usual
• The element not glowing when the oven is turned on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This element hanger support secures a cooktop surface heating element to the range and keeps the element aligned for reliable contact and stable cooking. Replaces a worn or bent bracket to restore proper element positioning. What it does:

• Holds the surface heating element in the correct position under the cooktop
• Stabilizes the element to maintain solid electrical contact and even heating
• Helps prevent element wobble, arcing, or intermittent power to the burner
• Fits where the element connects to the terminal/anchor point on the cooktop

• 1 element hanger support bracket

• Disconnect power to the appliance before attempting any service
• Remove the cooktop or element as required to access the hanger; follow OEM disassembly steps
• Inspect element terminals and surrounding parts for damage while replacing the bracket

This adapter assembly joins and aligns mating parts inside the appliance so they fit securely and operate as designed. Replace a cracked or missing adapter to restore proper fit and eliminate looseness or misalignment after service. What it does:

• Provides the correct spacing and alignment between connected components
• Helps secure parts to reduce vibration, rattling, or shifting
• Restores proper fitment after a component replacement or repair
• Replace if the original is cracked, warped, or missing mounting features

• One adapter assembly

• Disconnect power and allow the appliance to cool before servicing
• Note the original orientation and take photos to aid reassembly
• Transfer any reusable screws/clips from the old part if needed
• Test fit and alignment before fully tightening fasteners

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This is an oval-head square-drive screw used to secure interior and exterior appliance components. It provides a low-profile finish and corrosion-resistant black finish for a neat, durable hold. What it does:

• Fastens panels, brackets, trim pieces, and other sheet-metal or plastic parts
• Oval head gives a slightly countersunk, finished appearance when installed
• Square (Robertson) drive resists cam-out for easier tightening
• Common replacement when original screws are stripped, missing, or corroded

• Use the correct square-drive (Robertson) bit to avoid stripping the screw head
• Hand-start the screw to ensure proper alignment before using power tools
• Do not overtighten; stop once the part is snug to avoid thread or panel damage
• Disconnect power and follow appliance safety precautions before servicing

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
