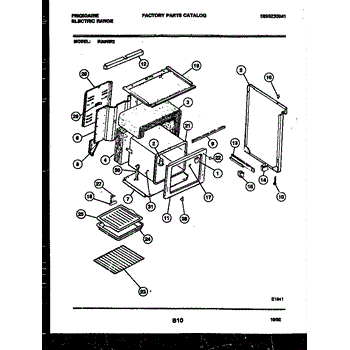

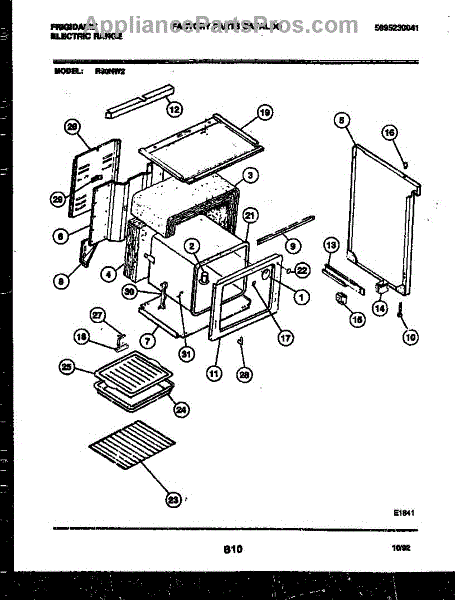

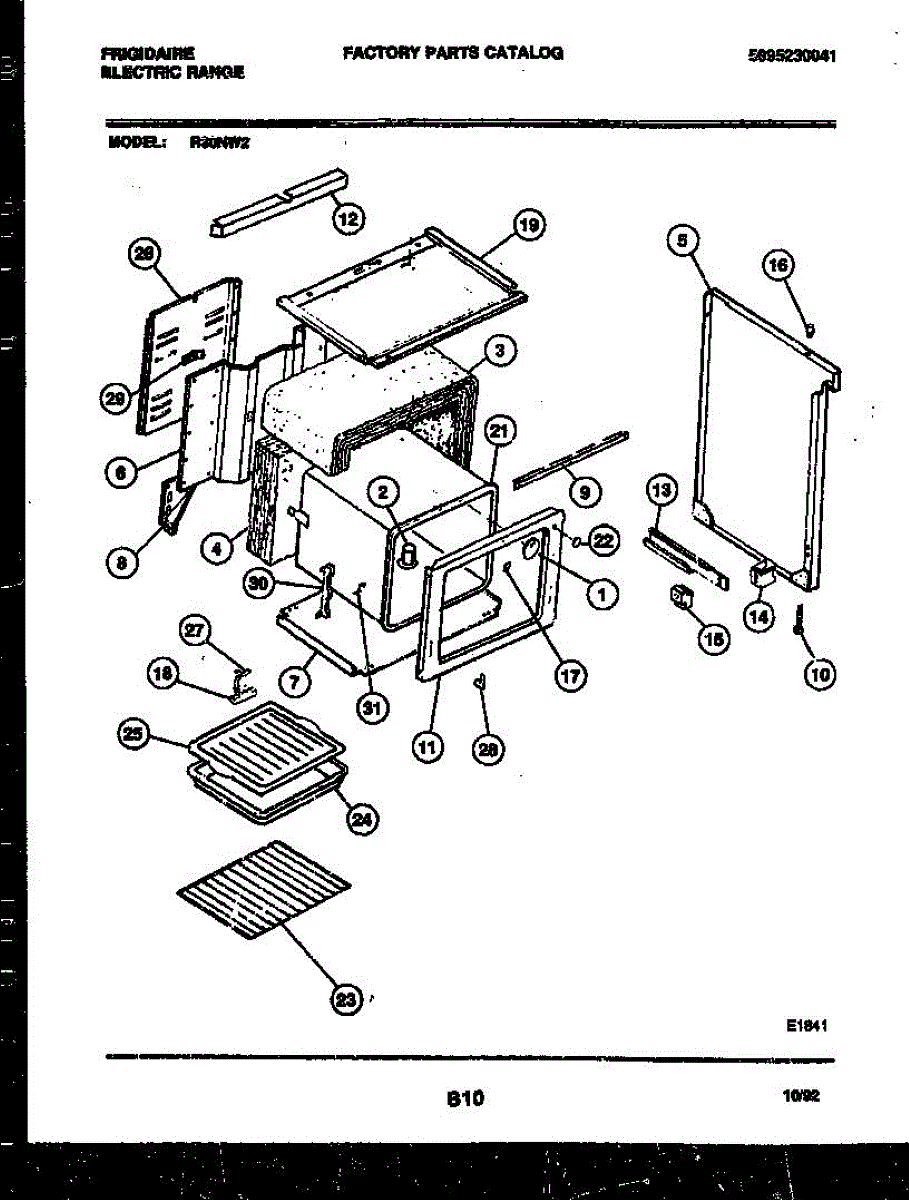

Parts for Frigidaire R30NL2: 06 - Body Parts

This oven back insulation replaces the thermal lining at the rear of the oven cavity to help maintain cooking temperature and protect surrounding components. Restores intended heat retention and reduces heat transfer to the cabinet. What it does:

• Provides thermal barrier behind the oven cavity to help keep heat in the cooking area
• Helps improve temperature stability and baking consistency when insulation is damaged or missing
• Reduces heat transfer to the oven rear panel and adjacent cabinetry
• Can lessen hot spots and reduce unusual exterior panel temperatures or increased energy use

• One oven back insulation panel

• Disconnect power to the appliance and allow the oven to cool completely before starting
• Remove the oven back panel or drop-down broiler drawer as required to access the insulation
• Wear gloves and eye protection; handle insulation gently and avoid compressing or tearing the material
• Only state this part ships; additional fasteners or clips may be required.

This subtop support is a replacement bracket that holds the cooktop/subtop assembly securely in place, restoring proper alignment and preventing sagging or movement for a stable cooking surface. What it does:

• Secures the subtop/cooktop assembly to the range chassis to maintain correct fit and alignment
• Prevents cooktop sagging, shifting, or uneven gaps that can affect burner operation or surface stability
• Reduces rattling or vibration caused by a loose or worn support
• Helps maintain safe clearance and spacing for components under the cooktop

• Disconnect electrical power (and gas supply if applicable) before beginning service
• Handle edges carefully; use appropriate hand tools and follow OEM diagram for proper placement
• Keep track of fasteners and components removed; replace any damaged clips or screws

This adjustable leveling leg supports your dryer and allows you to level the appliance on uneven floors. It screws into the dryer's base and can be raised or lowered to eliminate rocking or vibration. Replace it when the leg is bent, stripped, or won't adjust properly, causing your dryer to be unstable or noisy.

This part has been discontinued by the manufacturer and is no longer available.

Nylon guide that supports the front of your range oven drawer as it slides in and out. Replace if cracked, broken, or worn causing drawer misalignment.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Rubber grommet plug that seals the light switch opening in your range control panel. Replace if cracked, torn, missing, or no longer providing a tight seal.

Replace your cracked, warped, or hard-to-clean oven rack. This durable rack installs inside your range oven to support cookware during baking and roasting.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Secures panels and components in your range or oven. Replace if broken, bent, or missing to prevent shifting and reduce vibration noise. Confirm fit.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Secures panels and components in your range or oven. Replace if broken, bent, or missing to prevent shifting and reduce vibration noise. Confirm fit.
