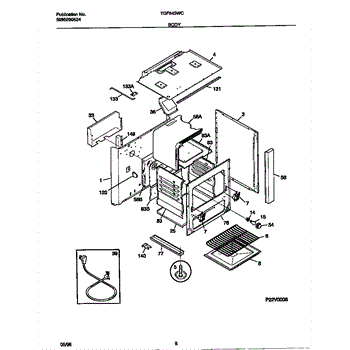

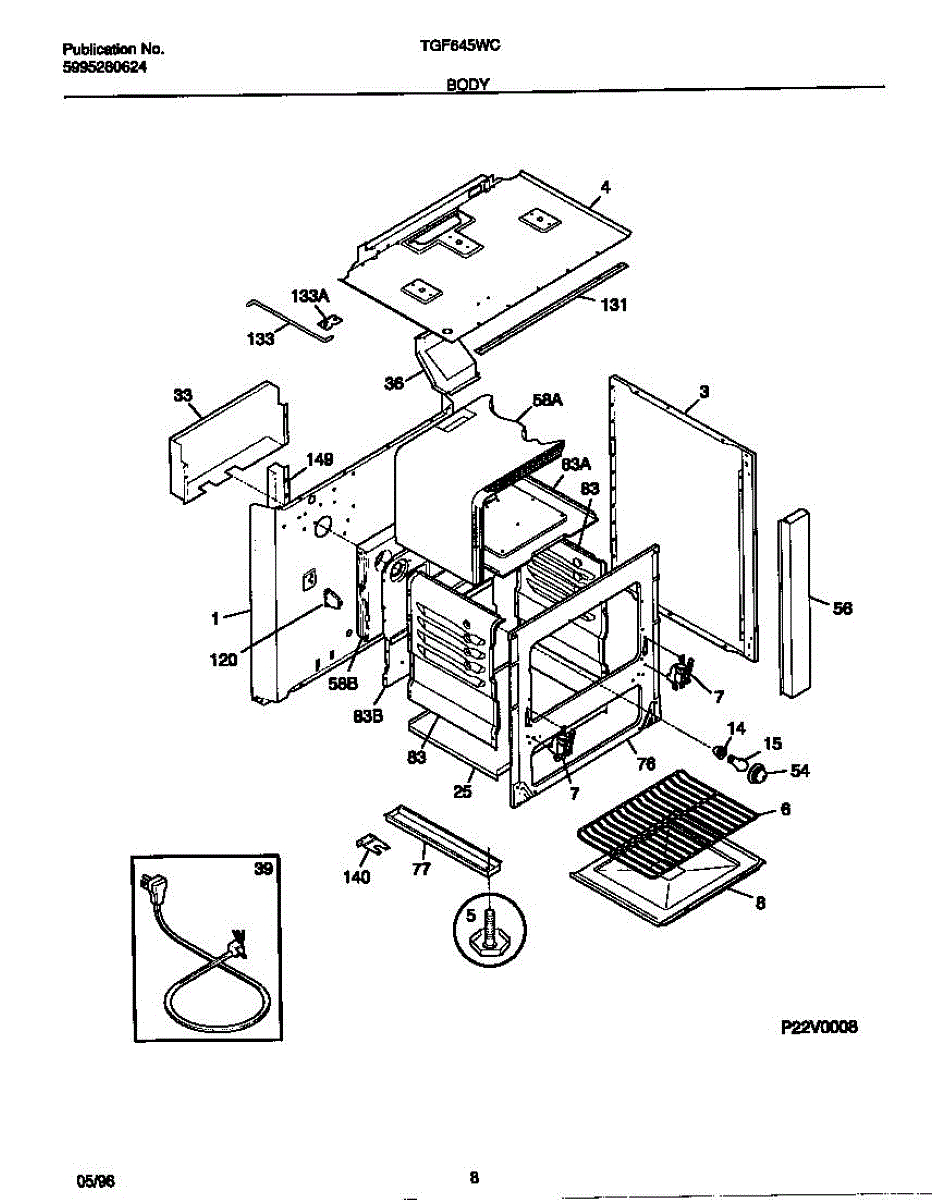

Parts for Frigidaire TGF645WCD3: 05 - Body Parts

Left body side shield for ranges. Protects the side panel of your range from heat and damage. Replace if cracked, bent, or missing to restore protection.

Protective shield that covers and guards the switch assembly on your range. Replace if the original shield is cracked, broken, or missing to restore proper coverage.

Screw that adjusts and secures the leveling leg to your range base or bracket. Replace if stripped, bent, or missing to restore stable footing and level your appliance.

The Hinge Assembly is an OEM replacement part for Frigidaire ranges. Responsible for securely mounting the range door or oven door while facilitating easy opening and closing, the hinge assy plays an important role in the overall usability of the appliance. Right side. For left side use 318348801

Causes of a bad hinge assembly can include normal wear and tear over time from frequent use of the appliance, as well as potential damage from attempts to force a misaligned door closed.

Symptoms of a failing hinge assembly include:

• The door not sitting flush or locking into place fully
• Increased resistance or difficulty when opening/closing
• Noises or vibrations coming from the hinge area
• Visible damage or lack of smooth movement in the hinges
• Gaps appearing around the door seal

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replaces a broken, worn, or damaged oven door hinge on your range. Allows the door to open and close smoothly. Order if your hinge is cracked or bent.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This retainer secures appliance insulation panels to the cabinet, helping keep insulation in place so the unit maintains proper temperature and reduces drafts. Durable plastic construction designed to fit OEM mounting points. What it does

• Holds insulation firmly against cabinet walls to prevent shifting or sagging
• Helps stop cold spots and uneven cooling caused by displaced insulation
• Reduces vibration noise from loose insulation material
• Commonly replaced when clips break, crack, or fail to grip

• One insulation retainer

• Disconnect power before working on the appliance to avoid shock
• Access may require removing interior panels or liners; save fasteners for reassembly
• Replace any damaged surrounding clips or seals to restore a proper fit
• If you encounter rusted or seized fasteners, use appropriate tools and corrosion-penetrating lubricant; avoid forcing parts

This part has been discontinued by the manufacturer and is no longer available.

A replacement support rod bracket that secures the refrigerator/freezer support rod to the cabinet, restoring proper door support and alignment for smooth opening and closing. Designed to match OEM fit and function. What it does:

• Holds the end of the door support rod in place to keep the door properly supported
• Prevents the support rod from slipping or detaching during normal use
• Helps restore correct door alignment and reduce sagging or uneven closing
• Works with the matching support rod and mounting hardware to maintain stable operation

• Inspect the support rod and mounting area for damage; replace any additional worn parts for a complete repair
• Remove power to the appliance and empty the door area before beginning work for safety
• Typically secures with existing screws or clips; keep original fasteners unless replacements are provided

Support rod that holds the cooktop top in place. Replace this structural pin if the original is broken, bent, or missing to properly secure the top.

Anti-tip bracket mounts to the floor behind your range to prevent tipping when weight is applied to the open door. Replace if bracket is missing or damaged.

Hex washer head ,10-32 x 0.375. Ground

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Mounting screw for ranges, ovens, and cooktops. Secures panels, brackets, or internal components. Replace if missing, stripped, or damaged.

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

Hex washer head ,10-32 x 0.375. Ground

Phillips pan head screw for securing panels and components in appliances. Replace missing, stripped, or corroded screws during repairs or maintenance.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
