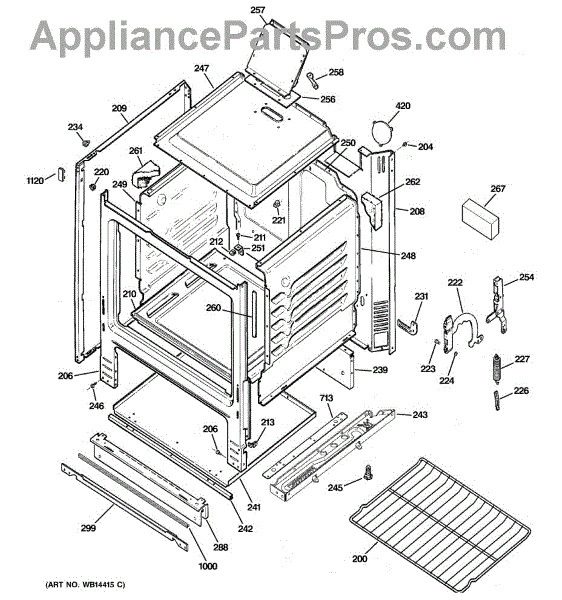

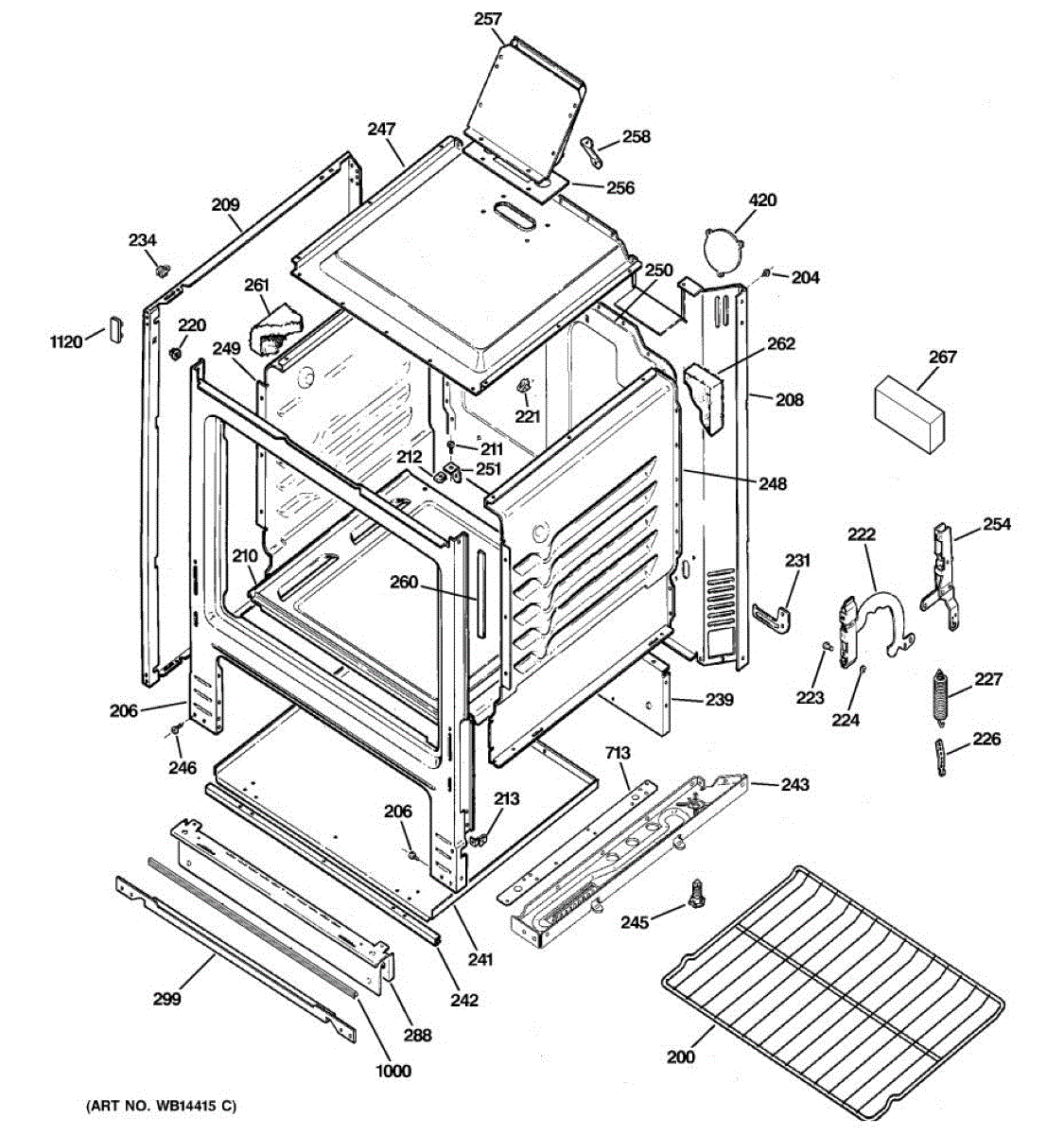

Parts for Ge AGBS300PK3BB: 03 - Body Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

Size: 8-18 x 1/2 inch.

This capillary clip secures the oven thermostat's sensing bulb/capillary to the cavity wall so it stays correctly positioned for accurate temperature control. Replace a missing or damaged clip to prevent a sagging bulb and erratic oven performance.

• Holds the thermostat capillary tube/sensing bulb in place inside the oven
• Helps maintain consistent temperature regulation by keeping the bulb properly located
• Direct replacement for a broken, corroded, or missing clip
• Symptoms include a loose or dangling bulb, uneven baking, or temperature swings

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the oven cavity; locate the thermostat sensing bulb and capillary along the wall or back panel
• Position the bulb/capillary and secure with the new clip; avoid kinking or crushing the tube
• Restore power, and test operation

This oven door hinge assembly controls the door's movement and keeps it sealed against the frame. Replacing a worn hinge restores smooth opening and a tight close, helping maintain temperature and consistent cooking performance.

• Provides spring-assisted pivot to support the oven door during opening and closing
• Maintains alignment and helps the door stay fully closed against the gasket
• Direct replacement for bent, weak, or broken hinges
• Common symptoms: door won't close fully, drops or slams open, sits uneven, squeaks, or allows heat to escape

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door; engage hinge locks or insert hinge pins and support the door while lifting it off
• Springs are under tension—use caution and wear gloves/eye protection
• After replacement, check door alignment and gasket seal; many replace both hinges together for even operation

Clip for door hinge.

This anti-tip arm is a metal safety bracket that helps secure a freestanding range to the floor or wall to reduce the risk of the appliance tipping forward. It provides a simple, passive safeguard that improves kitchen safety. What it does:

• Anchors the range to help prevent forward tipping when a heavy load is placed on the open oven door
• Reduces rocking or shifting of the appliance during normal use
• Addresses the symptom of a range moving forward when the door is opened or when the cooktop is bumped
• Works as a passive restraint that engages when the range is tilted forward

• One anti-tip arm

• Follow the appliance manufacturer's instructions and local codes for proper attachment location and method
• Installation may require lifting or tilting the range; have a second person assist for safety
• Verify the mounting surface is suitable for secure fastening and use appropriate fasteners
• Disconnect power and ensure the appliance is stable and cool before positioning or fastening the bracket

Anti-tip kit.

This is a right-side guide support that secures and aligns a sliding component so drawers or shelves operate smoothly and stay on track. Replaces a worn or broken guide support to restore proper movement and seating. What it does:

• Holds the right-side guide rail or track in place so the drawer or shelf slides evenly
• Prevents the drawer or shelf from sagging, binding, or falling off the track
• Restores proper alignment when the original guide is cracked, broken, or worn
• Works with the existing rail, clips, and mounting hardware to maintain smooth travel

• Disconnect power or unplug the appliance before accessing internal components
• Access may require removing the drawer, shelf, or front panel—use basic hand tools
• Inspect related clips, rails, and fasteners and replace any damaged pieces for best results

This bottom panel replaces the damaged lower oven floor panel to restore proper support and heat protection for cookware and internal components. It helps stop rattling, sagging, and hot spots that can affect bake performance. What it does:

• Provides a stable, heat-resistant surface at the bottom of the oven cavity
• Protects underlying components from spills, drips and direct heat
• Prevents sagging or warped oven floor that can cause cookware instability
• Can reduce rattling or vibration caused by a loose or damaged panel

• Disconnect power to the range before beginning any work.
• Remove oven racks and allow the oven to cool completely.
• Handle edges carefully; use gloves to avoid cuts and protect the finish.
• Installation typically requires removing access screws and aligning the panel into the oven floor supports.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right hand side

This angle support is a small metal mounting bracket that stabilizes and secures components inside the appliance, helping keep shelves, panels, or assemblies aligned for reliable operation and safe use. What it does:

• Provides structural support for interior panels, shelves, or trim to prevent sagging or misalignment
• Holds assemblies in the correct position to reduce rattling and vibration during use
• Restores proper fit and clearance when a bent or broken bracket causes shifting
• Works with fasteners to anchor components where a right-angle connection is needed

• Inspect surrounding parts and fasteners; replace any damaged screws or clips as needed
• Use the correct size fastener and torque to avoid stripping or cracking adjacent parts
• Disconnect power and follow manufacturer safety guidelines before working near electrical components

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

A replacement oven door gasket that seals the oven cavity to help maintain temperature and reduce heat loss. Replacing a worn or torn gasket improves cooking performance and can prevent heat leaks around the door. What it does:

• Seals the oven door to keep heat and moisture inside for more consistent cooking
• Helps prevent excessive heat from escaping into the kitchen
• Reduces hot spots and improves bake/roast results when the seal is intact
• Common symptom: visible gaps, cracks, or a loose, compressed gasket letting heat escape

• High-level task: Typically installs around the oven door frame; may require removing the door for easier access
• Use gloves to avoid sharp edges and allow the oven to fully cool before starting
• Inspect mounting tabs or adhesive and replace any damaged retaining hardware

This oven back insulation is the replacement rear cavity pad that helps contain oven heat and protect rear components and cabinetry. It restores proper thermal barrier performance for safer, more consistent oven operation. What it does:

• Provides a thermal barrier behind the oven cavity to limit heat transfer to the rear panel and surrounding cabinetry
• Helps maintain more consistent cooking temperatures by reducing heat loss through the back
• Protects wiring, controls, and exterior surfaces from excessive heat exposure
• Replaces missing, damaged, or deteriorated insulation that can cause higher rear-surface temperatures or heat-related odors

• One oven back insulation pad as shown

• Disconnect power to the appliance before servicing
• Remove the range/oven from its enclosure and access the rear panel per your model's service instructions
• Handle insulation with gloves and a mask if fibers are exposed; avoid compressing or tearing the material
• Secure the insulation in the original position with factory fasteners or clips; verify no obstruction of vents or wiring before reassembly

This surface burner gasket seals the burner assembly to the cooktop. Replacing a worn gasket restores a tight seal to help support reliable ignition, a stable flame, and keeps spills and moisture from entering the burner well. What it does:

• Seals between the surface burner assembly and cooktop
• Helps maintain proper airflow for consistent ignition and flame
• Helps prevent liquids, crumbs, and grease from seeping below the burner
• Common symptoms of failure: distorted or hardened gasket, visible cracks, uneven/weak flame, or persistent clicking during ignition

• 1 gasket

• Disconnect power and shut off gas supply; allow the appliance to cool completely
• Remove grate, burner cap, and burner head to access the gasket
• Clean mating surfaces; seat the gasket flat and do not use sealants or adhesives unless specified by the manufacturer
• Reassemble, restore gas, and verify burner operation; leak-check with soapy water if any gas fittings were disturbed

A small rubber bumper that cushions contact points to reduce noise and prevent wear on moving appliance parts. Fits where a soft stop or spacer is needed to protect surfaces and quiet door or panel movement. What it does:

• Acts as a shock absorber to cushion impact between moving parts or panels
• Reduces rattling and vibration for quieter operation
• Prevents metal-to-metal contact that can cause surface wear or chipping
• Maintains proper spacing where a soft stop or spacer is required

• Typically presses or snaps into a mounting hole or onto a stud; orientation before installing
• Clean mating surfaces to ensure a secure fit and proper adhesion if applicable
• Replace only when the old bumper is cracked, flattened, or missing
• Disconnect power and remove any obstructing panels if working near electrical components
