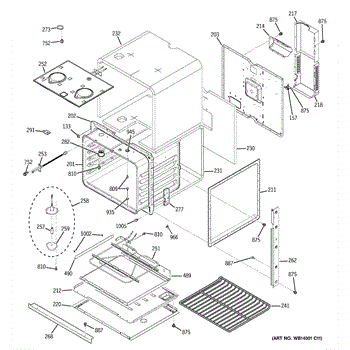

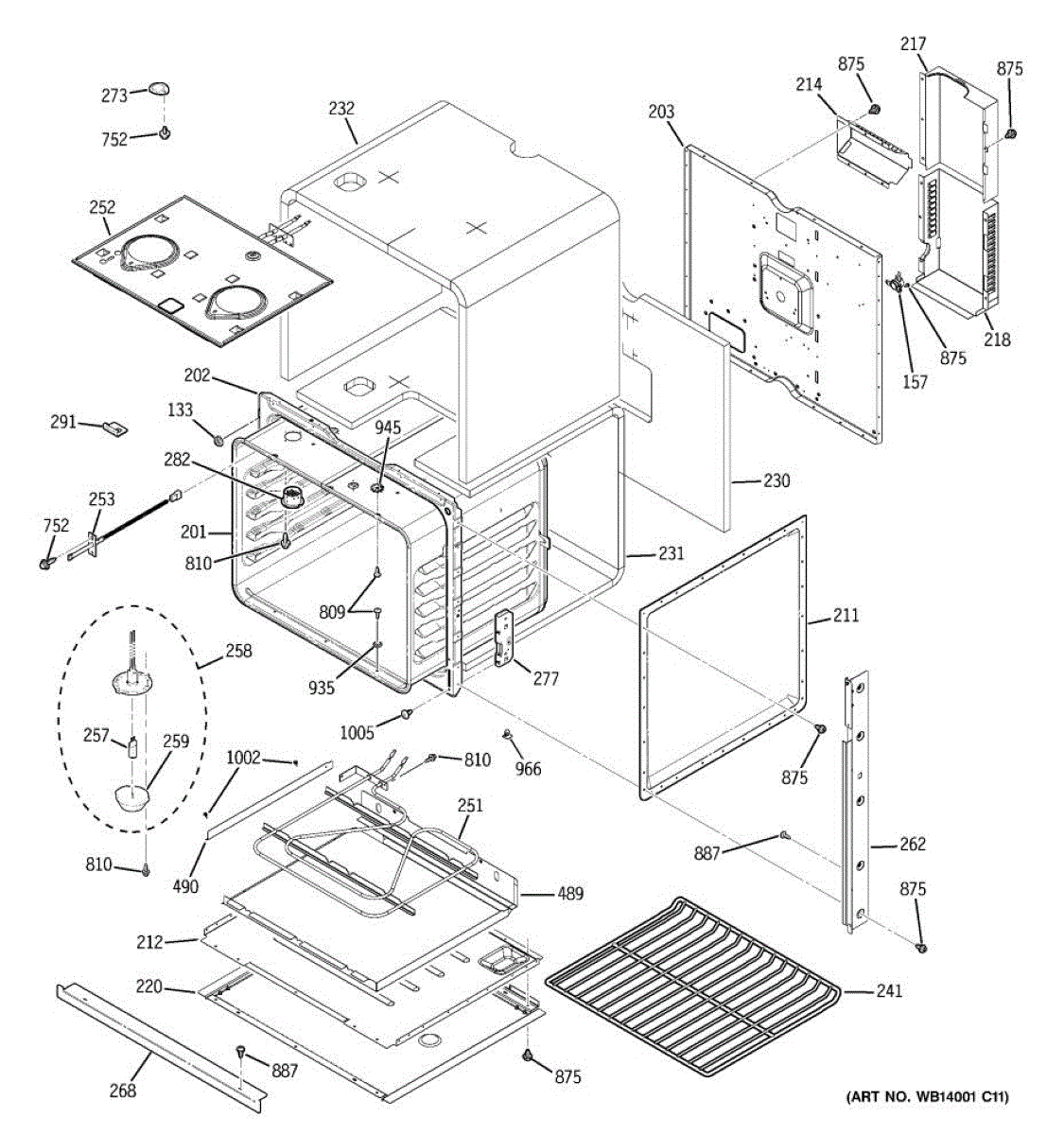

Parts for Ge JCKS10DP3BB: 02 - Body Parts

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Oven won't heat or shuts off after reaching temperature? The hi-limit thermal switch prevents overheating. DIY repair takes 30-60 minutes.

This back insulation retainer secures the oven's rear insulation in place, keeping insulation from shifting and reducing rattling. It helps maintain proper oven cavity protection and a quieter operation. What it does:

• Holds the rear insulation securely against the oven back panel
• Prevents insulation from sagging or falling into the cavity
• Reduces rattling or vibration caused by loose insulation
• Helps the insulation stay in the correct position for safe operation

• One back insulation retainer

• Disconnect power (unplug or switch off breaker) and allow the appliance to cool before beginning.
• Access typically requires removing the oven's rear panel; keep fasteners organized for reassembly.
• Wear gloves and eye protection when handling insulation and sharp sheet metal edges.

Secures bottom insulation panel in place to maintain proper thermal protection. Replace if cracked, broken, or missing to keep insulation positioned.

Oven won't heat or bakes unevenly? This lower bake element restores consistent heating and proper preheating. Moderately easy DIY repair.

Broil element burned out or not heating? This upper oven heating element restores broiling function. Simple 15-minute DIY fix with basic tools.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Clear glass lens that protects your oven light bulb from heat, grease, and debris. Replace when cracked, discolored, or missing to restore visibility.

Vertical side trim assembly for ovens. Covers the side edges of the oven cavity opening. Replace if cracked, chipped, discolored, or missing.

White bottom cabinet trim for 27-inch ovens. Covers the gap between your oven and cabinet for a finished look. Replace if cracked, chipped, or missing.

Bottom cabinet trim for 27-inch ovens. Replaces cracked, broken, or missing trim pieces on the lower cabinet edge. Black finish cosmetic part.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Vent tube assembly that routes exhaust and airflow inside your oven. Replace if cracked, damaged, or missing to restore proper internal venting.

A side pan reflector that directs heat inside the oven cavity and helps protect the oven interior. Replaces a damaged or worn reflector to help maintain even heating and reduce hot spots during cooking. What it does:

• Reflects and redirects oven heat for more consistent cooking and baking
• Shields the oven wall from grease, spills and direct heat exposure
• Helps reduce uneven browning or hot spots caused by a missing or warped reflector
• Visible damage, excessive soot or warping are common signs the reflector needs replacement

• One side pan reflector

• Allow the oven to cool and disconnect power before installing
• Remove any loose debris or grease from the mounting area before fitting the new reflector
• Confirm correct side/orientation and secure per the oven's hardware; use manufacturer instructions when available

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance component

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

8-32 thread screw fastens panels and components inside ranges, ovens, and cooktops. Replace stripped, missing, or damaged screws to secure covers properly.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Replacement screw secures panels, brackets, and trim inside your oven or range. Restores tight fit when original hardware is missing, stripped, or damaged.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
