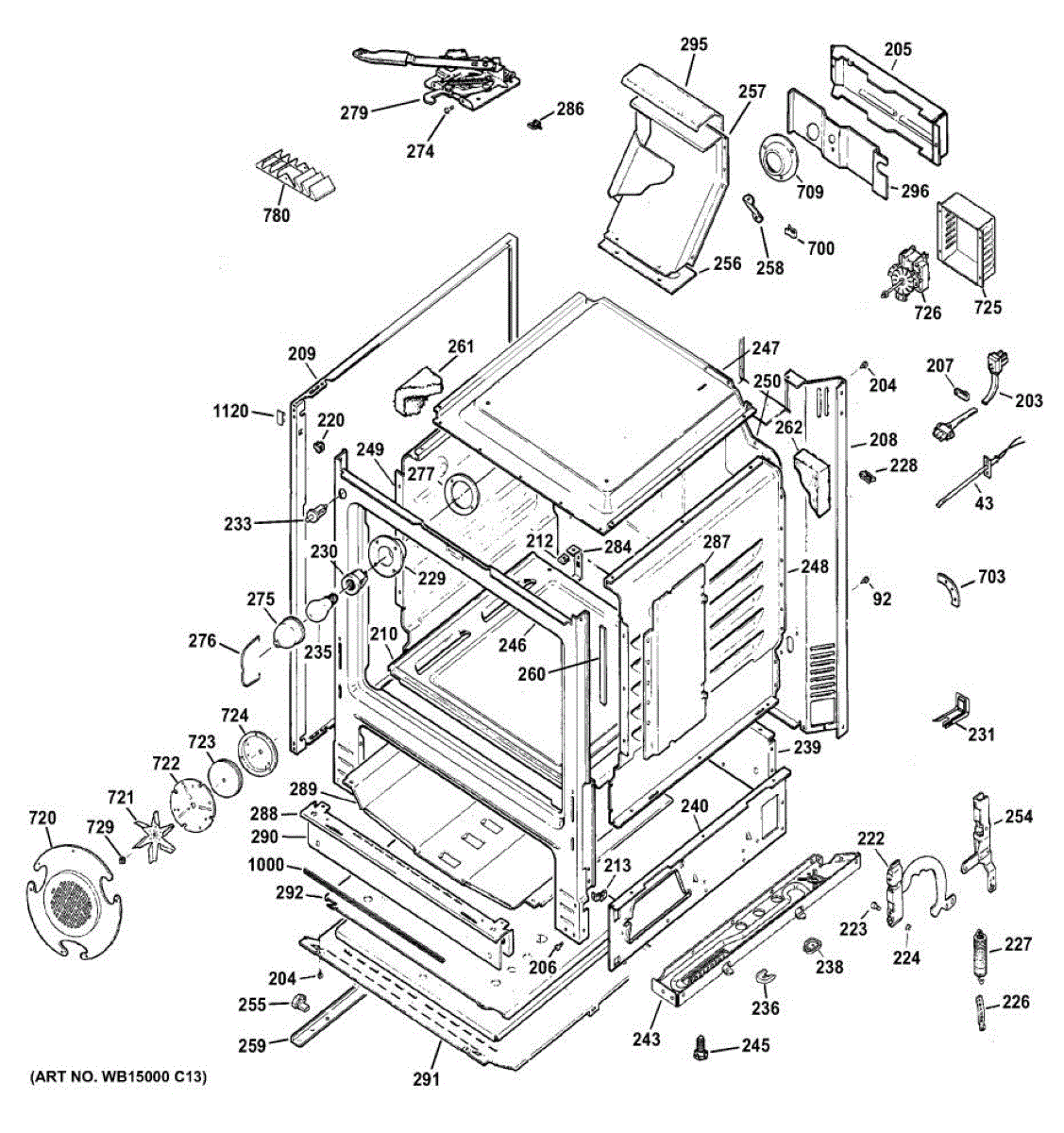

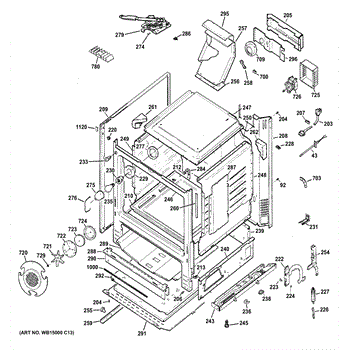

Parts for Ge JGB605EED1ES: 03 - Body Parts

Fix an oven that won't reach temperature or runs too hot/cold. This temperature sensor monitors oven heat accurately. Easy 15-minute DIY repair.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Back lamp housing cover for gas ranges. Protects the back lamp assembly from damage. Replace if cracked, broken, or missing to restore proper coverage.

Secures your range power cord at cabinet entry to prevent wire damage and disconnection. Replace if cord is loose or clamp is cracked. Confirm fit with your model number.

Side panel for gas ranges. Covers and protects the exterior side of your range. Order a replacement if your panel is cracked, damaged, or discolored.

Replaces cracked, rusted, or corroded oven bottom pan and heat deflector. Installs in the base of your range oven cavity. Simple 2-screw removal.

Speed nut clip secures your range oven bottom panel. Replace when missing or damaged to prevent panel rattling. Verify fit with your model number.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Metal safety bracket that secures freestanding ranges to the floor or wall. Replace if bent, broken, or missing to prevent appliance tipping hazards.

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

Oven light stuck on or won't turn off? This push-type plunger switch restores proper on/off control. Simple fix—pull old switch, plug in new one.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Replace your range's spacer base if it's cracked, broken, or missing. This structural component installs at the base to maintain proper spacing and alignment.

Left hand side

Right hand side

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

Replace your gas range's oven top panel if cracked, damaged, or worn. This structural component covers the oven cavity and supports cooktop burners.

This right oven side panel is a direct-replacement interior panel that restores proper fit and protection inside the oven cavity. It helps maintain correct airflow and keeps internal components covered for safe, reliable use. What it does:

• Replaces a dented, warped or rusted right-side oven interior panel
• Protects internal wiring, sensors and insulation from heat and debris
• Helps maintain even cooking by preserving the oven cavity shape
• Improves appearance by covering damaged or discolored metal

• Disconnect power to the range before starting any repair.
• Basic hand tools typically required; removal of oven racks and inner panels may be needed.
• Handle edges carefully — metal parts can be sharp.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Replacement drawer support bracket for your range's storage or broiler drawer. Installs on the drawer rail to prevent sagging, crooked alignment, or binding.

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

Drawer slide rail for electric and gas ranges. Mounts to the drawer box to enable smooth gliding. Replace if bent, broken, or worn for proper operation.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Replacement insulation for the back wall of your range oven cavity. Replaces worn, damaged, or missing insulation to maintain proper heat retention.

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Oven door won't lock during self-clean cycle? This latch assembly includes motor and switches. Requires lifting cooktop for access. 1-2 hour repair.

Support bracket for gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing to restore proper fit.

Right hand side

Left hand side

Secures and supports internal components in your range. Replace this brace if it's bent, broken, or missing to ensure proper alignment and stability.

Stamped metal shield that protects the oven's lower cavity and insulation from excessive heat. Replace if cracked, rusted, corroded, or damaged.

Metal radiation shield that mounts inside your range to protect internal components from heat. Replace if cracked, bent, or dislodged during service.

Bottom guard for gas ranges. Installs at the base to protect internal components. Replace if cracked, damaged, or missing to maintain appliance integrity.

Bottom inner guard for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper coverage.

Mounting bracket secures oven components inside your range. Replace if bracket is bent, cracked, broken, or missing to restore proper structural support.

Cooling fan cover for gas ranges. Installs over the internal cooling fan assembly. Replace if cracked, damaged, or missing to restore proper airflow.

Oven convection fan not working or making noise? This shaft-mount fan blade restores proper airflow and cooling. Easy DIY repair in under an hour.

Protective cover for your range's cooling fan assembly. Replaces cracked, broken, or missing fan covers. Installs over the fan housing to shield components.

Fan support plate for electric and gas ranges. Mounts and secures the cooling fan assembly. Replace if cracked, bent, or broken to restore proper support.

Convection fan stopped spinning or making noise? This motor drives the fan to circulate hot air for even baking. Moderate DIY repair—disconnect power first.

Mounting nut secures the convection fan blade to the motor spindle. Replace if lost, stripped, or damaged during fan service or repair work.

Diffuser vent trim for gas ranges. Installs on the cooktop surface to cover the vent opening. Replace if cracked, discolored, or missing.

Rubber bumper cushions contact points on range doors and panels. Replace if cracked, missing, or worn to restore quiet operation and protect surfaces.
