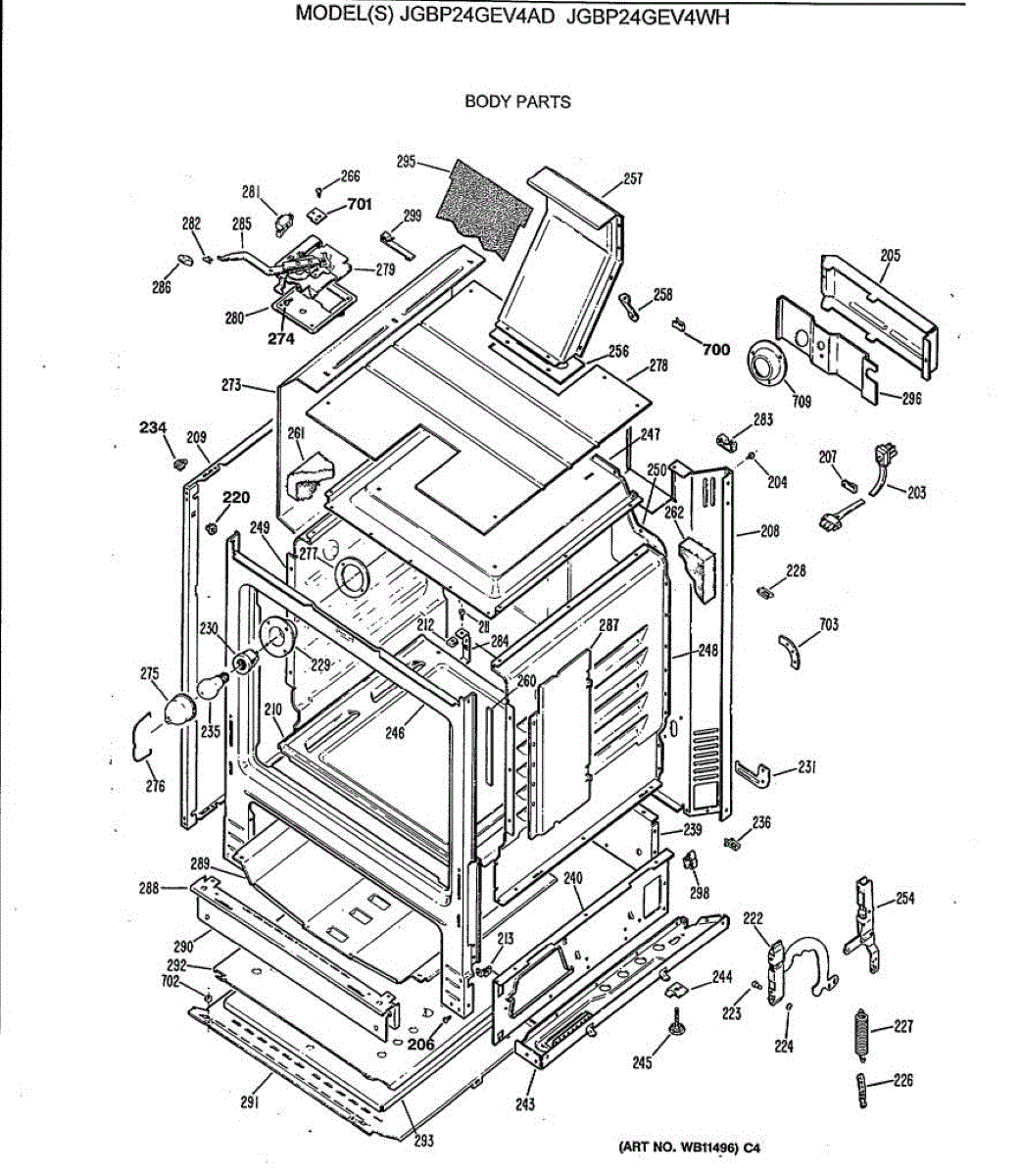

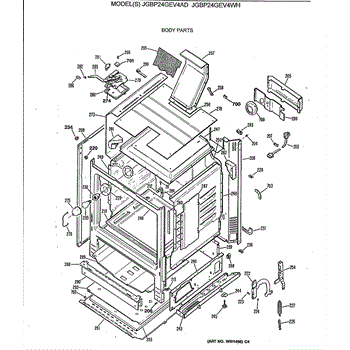

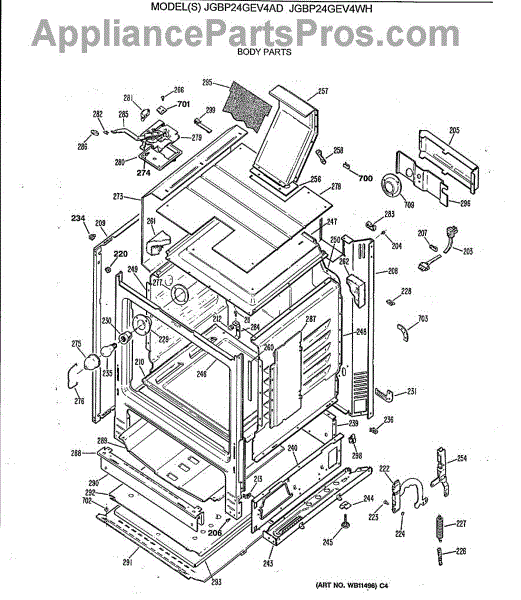

Parts for Ge JGBP24GEV4WH: 04 - Body Parts

Replacement power cord for gas ranges. Connects your unit to the wall outlet. Replace if cord is worn, cut, heat-damaged, or causing burning smells.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Rear housing panel that covers the back of your range. Replace this cover if it's cracked, dented, rusted, or missing to restore your appliance's appearance.

Mounting screw for refrigerator doors, shelves, kickplates, and interior components. Replace missing, stripped, or corroded screws during repairs.

Secures your range power cord at cabinet entry to prevent wire damage and disconnection. Replace if cord is loose or clamp is cracked. Confirm fit with your model number.

Color: White.

8-18 x 1/2 inch screw for gas range assembly. Replace when missing, stripped, or corroded during oven repairs or maintenance work.

Speed nut clip secures your range oven bottom panel. Replace when missing or damaged to prevent panel rattling. Verify fit with your model number.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Metal safety bracket that secures freestanding ranges to the floor or wall. Replace if bent, broken, or missing to prevent appliance tipping hazards.

Right-side guide support secures sliding drawer or shelf rails on your range. Replace if cracked, broken, or worn to restore smooth tracking and alignment.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Secures wiring harnesses in your range. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number before ordering.

Left hand side

Right hand side

Frame weld assembly for ranges. Structural component that forms part of the cabinet framework. Replace if bent, cracked, or damaged during installation or use.

Replaces the right-hand side panel of your gas range oven. Needed when the original panel is cracked, dented, rusted, or structurally damaged.

Left side panel for gas range ovens. Replaces cracked, damaged, or missing exterior side panels. Structural component for oven cabinet assembly.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Left hand side

Right hand side

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation wrap that lines the oven cavity to reduce heat loss and dampen sound. Replace if torn, compressed, missing, or damaged during repairs.

Replaces cracked or missing oven back insulation in your range. Installs behind the oven cavity to provide heat protection and sound dampening.

Mounting screw kit for securing range components and panels. Replace missing, stripped, or damaged screws. Package includes 12 screws for installation.

A replacement 10-24 x 1/4 machine screw that secures panels and components in place, restoring proper fit and reducing rattles or loose parts. Small but essential for assembly and trim fastening on compatible appliances. What it does:

• Fastens appliance panels, brackets, and small components using a 10-24 threaded connection
• Stops loose or rattling trim, control panels, and internal brackets when the original screw is missing or damaged
• Matches OEM thread and length for correct fit where specified
• Used wherever a short 10-24 machine screw is required to secure parts

• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Replace with the same part number to ensure proper thread engagement and fit
• Disconnect power and follow appliance safety procedures before accessing internal areas

Right hand side

Left hand side

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Replacement shield latch for electric ranges. Installs over the door latch mechanism to protect internal components. Order a new one if broken or missing.

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Support bracket for gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing to restore proper fit.

Replacement control knob latch for your range. Secures the control knob to the panel. Order a new latch if yours is broken, cracked, or missing.

Right hand side

Left hand side

Secures and supports internal components in your range. Replace this brace if it's bent, broken, or missing to ensure proper alignment and stability.

Stamped metal shield that protects the oven's lower cavity and insulation from excessive heat. Replace if cracked, rusted, corroded, or damaged.

Metal radiation shield that mounts inside your range to protect internal components from heat. Replace if cracked, bent, or dislodged during service.

Bottom guard for gas ranges. Installs at the base to protect internal components. Replace if cracked, damaged, or missing to maintain appliance integrity.

Protective bottom guard for your range. Shields internal components from debris and damage. Replace if cracked, bent, or missing for proper protection.

Middle

Mounting bracket secures oven components inside your range. Replace if bracket is bent, cracked, broken, or missing to restore proper structural support.
