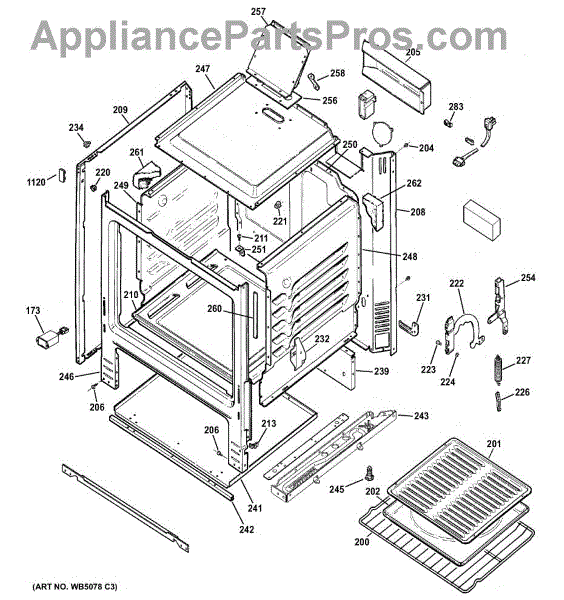

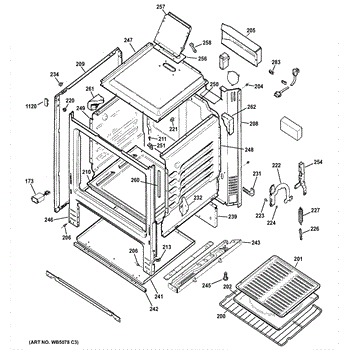

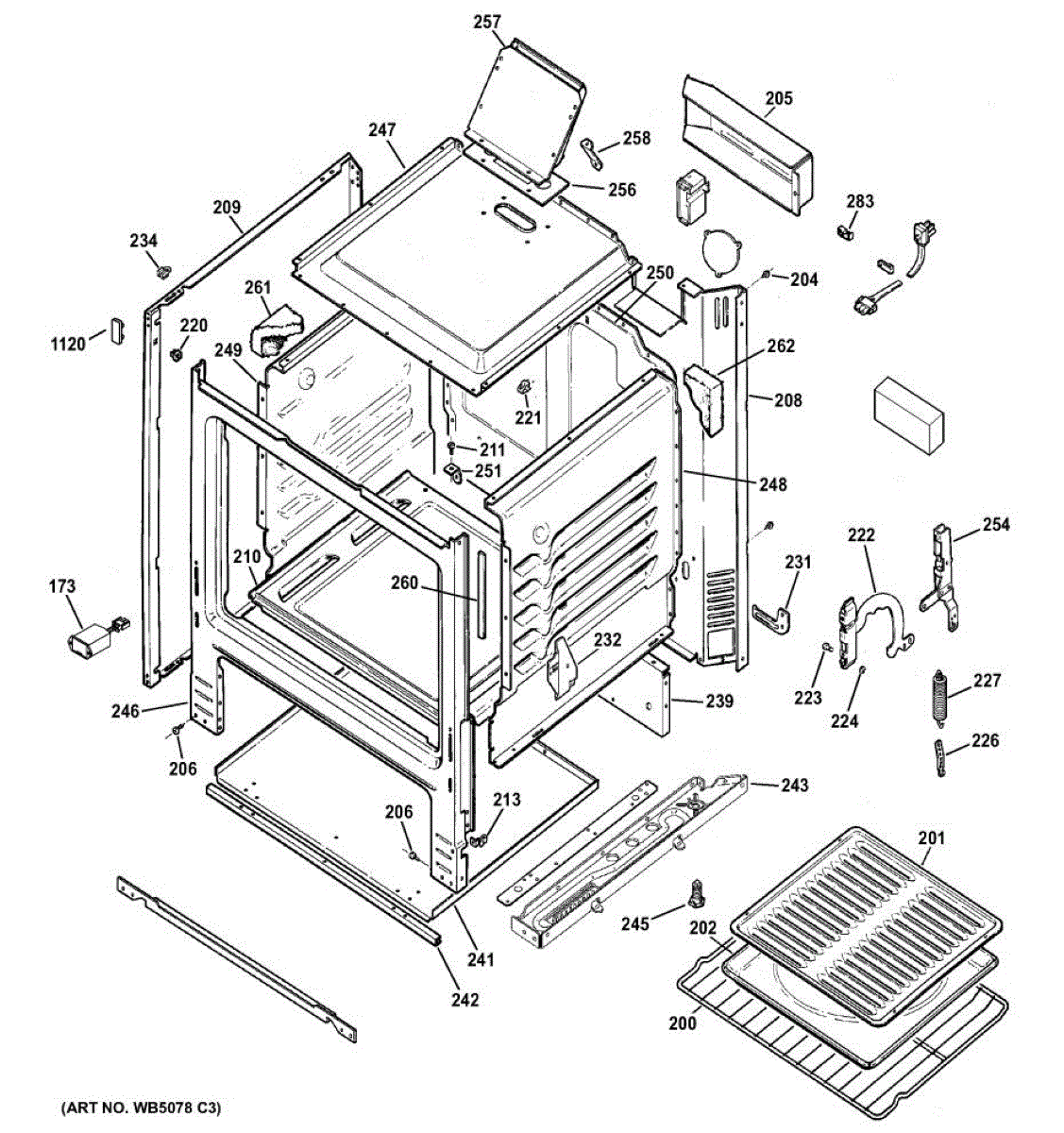

Parts for Ge JGBS14PCD1WW: 03 - Body Parts

This battery case is the replacement holder that secures the appliance batteries and provides stable contacts for reliable power to the control board. It restores proper battery placement and contact without replacing the batteries themselves. What it does:

• Holds and secures appliance batteries in the correct position
• Provides electrical contacts so the control board receives battery power
• Can resolve symptoms like a blank clock/display, lost settings, or failure to retain memory
• Prevents intermittent power caused by loose or corroded battery connections

• Disconnect power to the appliance before beginning work; remove all batteries first
• Inspect battery contacts for corrosion; clean or replace batteries if needed
• Install the case in the original orientation and ensure batteries seat firmly
• Dispose of old batteries properly and follow local regulations

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

Size: 8-18 x 1/2 inch.

This capillary clip secures the oven thermostat's sensing bulb/capillary to the cavity wall so it stays correctly positioned for accurate temperature control. Replace a missing or damaged clip to prevent a sagging bulb and erratic oven performance.

• Holds the thermostat capillary tube/sensing bulb in place inside the oven
• Helps maintain consistent temperature regulation by keeping the bulb properly located
• Direct replacement for a broken, corroded, or missing clip
• Symptoms include a loose or dangling bulb, uneven baking, or temperature swings

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the oven cavity; locate the thermostat sensing bulb and capillary along the wall or back panel
• Position the bulb/capillary and secure with the new clip; avoid kinking or crushing the tube
• Restore power, and test operation

This oven door hinge assembly controls the door's movement and keeps it sealed against the frame. Replacing a worn hinge restores smooth opening and a tight close, helping maintain temperature and consistent cooking performance.

• Provides spring-assisted pivot to support the oven door during opening and closing
• Maintains alignment and helps the door stay fully closed against the gasket
• Direct replacement for bent, weak, or broken hinges
• Common symptoms: door won't close fully, drops or slams open, sits uneven, squeaks, or allows heat to escape

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door; engage hinge locks or insert hinge pins and support the door while lifting it off
• Springs are under tension—use caution and wear gloves/eye protection
• After replacement, check door alignment and gasket seal; many replace both hinges together for even operation

Clip for door hinge.

This anti-tip arm is a metal safety bracket that helps secure a freestanding range to the floor or wall to reduce the risk of the appliance tipping forward. It provides a simple, passive safeguard that improves kitchen safety. What it does:

• Anchors the range to help prevent forward tipping when a heavy load is placed on the open oven door
• Reduces rocking or shifting of the appliance during normal use
• Addresses the symptom of a range moving forward when the door is opened or when the cooktop is bumped
• Works as a passive restraint that engages when the range is tilted forward

• One anti-tip arm

• Follow the appliance manufacturer's instructions and local codes for proper attachment location and method
• Installation may require lifting or tilting the range; have a second person assist for safety
• Verify the mounting surface is suitable for secure fastening and use appropriate fasteners
• Disconnect power and ensure the appliance is stable and cool before positioning or fastening the bracket

Anti-tip kit.

This is the right side hinge guard. For left side use WB34K4.

This is the left side hinge guard. For right side use WB34K3.

This is a right-side guide support that secures and aligns a sliding component so drawers or shelves operate smoothly and stay on track. Replaces a worn or broken guide support to restore proper movement and seating. What it does:

• Holds the right-side guide rail or track in place so the drawer or shelf slides evenly
• Prevents the drawer or shelf from sagging, binding, or falling off the track
• Restores proper alignment when the original guide is cracked, broken, or worn
• Works with the existing rail, clips, and mounting hardware to maintain smooth travel

• Disconnect power or unplug the appliance before accessing internal components
• Access may require removing the drawer, shelf, or front panel—use basic hand tools
• Inspect related clips, rails, and fasteners and replace any damaged pieces for best results

This bottom panel replaces the damaged lower oven floor panel to restore proper support and heat protection for cookware and internal components. It helps stop rattling, sagging, and hot spots that can affect bake performance. What it does:

• Provides a stable, heat-resistant surface at the bottom of the oven cavity
• Protects underlying components from spills, drips and direct heat
• Prevents sagging or warped oven floor that can cause cookware instability
• Can reduce rattling or vibration caused by a loose or damaged panel

• Disconnect power to the range before beginning any work.
• Remove oven racks and allow the oven to cool completely.
• Handle edges carefully; use gloves to avoid cuts and protect the finish.
• Installation typically requires removing access screws and aligning the panel into the oven floor supports.

This support base secures the oven cavity and provides a stable foundation for the lower oven assembly, helping keep internal components aligned and preventing shifts during use. It restores correct support and fit for safe operation. What it does:

• Holds and stabilizes the oven cavity and lower components to prevent sagging or misalignment
• Restores proper clearance and support for the oven floor and related parts
• Helps eliminate noises or movement caused by a loose or damaged support
• Supports safe, even operation by maintaining correct internal positioning

• One support base

• Designed to replace the factory support base;
• Basic hand tools typically required;
• Disconnect power and gas (if applicable) before performing service

This support base provides a stable mounting surface for the appliance's cooktop/range components, restoring proper alignment and reducing movement. It helps keep parts seated securely for safe, even operation. What it does:

• Provides structural support and stabilization for the cooktop/range assembly
• Keeps components aligned to prevent gaps, rubbing, or uneven surfaces
• Reduces rattling, vibration and movement during use
• Helps maintain proper clearance for adjacent components

• One support base

• Disconnect electrical power (and gas, if applicable) before starting work
• Follow OEM service manual for disassembly and reassembly steps
• Use proper tools and avoid over-tightening fasteners to prevent damage
• If the cooktop or appliance has glass components, handle with care and use protective gloves

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right oven side panel is a direct-replacement interior panel that restores proper fit and protection inside the oven cavity. It helps maintain correct airflow and keeps internal components covered for safe, reliable use. What it does:

• Replaces a dented, warped or rusted right-side oven interior panel
• Protects internal wiring, sensors and insulation from heat and debris
• Helps maintain even cooking by preserving the oven cavity shape
• Improves appearance by covering damaged or discolored metal

• Disconnect power to the range before starting any repair.
• Basic hand tools typically required; removal of oven racks and inner panels may be needed.
• Handle edges carefully — metal parts can be sharp.

This angle support is a small metal mounting bracket that stabilizes and secures components inside the appliance, helping keep shelves, panels, or assemblies aligned for reliable operation and safe use. What it does:

• Provides structural support for interior panels, shelves, or trim to prevent sagging or misalignment
• Holds assemblies in the correct position to reduce rattling and vibration during use
• Restores proper fit and clearance when a bent or broken bracket causes shifting
• Works with fasteners to anchor components where a right-angle connection is needed

• Inspect surrounding parts and fasteners; replace any damaged screws or clips as needed
• Use the correct size fastener and torque to avoid stripping or cracking adjacent parts
• Disconnect power and follow manufacturer safety guidelines before working near electrical components

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter
