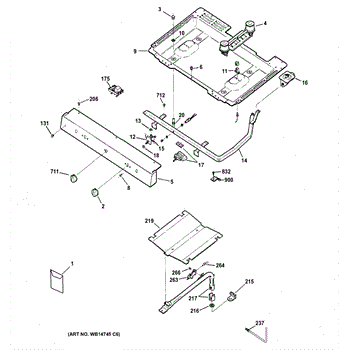

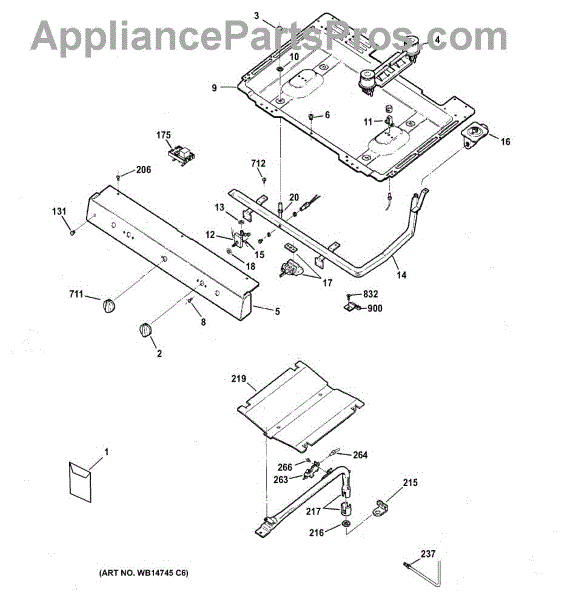

Parts for Ge JGBS14PCD1WW: 01 - Gas & Burner Parts

Color: White

Natural gas orifice spud.

This replacement orifice spud for the cooktop surface burner threads into the orifice holder to meter gas flow, helping ensure proper flame size and reliable ignition for consistent cooking performance. What it does:

• Meters gas flow to the surface burner through a calibrated opening
• Helps produce stable, properly sized flames for even cooking
• Replace if the original spud is clogged, stripped, or damaged
• Common symptoms include weak/low or no flame, yellow/orange flames, uneven heating, or delayed ignition

• 1 orifice spud

• Turn off the gas supply and disconnect power; allow the appliance to cool completely
• Remove grates, burner caps, and burner heads to access the orifice holder
• Use the correct spud for the specific burner position and gas type per your model documentation
• Start threads by hand and tighten snugly without overtightening; after reassembly, check for leaks with a soapy-water solution and verify ignition and flame

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

Size: 8 - 32 inch.

Top spark electrode for gas cooktops that creates the ignition spark for a single surface burner, restoring reliable burner lighting and stopping continuous clicking or failed ignition when replacing a damaged electrode. What it does:

• Produces the high-voltage spark that lights the burner when a cooktop control is turned on.
• Replaces cracked, broken, or corroded electrodes that fail to produce a spark.
• Addresses common symptoms like a burner that won't light, persistent clicking without ignition, or visible electrode damage.
• Works with the existing igniter system and burner assembly to re-establish proper ignition.

• Disconnect power to the appliance and shut off the gas supply before beginning any work.
• Handle porcelain, ceramic, and electrode tips carefully to avoid damage; do not bend or force the electrode.
• Ensure mounting hardware is secure and the electrode is positioned per the appliance's service diagram.

This is a harness burner box, and it is intended for use on certain ranges. This is a genuine replacement part made by General Electric. This part is comparable to a spark igniter switch. The harness burner box is what activates the heat switch in ranges and allows the cook top to begin heating according to the user preferences. A new harness burner box might be needed if the range is having difficulty turning on. Be sure the appliance is completely turned off before attempting a repair and always wear work gloves while working with wires.This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with ranges made by General Electric.

This round gas valve controls flow to a surface burner, providing smooth flame adjustment and reliable shutoff. Replace a worn valve to restore precise burner control and safe operation on your gas range or cooktop.

• Regulates gas to the burner as the control knob turns, from low simmer to full flame
• Common symptoms: burner won't light though the igniter sparks, flame won't adjust or shut off, gas odor near the knob, or a stiff/stripped valve stem
• Services one burner position; multiple valves are used on many gas ranges/cooktops
• Installs in the burner manifold/orifice holder location specified by the manufacturer

• Disconnect power and shut off the gas supply before servicing
• Note stem orientation; transfer fittings/brackets from the original valve as needed and use approved thread sealant where specified
• After installation, leak-test all joints with an approved solution before restoring gas
• Verify proper ignition and flame adjustment on the burner after replacement

This modulating thermostat regulates oven temperature by signaling the heater to cycle on and off, helping maintain the set cooking temperature for consistent baking and roasting results. What it does:

• Monitors oven temperature and modulates heating to help keep the oven at the selected setpoint
• Works with the oven control to reduce temperature swings and improve cook accuracy
• Common symptom: oven won't reach or hold set temperature
• Common symptom: uneven baking or inconsistent cooking results

• Disconnect electrical power to the appliance before starting any repair
• Follow OEM wiring and mounting diagrams;

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

Location: Right rear.

Location: Left rear.

Location: Right front.

Location: Left front.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

This pilot assembly lights and maintains the small pilot flame used to ignite the main burner on compatible gas ovens and ranges, helping the appliance heat reliably when operating. What it does:

• Provides the standing pilot flame that ignites the main burner when the oven or range calls for heat
• Helps ensure a consistent ignition source for reliable oven/range operation
• Common symptom: oven or range fails to light or takes long to ignite
• Common symptom: burner flames do not stay lit or the appliance cycles without heating

• Shut off the gas supply and power to the appliance before beginning service
• Handle small gas components carefully; inspect nearby tubing and fittings for damage or leaks
• Light sealing surfaces and fittings may require a leak test after installation (use soapy water or a gas leak detector)

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
