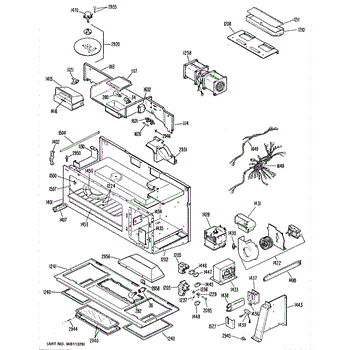

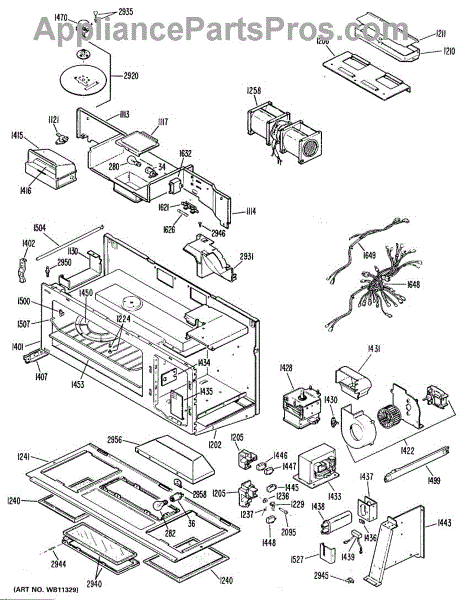

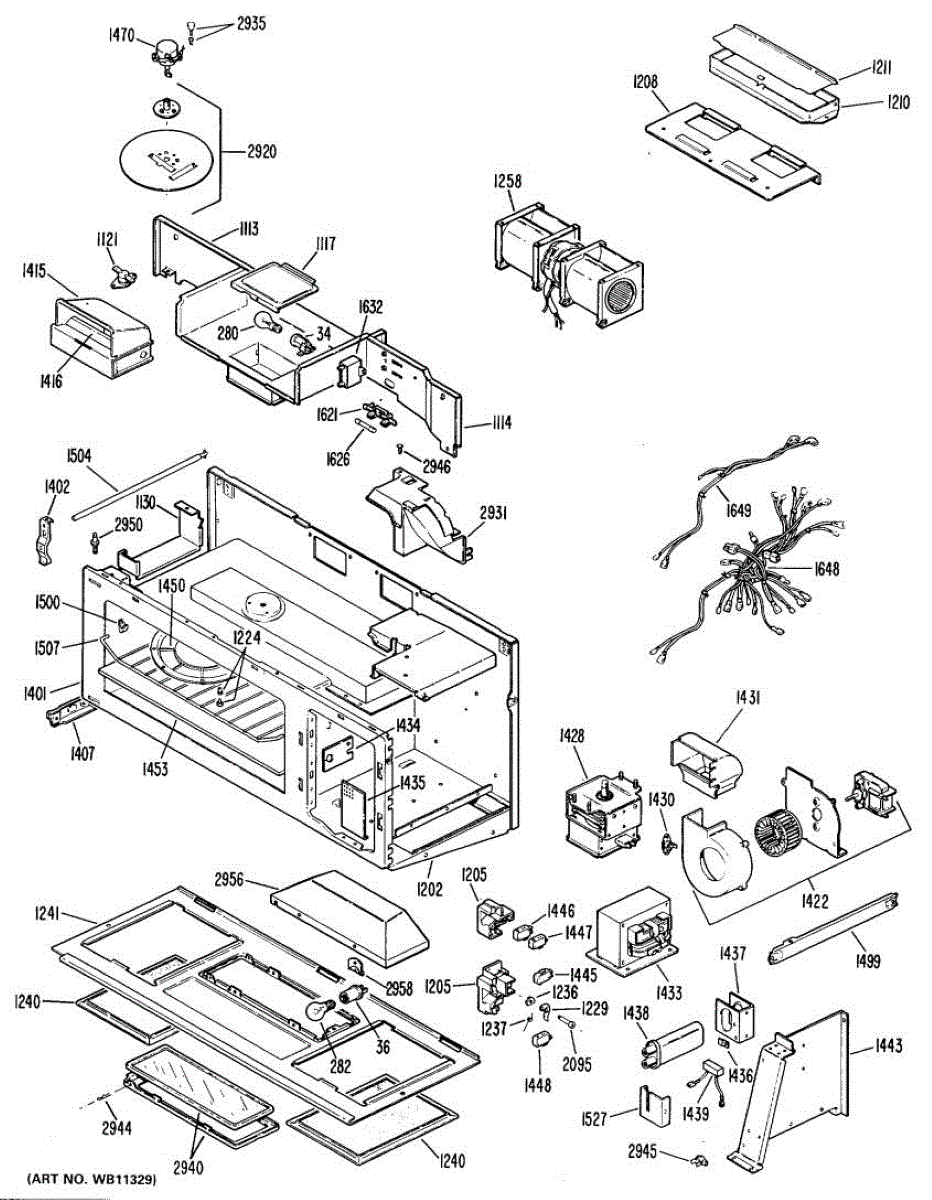

Parts for Ge JVM130H01: 02 - Section2 Parts

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Color: metallic. Measures about 7 inches wide by 10 inches deep.

Shaft mounting guide bracket for microwaves. Installs inside the cabinet to support and align the motor shaft. Replace if bent, cracked, or missing.

Microwave not heating or heating unevenly? A failed magnetron is the likely cause. This high-voltage tube generates microwave energy to cook food.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Ceramic

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

This small terminal pin connects a wire to an appliance's electrical terminal, restoring a secure electrical connection so components receive reliable power and operation. Ideal for repairing loose or damaged wire terminations. What it does:

• Provides a secure metal contact point for a wire at a terminal or connector
• Restores proper electrical continuity when a terminal end is worn, bent, or broken
• Helps eliminate intermittent power, arcing, or component failures caused by poor connections
• Used wherever a single-pin wire termination is required on the appliance harness

• Disconnect power before servicing to avoid shock or injury
• Remove the damaged terminal and ensure the replacement pin matches shape and size
• Crimp or seat the pin per OEM guidance; ensure a snug, corrosion-free connection
• If wiring or harness insulation is damaged, replace the harness
