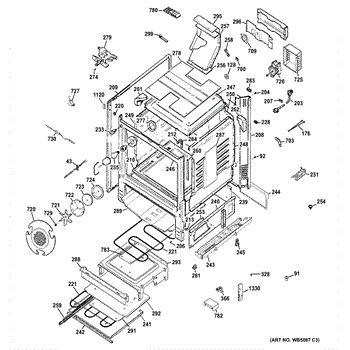

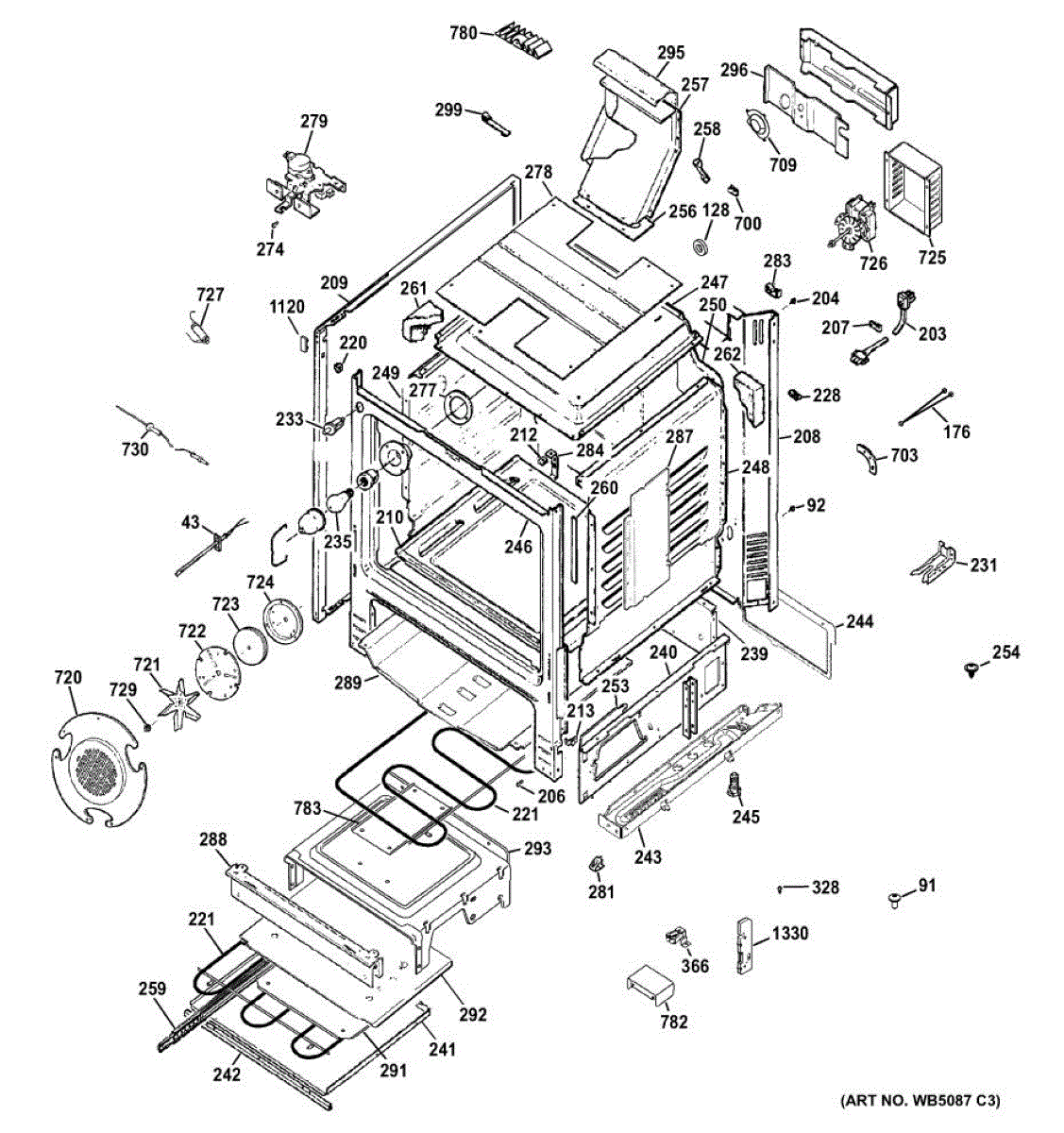

Parts for Ge PGB980SET2SS: 03 - Body Parts

The Temperature Sensor is an OEM part for GE ovens and ranges, accurately measures and controls the temperature within the oven cavity. This part ensures your oven heats to the desired temperature and maintains it throughout the cooking process, providing consistent and reliable cooking results.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, physical damage, or wear and tear over time that affects its accuracy.

Symptoms of a bad Temperature Sensor include:

• The oven not reaching the set temperature or displaying an error code related to temperature regulation.
• Unpredictable oven temperatures, leading to inconsistent cooking results.
• The oven taking longer than usual to preheat, or not heating at all, indicating that the sensor is not properly gauging and adjusting the temperature.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This cable clamp secures the appliance power cord where it enters the cabinet, protecting wiring from pull and chafe for safer, more reliable operation. Designed to hold the cord firmly in place and prevent accidental disconnection. What it does:

• Acts as a strain relief to prevent the power cord from pulling into or away from the appliance
• Protects wiring from abrasion and sharp edges at the entry point
• Helps maintain a secure electrical connection to reduce intermittent power issues
• Commonly used where the cord passes through a rear or bottom access panel

• Disconnect power before inspecting or replacing the clamp to avoid shock or injury
• Install at the cord entry so the clamp captures the cord jacket; tighten fastener securely but do not over-torque
• Verify the cord is correctly routed and not pinched when reassembling panels
• If any wiring or the cord jacket is damaged, replace the cord before restoring power

The Bottom Oven and Deflector Assembly is an OEM part for GE ranges. This assembly features both the bottom oven cavity and heat shield deflector above it. It allows for simultaneous cooking on two racks while protecting cabinets from excessive heat.

The deflector assembly works to direct warm air out from the bottom oven opening. It distributes heat evenly and prevents issues caused by concentrated airflow. Over time, cooking residue buildup may occur on these parts or cracks could form due to repeated heating.

Symptoms of a bad bottom oven and deflector assembly include:

• Excessive cabinet warming from bottom oven use
• Uneven cooking results within the bottom oven cavity
• Difficult air circulation or hot spots occurring

This authentic GE replacement restores like-new cooking performance. Featuring durable manufacturing and a premium fit, it maintains oven functionality for more efficient meal preparation.


This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

A top heating element that restores heat to an electric cooktop so pots and pans heat properly. Fits the range cooktop surface and replaces a damaged or non-heating radiant element for reliable cooking. What it does:

• Provides the cooking heat on the cooktop surface; transfers power into radiant heat for cookware
• Commonly replaces elements that no longer heat, heat unevenly, or fail to glow/hot
• Works with the cooktop's surface/controls to regulate cooking temperature
• Helps eliminate cold spots or intermittent heating caused by a defective element

• Disconnect power at the breaker before servicing the range to avoid shock.
• Handle the element and surrounding ceramic/glass surface carefully to prevent cracking or damage.
• Installation may require accessing the cooktop terminals from under the surface; keep track of terminal connections.

This is the oven's bottom/bake heating element that provides the radiant heat used for baking and roasting. Replacing a failed element restores proper oven heating and helps return cook performance to normal. What it does:

• Heats the oven cavity during bake and roasting cycles so food reaches set temperatures.
• Failsafe indicator: oven won't reach or hold set temperature or baking is uneven.
• May show visible signs like breaks, blistering, or no glow when the oven is on.
• Restores even heating when the element is the source of the problem.

• Always disconnect power to the appliance at the breaker before starting work and allow the oven to cool completely.
• Access may require removing oven racks and the back panel or interior panel; handle the element gently to avoid damage.
• Inspect terminal connections for corrosion and tighten or replace fasteners as needed.

This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

This plunger switch is the push-style electrical switch that completes a circuit when an actuator is depressed, restoring reliable on/off signaling. Use it to replace a worn or broken plunger switch that causes intermittent or non-responsive operation. What it does:

• Closes an electrical circuit when the plunger is pushed, sending a signal to the appliance control.
• Commonly used where a door, lever or dispenser actuator must register a position or user input.
• Can correct symptoms like intermittent operation, a dispenser or mechanism that won't activate, or a stuck/unresponsive actuator.
• Acts as a direct mechanical-to-electrical interface—no electronics required.

• Disconnect power (unplug or turn off breaker) before servicing to avoid shock.
• Remove the access panel or housing to reach the switch; note actuator orientation before removal.
• Disconnect terminals or harness, then swap the old switch for the new one; reconnect terminals securely.
• Test the plunger action and appliance function before reinstalling panels.

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom range panel is the lower interior/exterior panel that supports and protects the oven cavity and heating components. It restores proper airflow and keeps the oven underside sealed from spills and debris. What it does:

• Replaces a bent, rusted or missing lower oven panel to improve oven cleanliness and safety
• Helps maintain proper airflow under the oven cavity for consistent heating
• Covers and protects wiring and components beneath the oven from food and moisture
• Reduces drafts into the oven cavity caused by damaged or ill-fitting panels

• One bottom range panel

• High-level swap: remove oven drawer or lower access, unfasten retaining screws, replace panel, and refasten
• Disconnect power to the range before beginning any service
• Wear gloves to avoid sharp edges on metal panels and protect finished surfaces during installation

This support base is the structural mounting piece that secures the appliance cabinet and helps keep components aligned for stable operation. Replacing a worn or damaged support base restores proper cabinet support and reduces vibration. What it does:

• Provides a stable mounting point for the appliance cabinet and internal components
• Helps maintain alignment of panels and doors for correct sealing and operation
• Reduces excessive vibration and rattling caused by a broken or cracked support
• Prevents further wear to adjoining parts by restoring proper support

• Disconnect power (and water, if applicable) before beginning any repair.
• Inspect surrounding clips and fasteners; replace any damaged hardware for a secure fit.
• Some models may require partial disassembly of the cabinet to access the support base.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

This slide and bearing assembly restores smooth, stable movement to a refrigerator drawer. It replaces worn slides that cause sticking, sagging, or noisy operation so drawers open and close properly. What it does:

• Provides the sliding track and bearing surfaces for a refrigerator drawer to glide smoothly
• Prevents drawer sagging or misalignment caused by worn or damaged slides
• Reduces sticking, grinding, or noisy drawer movement
• Helps ensure proper drawer closure and even weight support

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the drawer and any obstructions for clear access; keep track of fasteners
• Compare the new part to the original before installing
• Basic hand tools are typically required

This slide and bearing assembly restores smooth, stable movement to a range or wall-oven rack. It replaces worn sliding hardware so racks move in and out reliably and help keep heavy bakeware supported. What it does:

• Replaces the worn slide and bearing that guide an oven rack for smooth, controlled motion
• Prevents rack binding, sagging, slipping or uneven movement when pulling racks in or out
• Reduces scraping, grinding or rattling noises caused by damaged slide hardware
• Helps keep racks level so dishes sit securely during use

• Disconnect power to the appliance and allow the oven to fully cool before starting
• Remove oven racks and any trim pieces that block access to the slide assembly
• Basic hand tools are typically required; do not force parts or overtighten fasteners

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

This capillary clip secures the oven thermostat's sensing bulb/capillary to the cavity wall so it stays correctly positioned for accurate temperature control. Replace a missing or damaged clip to prevent a sagging bulb and erratic oven performance.

• Holds the thermostat capillary tube/sensing bulb in place inside the oven
• Helps maintain consistent temperature regulation by keeping the bulb properly located
• Direct replacement for a broken, corroded, or missing clip
• Symptoms include a loose or dangling bulb, uneven baking, or temperature swings

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the oven cavity; locate the thermostat sensing bulb and capillary along the wall or back panel
• Position the bulb/capillary and secure with the new clip; avoid kinking or crushing the tube
• Restore power, and test operation

Right hand side

Left hand side

This lower heat shield is a stamped metal shield that protects the oven's lower cabinet area and surrounding components from excessive heat. It helps maintain safe operation and reduces heat transfer to nearby parts. What it does:

• Shields the oven's lower cavity and insulation from direct heat
• Prevents heat-related damage to the range cabinet and nearby components
• Can reduce hotspots that cause smoking or burning odors
• Restores proper airflow and clearance under the oven when damaged or missing

• One lower heat shield

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove oven drawer and access panels to reach and replace the shield
• Use gloves to protect hands from sharp metal edges during installation
• Tighten fasteners securely but do not overtighten—replace any damaged mounting hardware

This replacement lamp cover protects and diffuses interior appliance light for even illumination and safe bulb containment. It restores a cracked, cloudy, or missing light lens to improve visibility inside the compartment. What it does:

• Protects the interior light bulb from impact, moisture, and food debris.
• Diffuses and softens the bulb's light for more even interior illumination.
• Stops rattling or falling lens issues caused by a cracked or broken cover.
• Helps prevent direct contact with the hot bulb and reduces glare.

• One lamp cover / light diffuser.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Remove the old cover carefully and dispose of any broken pieces safely.
• Handle the replacement cover gently to avoid cracks; align and snap/slide into place per the original mounting.
• After installation, restore power and replace bulb if still dim or nonfunctional.

Replacement fan blade that mounts to the motor shaft to circulate air inside the appliance, restoring airflow and reducing vibration or noise from damaged or bent blades. Works with the fan motor to help maintain proper cooling and ventilation. What it does:

• Spins on the motor shaft to move air through the appliance's cabinet or evaporator area.
• Restores even airflow for more consistent cooling and performance.
• Reduces excessive noise and vibration caused by cracked, warped, or missing blades.
• Helps prevent airflow-related issues such as warm spots or slow cooling when the fan is not operating properly.

• Disconnect power to the appliance before servicing to avoid electric shock or injury.
• Remove interior panels or housing to access the fan; handle the blade carefully — edges can be sharp.
• Slide the blade onto the motor shaft and secure per OEM method (set screw, clip, or hub); ensure proper alignment and rotation direction.
• Test fan operation after installation and reassemble panels securely.

Back

This motor drives the oven's convection fan to circulate hot air for even, consistent baking and roasting. Replace a noisy or stalled motor to restore proper airflow and uniform temperatures throughout the cavity.

• Spins the convection fan to move heated air across all racks
• Helps reduce hot and cold spots for more even cooking results
• Failure signs include the fan not running, running slowly, or making loud humming/grinding/squealing noises
• Symptoms can include uneven baking/roasting, longer preheat times, and poor browning

• Disconnect power at the breaker before servicing
• Access varies by model; remove appropriate panels to reach the motor and fan
• Transfer the existing fan blade and any reusable mounting hardware if your model uses separate parts
• After installation, ensure the blade spins freely and clears the shroud before restoring power

This is a genuine OEM replacement nut that is used on convection oven fans. This nut holds the fan onto the spindle. If the nut becomes lost during repairs to the fan, it will need to be replaced before the fan will work. This nut locks the fan to the spindle to turn and move the air around inside the oven. The fan helps the food to cook more evenly and reduces areas in the oven that are not cool enough or hot enough. If the fan is not working, the convection oven will not cook correctly.Convection ovens are different from regular ovens, and the fan is part of the reason. Convection ovens use the fan and an exhaust system to move the heat around inside the oven to cook food more evenly and faster. Many convection ovens have a setting that allows the oven to be used as a regular oven. If the nut is missing and the fan is inoperable, the oven can be used for regular cooking if it has this feature. Otherwise, the convection oven should not be used until the nut is replaced.This nut is a silver metal replacement part that is sold individually. It is designed for use in convection ovens made by GE and Kenmore.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small rubber bumper that cushions contact points to reduce noise and prevent wear on moving appliance parts. Fits where a soft stop or spacer is needed to protect surfaces and quiet door or panel movement. What it does:

• Acts as a shock absorber to cushion impact between moving parts or panels
• Reduces rattling and vibration for quieter operation
• Prevents metal-to-metal contact that can cause surface wear or chipping
• Maintains proper spacing where a soft stop or spacer is required

• Typically presses or snaps into a mounting hole or onto a stud; orientation before installing
• Clean mating surfaces to ensure a secure fit and proper adhesion if applicable
• Replace only when the old bumper is cracked, flattened, or missing
• Disconnect power and remove any obstructing panels if working near electrical components
