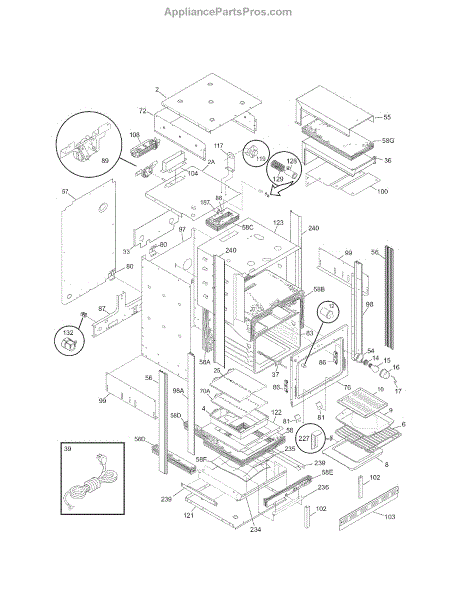

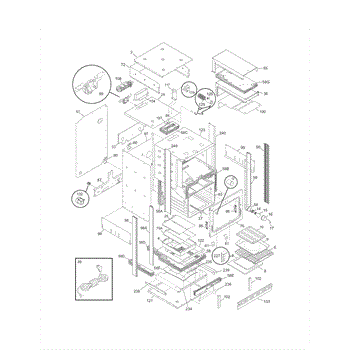

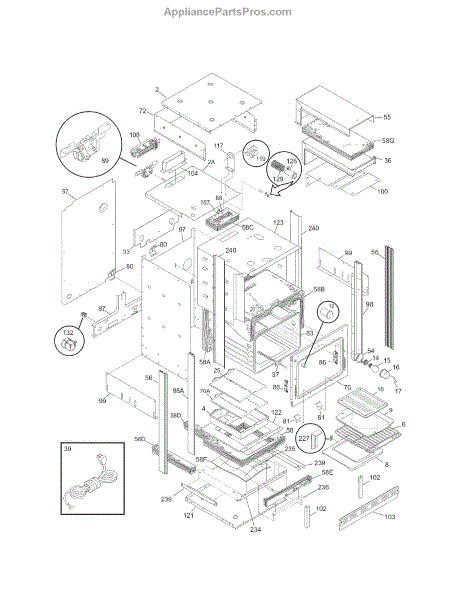

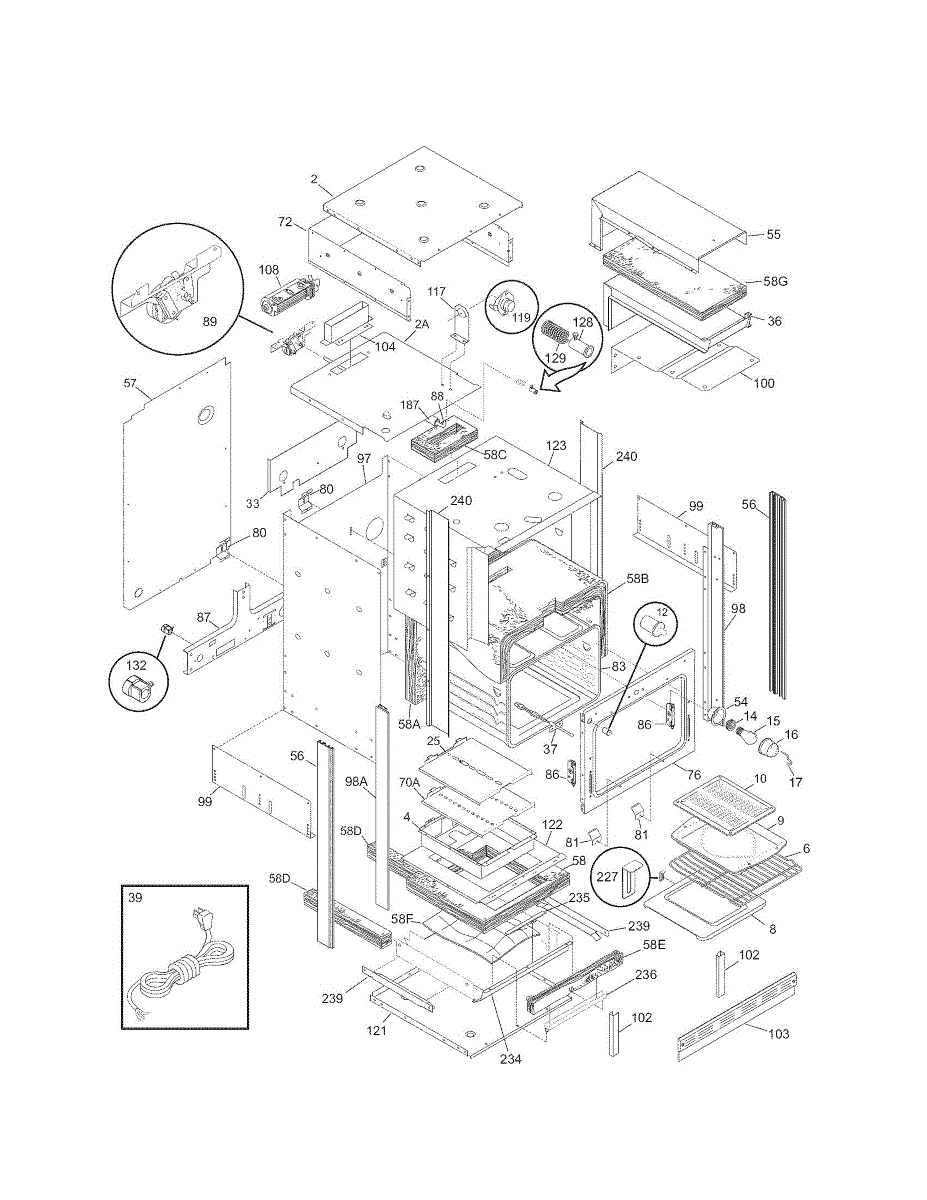

Parts for Kenmore 790.30552803 (79030552803, 790 30552803): Body Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Has three terminals.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This outer front panel replaces a damaged or dented cabinet front to restore the appliance's appearance and provide support for the door and front-mounted components. Durable sheet-metal construction keeps internal parts protected. What it does

• Restores the appliance's exterior appearance after dents, cracks, or corrosion.
• Provides structural support and mounting surface for the door, latch, and lower trim.
• Protects internal components from dust, debris, and accidental contact.
• Helps ensure proper door alignment and sealing when installed correctly.

• One outer front panel (quantity: 1)

• Disconnect power (and gas/water if applicable) before beginning any repair.
• Installation typically requires removing the door, trim, and/or control console to access mounting fasteners.
• Handle the panel carefully to avoid sharp edges and to prevent further cosmetic damage.
• Verify all mounting tabs and screws are secure and that the door aligns and closes properly after installation.

This trim piece is a replacement decorative edge that restores the finished look of the appliance door and covers the gap between panels. It helps maintain the original appearance after damage or loss. What it does:

• Replaces chipped, cracked, or missing door trim for a clean, factory appearance
• Covers exposed edges and helps keep the door seal area looking finished
• Restores proper alignment of surrounding trim and cosmetic surfaces
• Useful when door panels have been removed for repairs and the trim was lost or damaged

• One trim piece as shown

• Typically attaches with clips or screws; follow the correct procedure
• Remove items from the work area and support the door or panel to avoid damage during installation
• Use appropriate hand tools; avoid excessive force to prevent cracking the new trim
• Unplug the appliance before starting

This angle bracket secures the range's burner box assembly to the cooktop frame, keeping the gas burner and components aligned for safe, reliable operation. Fits into the burner box mounting points to stabilize the assembly. What it does:

• Holds the burner box in place to prevent movement and misalignment
• Helps maintain proper burner positioning for consistent ignition and flame
• Reduces vibration and rattling from the cooktop assembly
• Resolves symptoms like a loose or shifted burner box, unusual noises, or intermittent burner misalignment

• One angle burner box mounting bracket

• Turn off all power and gas to the appliance before beginning work
• Basic hand tools are typically required; tighten mounting fasteners to secure the bracket
• Inspect surrounding gaskets and hardware, and replace any damaged fasteners for a secure fit

This shield is a protective cover that helps guard internal fridge components and direct airflow inside the cabinet for reliable operation. It replaces a worn, damaged, or missing shield to help maintain proper airflow and component clearance. What it does:

• Covers and protects internal components from contact, debris, and incidental damage
• Helps direct airflow for consistent cooling and efficient evaporator performance
• Prevents ice buildup and interference with moving parts when installed correctly
• Commonly replaced when cracked, warped, or missing after service or impact

• One replacement shield

• Disconnect power to the appliance before starting any repair
• Installation generally requires removing interior panels or shelving to access mounting points
• Keep track of any screws or clips and reuse original hardware

This wiring harness connects key electrical components to the appliance's control system, restoring reliable power and signal routing so controls and features operate correctly. What it does:

• Routes power and signal between the control board and components (motors, lights, sensors)
• Replaces damaged or faulty wiring that can cause intermittent operation or failure
• Restores consistent electrical connections for proper feature function
• Helps eliminate issues caused by frayed, corroded, or broken connector leads

• Disconnect power to the appliance before inspecting or replacing the harness
• Compare connectors and wire colors to the original harness before installation
• Route harness clear of sharp edges and moving parts; secure connectors firmly

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This replacement 10-24 x 3/8 machine screw secures panels, brackets, and small components in compatible Frigidaire appliances. It restores proper fastening where a missing or damaged screw allows parts to shift or rattle. What it does:

• Fastens metal or plastic appliance parts such as trim, brackets, or small assemblies
• Helps eliminate movement, rattling, or loose connections caused by missing or stripped screws
• Restores safe, secure mounting for controls and hardware
• Matches OEM size for proper fit in designated threaded holes

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or nut driver to avoid stripping the head
• Start threads by hand to ensure alignment; tighten until snug — do not over-tighten
• Replace any stripped mating hardware or use correct thread engagement for secure fit

This is an oval-head square-drive screw used to secure interior and exterior appliance components. It provides a low-profile finish and corrosion-resistant black finish for a neat, durable hold. What it does:

• Fastens panels, brackets, trim pieces, and other sheet-metal or plastic parts
• Oval head gives a slightly countersunk, finished appearance when installed
• Square (Robertson) drive resists cam-out for easier tightening
• Common replacement when original screws are stripped, missing, or corroded

• Use the correct square-drive (Robertson) bit to avoid stripping the screw head
• Hand-start the screw to ensure proper alignment before using power tools
• Do not overtighten; stop once the part is snug to avoid thread or panel damage
• Disconnect power and follow appliance safety precautions before servicing

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

This replacement thermostat is a temperature-sensitive switch used in select cooking appliances. It opens or closes at a fixed setpoint to control or limit heat, helping protect components and restore dependable operation of the affected circuit. What it does:

• Senses temperature at its mounting point and opens/closes electrical contacts at a designed setpoint
• Controls power to a heating or related circuit (such as an element or fan) to maintain safe operation
• Helps prevent overheating and protects internal components
• Failure can cause no heat, heat that shuts off prematurely, or a related circuit that won't turn on/off

• 1 thermostat

• Disconnect power to the appliance before servicing
• Access location varies by model; refer to your service manual for exact placement
• Move wires one at a time from the old part to the new to maintain correct connections
• Reinstall in the same orientation; ensure firm mounting for proper temperature sensing and secure electrical connections
