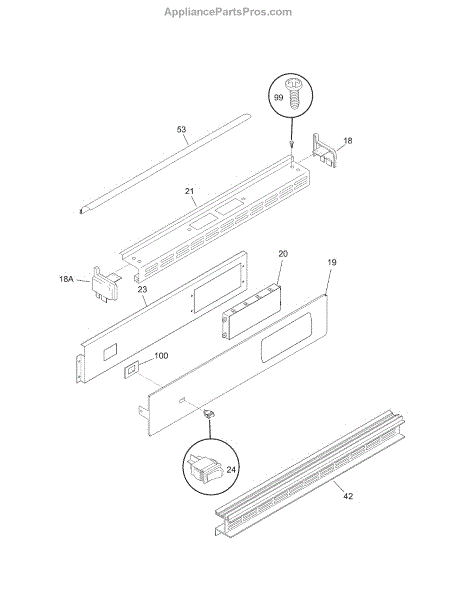

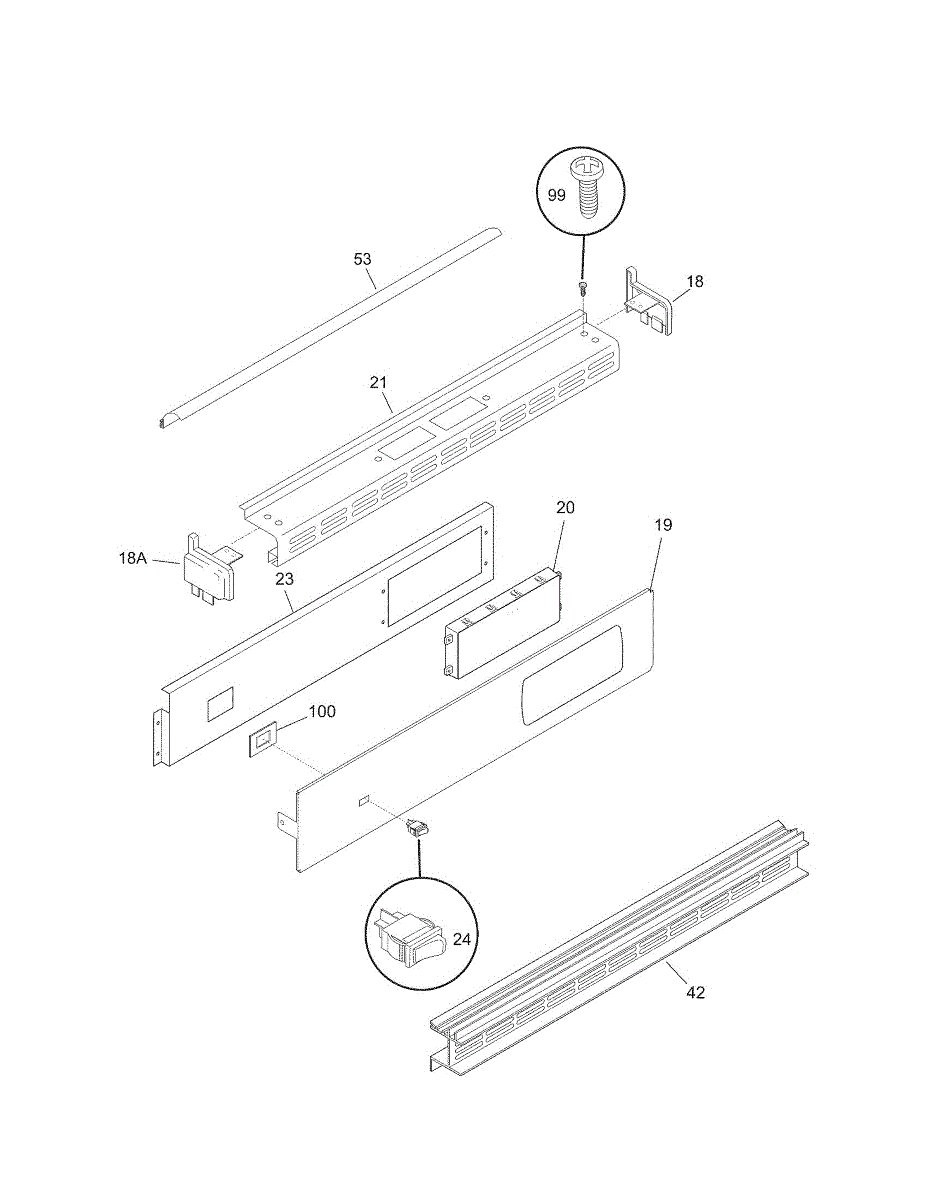

Parts for Kenmore 790.30552803 (79030552803, 790 30552803): Control Panel Parts

This electronic clock timer controls oven functions, displays time, and manages timed bake or delay-start settings for affected ovens. It restores digital timekeeping and timer-based cooking control for the range's user interface. What it does:

• Provides a digital clock display and keypad timer functions for baking and timed cooking.
• Enables delay-start and timed shutoff features when the oven's control supports them.
• Replaces a faulty or non-responsive oven clock/timer to restore normal time and timer operations.
• Common symptom: clock blank, unresponsive buttons, or oven not following programmed timed functions.

• One clock timer assembly.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Access typically requires removing the oven control panel or back panel; keep screws and fasteners organized.
• Handle the control gently and avoid contact with circuit board components; reconnect wiring to original terminals only.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is an oval-head square-drive screw used to secure interior and exterior appliance components. It provides a low-profile finish and corrosion-resistant black finish for a neat, durable hold. What it does:

• Fastens panels, brackets, trim pieces, and other sheet-metal or plastic parts
• Oval head gives a slightly countersunk, finished appearance when installed
• Square (Robertson) drive resists cam-out for easier tightening
• Common replacement when original screws are stripped, missing, or corroded

• Use the correct square-drive (Robertson) bit to avoid stripping the screw head
• Hand-start the screw to ensure proper alignment before using power tools
• Do not overtighten; stop once the part is snug to avoid thread or panel damage
• Disconnect power and follow appliance safety precautions before servicing

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components
