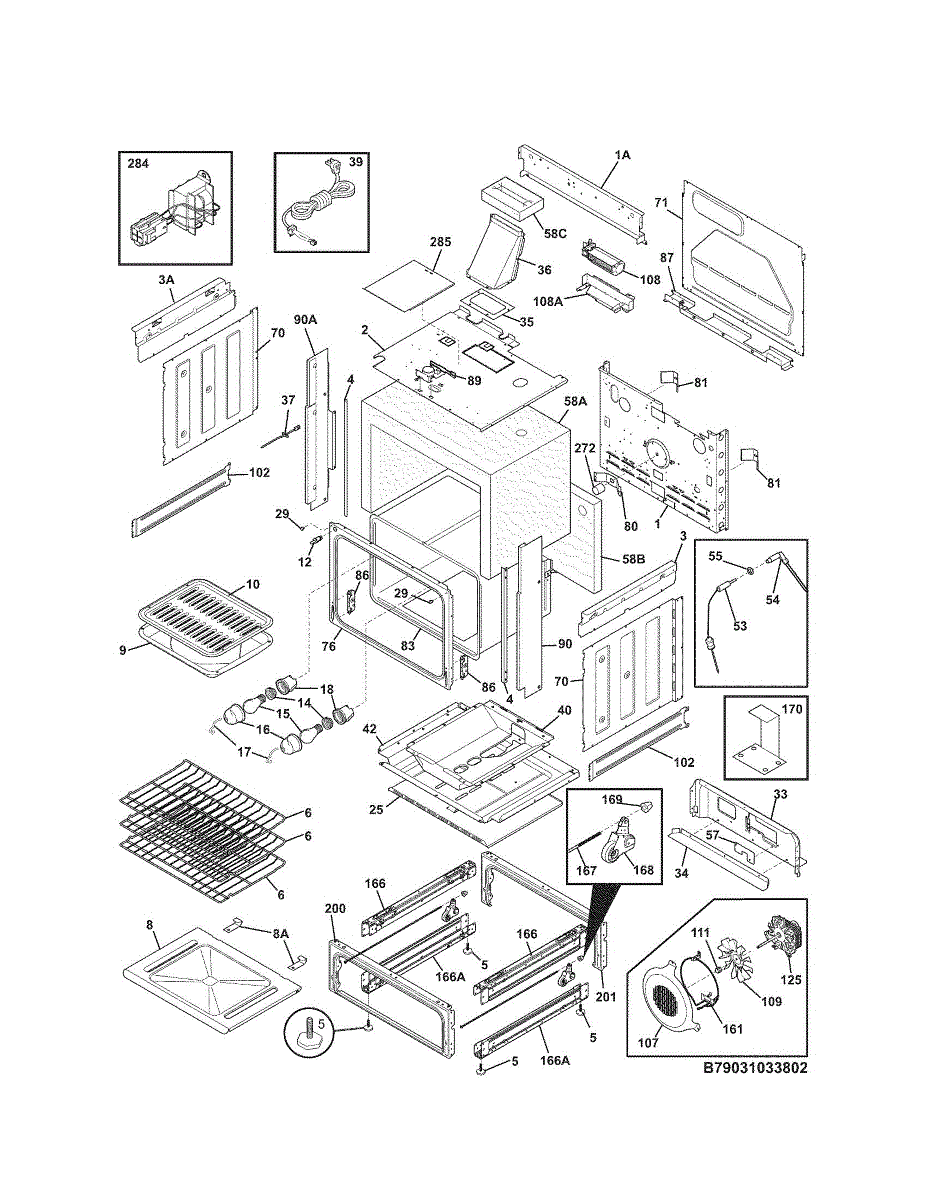

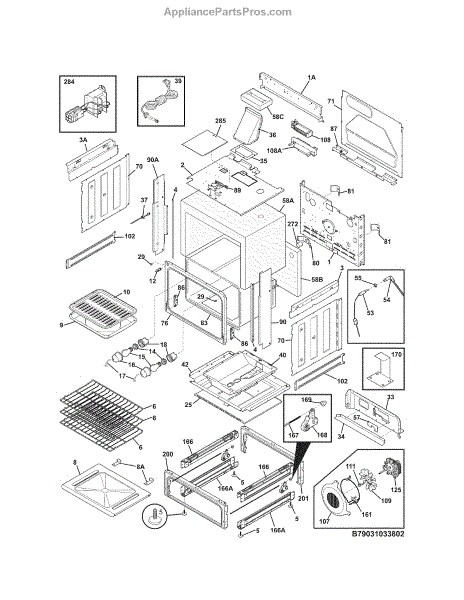

Parts for Kenmore 790.31034802 (79031034802, 790 31034802): Body Parts

Rear panel back for ovens and ranges. Replaces cracked, damaged, or missing exterior back panels. Essential structural part for cabinet integrity.

Screw that adjusts and secures the leveling leg to your range base or bracket. Replace if stripped, bent, or missing to restore stable footing and level your appliance.

The Rack is an OEM part for Frigidaire ovens. This rack provides a sturdy and reliable surface for baking and broiling. It's engineered to withstand high temperatures and support heavy dishes, ensuring your culinary creations are cooked evenly and efficiently.

Over time, oven racks can become warped or damaged due to the high heat they're exposed to or from supporting heavy cookware. This can lead to uneven cooking or difficulty sliding the rack in and out of the oven.

Symptoms of a bad rack include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or baking results
• Visible warping or damage
• Difficulty fitting the rack properly inside the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This door-activated plunger light switch controls the interior lamp by turning it on when the door opens and off when it closes, restoring proper interior illumination and preventing lights from staying on or failing to light. What it does:

• Detects door position and completes the circuit to power the interior light when the door opens.
• Replaces a worn, stuck, or broken door light switch that prevents the lamp from turning on.
• Common symptoms: interior light does not turn on, light stays on continuously, or light works intermittently.
• Simple, direct replacement for the door-mounted lamp switch assembly.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Access the switch from the door liner or hinge area; basic hand tools (screwdriver) are typically required.
• Handle the switch and wiring gently; confirm correct wiring orientation before reconnecting power.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

This control panel is the exterior console assembly that houses the oven/range controls and user interface, restoring a clean, functional front for the appliance. It provides the mounting and button/label surface for the range's control electronics. What it does:

• Provides the visible control surface and mounting for push-buttons, switches, and display components
• Restores labeled buttons and control access if the original panel is cracked, faded, or warped
• Helps protect underlying electronic components from spills and debris when intact
• Commonly replaced when buttons stick, labels wear off, or panel is physically damaged

• One control panel (console) as pictured

• High-level replacement; remove power (unplug or trip breaker) before starting
• May require removal of range trim, bezels, and disconnecting control harnesses; keep fasteners organized
• Handle gently to avoid scratching painted/printed surfaces; verify alignment before tightening

Fix F1, F3, or F10 error codes and inaccurate oven temperatures with this sensor. Simple DIY replacement takes about 30 minutes with basic tools.

Oven displaying probe error or reading temperature when unplugged? This meat probe monitors internal food temperature. Easy DIY replacement part.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

Insulation blanket that installs inside the range oven door to reduce heat transfer and dampen sound. Replace if torn, compressed, or missing.

Replacement insulation for range oven doors. Installs between door panels to retain heat and improve efficiency. Replace if compressed, torn, or missing.

Replace your oven's front panel frame if cracked, dented, or damaged. This structural component installs at the exterior of your range to restore appearance.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix F95 error codes or doors that won't lock with this oven door latch motor. Restores self-cleaning function. Moderate difficulty, 30-45 minute repair.

Control panel for electric ranges. Installs on the front of the unit, housing buttons and displays. Replace if cracked, damaged, or worn from use.

This is a black filler panel designed to mount on the left side of the range. It covers the gap between the range and adjacent cabinetry for a finished, built-in appearance. Replace this panel if it is cracked, warped, discolored, or missing.

Fix a range cooling fan that won't shut off or makes howling noises with this motor. Requires removing oven from cabinet and back panel access.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Fix noisy convection fan operation with this motor replacement. Restores quiet, even heating in your oven. Moderate DIY repair in 30-60 minutes.

Bake element restores oven heat by producing the radiant heat needed for baking and roasting. Replacing a worn or damaged bake element helps the oven reach and maintain set temperatures for more consistent cooking results. What it does:

• Heats the oven cavity to provide direct radiant heat for baking and roasting.
• Use when the element shows visible breaks, blistering, or does not glow when the oven is set to high.
• Common symptom indicators: oven won't reach set temperature, uneven baking, or longer-than-normal cook times.
• Works as a direct replacement for the oven's lower/bake heating element.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Allow the oven to cool completely and wear gloves to avoid sharp edges.
• Match the part to your model and terminal layout before installing; tighten connections securely.

Secures internal components to your range cabinet. Replace this bracket if the original is broken, bent, or missing to restore proper alignment.

Replacement screw for electric and gas ranges. Secures components and panels in place. Order a new screw if yours is stripped, missing, or damaged.

Replace worn, cracked, or missing range wheel and bracket assembly. Installs on the bottom of your range for smooth rolling and stability. Ideal fix for flat spots or broken wheels from frequent moving.

Secures your range to the wall or floor to prevent tipping hazards. Replace if missing, damaged, or when installing a new range. Essential safety bracket.

Structural frame and wheel assembly for electric ranges. Replaces damaged, bent, or broken frame components. Installs at base to support appliance mobility.

If your range control panel is unresponsive or the display won't light up, the control transformer may have failed. Supplies low-voltage power to controls.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, and components. Order a new screw if yours is stripped, missing, or damaged.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

This is a small lock washer used in range and oven assemblies to secure fasteners and prevent them from loosening due to heat and vibration. It is commonly used in mounting hardware for controls or other internal components. Replace this washer if it is deformed, cracked, or no longer holds the associated bolt or screw tightly in place.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Phillips pan head screw for securing panels and components in appliances. Replace missing, stripped, or corroded screws during repairs or maintenance.

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.

Spacer that maintains proper gap between components in your range or oven assembly. Replace if missing, worn, or damaged to restore correct fit and alignment.
