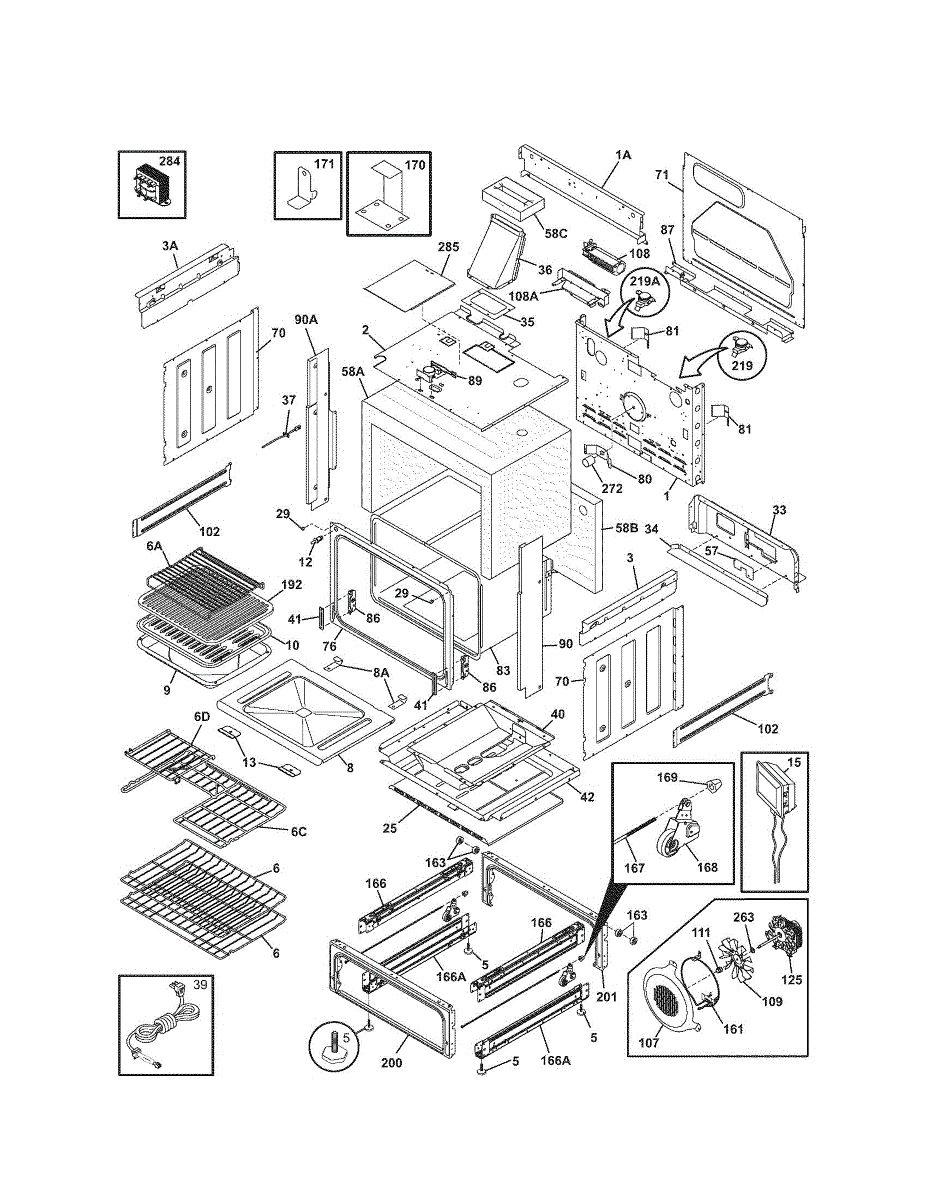

Parts for Kenmore 790.36709502 (79036709502, 790 36709502): Body Parts

Screw that adjusts and secures the leveling leg to your range base or bracket. Replace if stripped, bent, or missing to restore stable footing and level your appliance.

Broiler pan rack for electric ovens and ranges. Replaces cracked, warped, or missing racks. Installs inside broiler pan for elevated cooking.

The Rack is an OEM part for Frigidaire ovens. This rack provides a sturdy and reliable surface for baking and broiling. It's engineered to withstand high temperatures and support heavy dishes, ensuring your culinary creations are cooked evenly and efficiently.

Over time, oven racks can become warped or damaged due to the high heat they're exposed to or from supporting heavy cookware. This can lead to uneven cooking or difficulty sliding the rack in and out of the oven.

Symptoms of a bad rack include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or baking results
• Visible warping or damage
• Difficulty fitting the rack properly inside the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This door-activated plunger light switch controls the interior lamp by turning it on when the door opens and off when it closes, restoring proper interior illumination and preventing lights from staying on or failing to light. What it does:

• Detects door position and completes the circuit to power the interior light when the door opens.
• Replaces a worn, stuck, or broken door light switch that prevents the lamp from turning on.
• Common symptoms: interior light does not turn on, light stays on continuously, or light works intermittently.
• Simple, direct replacement for the door-mounted lamp switch assembly.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Access the switch from the door liner or hinge area; basic hand tools (screwdriver) are typically required.
• Handle the switch and wiring gently; confirm correct wiring orientation before reconnecting power.

Rubber bumper cushions oven or range doors to reduce noise and prevent metal contact. Replace if cracked, worn, or missing to restore proper seating.

This control panel is the exterior console assembly that houses the oven/range controls and user interface, restoring a clean, functional front for the appliance. It provides the mounting and button/label surface for the range's control electronics. What it does:

• Provides the visible control surface and mounting for push-buttons, switches, and display components
• Restores labeled buttons and control access if the original panel is cracked, faded, or warped
• Helps protect underlying electronic components from spills and debris when intact
• Commonly replaced when buttons stick, labels wear off, or panel is physically damaged

• One control panel (console) as pictured

• High-level replacement; remove power (unplug or trip breaker) before starting
• May require removal of range trim, bezels, and disconnecting control harnesses; keep fasteners organized
• Handle gently to avoid scratching painted/printed surfaces; verify alignment before tightening

Fix F1, F3, or F10 error codes and inaccurate oven temperatures with this sensor. Simple DIY replacement takes about 30 minutes with basic tools.

Insulation blanket that installs inside the range oven door to reduce heat transfer and dampen sound. Replace if torn, compressed, or missing.

Replacement insulation for range oven doors. Installs between door panels to retain heat and improve efficiency. Replace if compressed, torn, or missing.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

Control panel for electric ranges. Installs on the front of the unit, housing buttons and displays. Replace if cracked, damaged, or worn from use.

Front console fascia that houses range controls and display. Replaces cracked, faded, or damaged panel to restore appearance and make controls accessible.

Fix a range cooling fan that won't shut off or makes howling noises with this motor. Requires removing oven from cabinet and back panel access.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Convection fan not working or oven heating unevenly? This motor kit drives the fan to circulate hot air for consistent baking. Moderate DIY repair.

Bake element restores oven heat by producing the radiant heat needed for baking and roasting. Replacing a worn or damaged bake element helps the oven reach and maintain set temperatures for more consistent cooking results. What it does:

• Heats the oven cavity to provide direct radiant heat for baking and roasting.
• Use when the element shows visible breaks, blistering, or does not glow when the oven is set to high.
• Common symptom indicators: oven won't reach set temperature, uneven baking, or longer-than-normal cook times.
• Works as a direct replacement for the oven's lower/bake heating element.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Allow the oven to cool completely and wear gloves to avoid sharp edges.
• Match the part to your model and terminal layout before installing; tighten connections securely.

Spacer bumper for cooktops and ranges. Installs between components to provide proper clearance and prevent vibration. Replace if worn or missing.

Replacement mounting bracket for electric ranges. Secures components in place inside the range. Needed when original bracket is bent, broken, or missing.

Replacement screw for electric and gas ranges. Secures components and panels in place. Order a new screw if yours is stripped, missing, or damaged.

Replace worn, cracked, or missing range wheel and bracket assembly. Installs on the bottom of your range for smooth rolling and stability. Ideal fix for flat spots or broken wheels from frequent moving.

Secures your range to the wall or floor to prevent tipping hazards. Replace if missing, damaged, or when installing a new range. Essential safety bracket.

Structural mounting bracket for electric and gas ranges. Secures components in place. Replace if bent, broken, cracked, or missing to restore proper fit.

Removable griddle plate that sits over range burners to create a flat cooking surface. Replace yours if cracked, warped, or worn for even cooking.

Replace your range cooktop's trim frame if the paint is chipping, peeling, or worn. This decorative frame installs around the glass cooktop surface.

Replaces the refrigerator temperature control thermostat to restore consistent cooling. This direct-replacement thermostat helps regulate compartment temperature so food stays at the set level and reduces temperature swings. What it does

• Senses compartment temperature and switches the cooling system on and off to maintain the selected temperature range.
• Helps prevent temperature fluctuations that can cause food to spoil or freeze unexpectedly.
• Commonly used when the refrigerator runs continuously, won't reach set temperature, or cycles erratically.
• Works with the existing control knob and wiring—intended as a like-for-like replacement.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Basic hand tools are typically required; take care not to damage the sensor bulb or capillary if present.

Oven won't heat after self-clean cycle? This safety thermostat protects control components by shutting off power when temperatures exceed safe limits.

Size: 3/4 inch od x 1/4 inch id.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, and components. Order a new screw if yours is stripped, missing, or damaged.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
