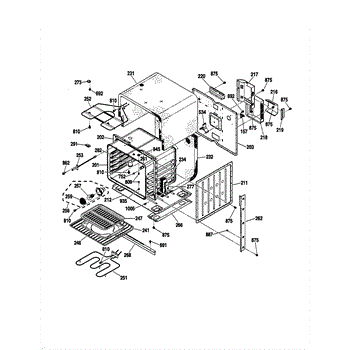

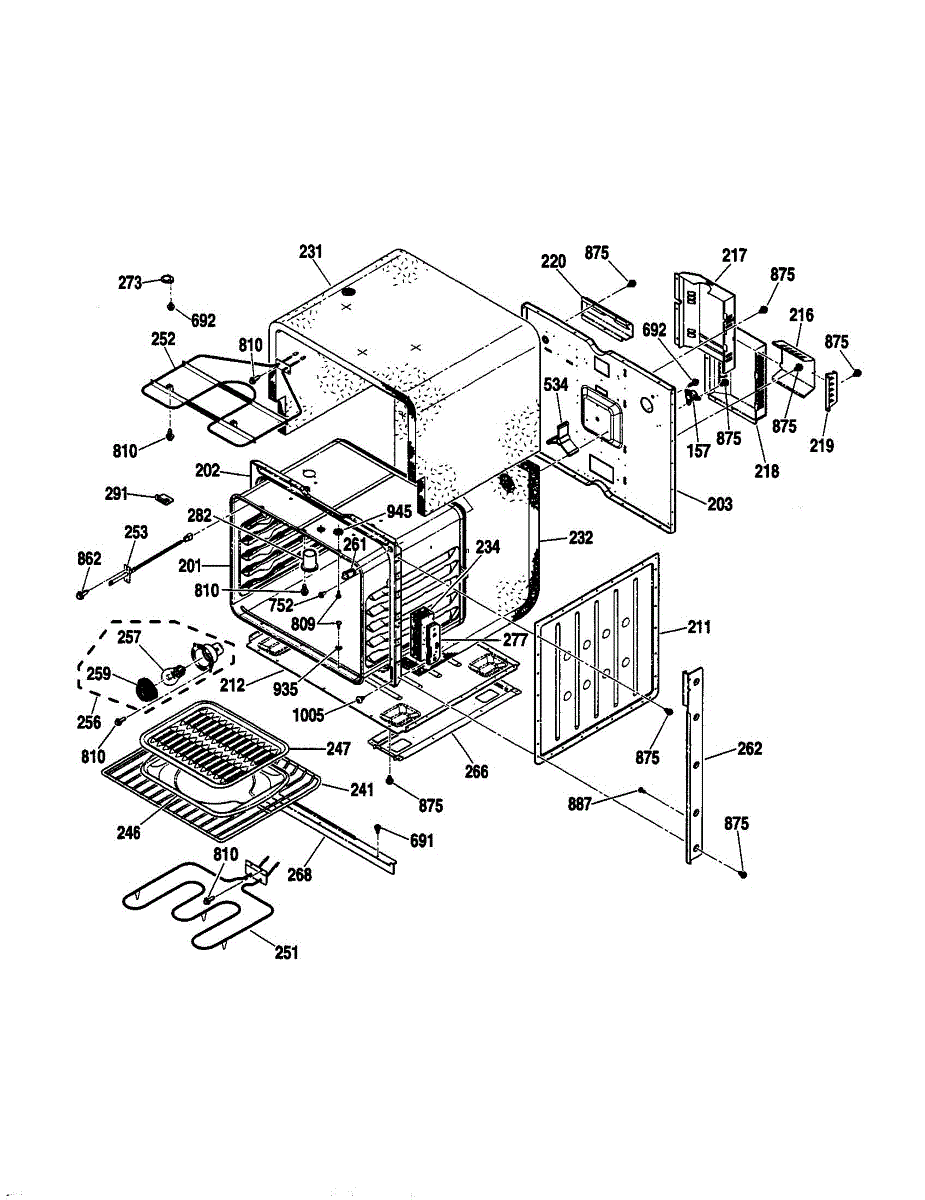

Parts for Kenmore 911.47604100 (91147604100, 911 47604100): Body Parts

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven not heating or baking unevenly? A faulty bake element is often the cause. This bottom heating element is straightforward to replace yourself.

Oven not broiling or browning food? The broil element provides high heat at the top of the oven. Simple 5-10 minute DIY fix with basic tools.

Holds and powers the interior oven light bulb for visibility while cooking. Replace if light flickers, won't turn on, or bulbs burn out frequently. Verify fit by your model number before ordering.

Replace your cracked or missing oven light lens to restore safe illumination. This cover protects the bulb and diffuses light for clear visibility while cooking. Confirm fit by model number.

This is a metal base rail that mounts inside the oven cavity and provides a track or support structure for internal components such as racks or drawer slides. It helps guide and stabilize parts as they slide in and out of the oven. Replace this rail if it is bent, corroded, or broken, causing racks or other components to sit unevenly or not slide smoothly.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Hinge receiver that mounts to the oven frame and accepts the door hinge arm. Replace if cracked, worn, or damaged to restore proper door support.

Replacement vent tube for wall ovens. Directs hot air and moisture from the oven cavity. Order a new tube if yours is damaged, cracked, or missing.

This is a protective cover used inside a cooking appliance such as a range or oven. It shields internal components from heat, grease, and debris during normal operation. Replace this cover if it is warped, cracked, corroded, or damaged, which can expose sensitive parts and affect cooking performance.

Replace your oven's cavity support plate if the original is cracked, broken, or missing. This structural component installs inside the oven to support the cavity.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Black. 8-18 AB HXW 3/8

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
