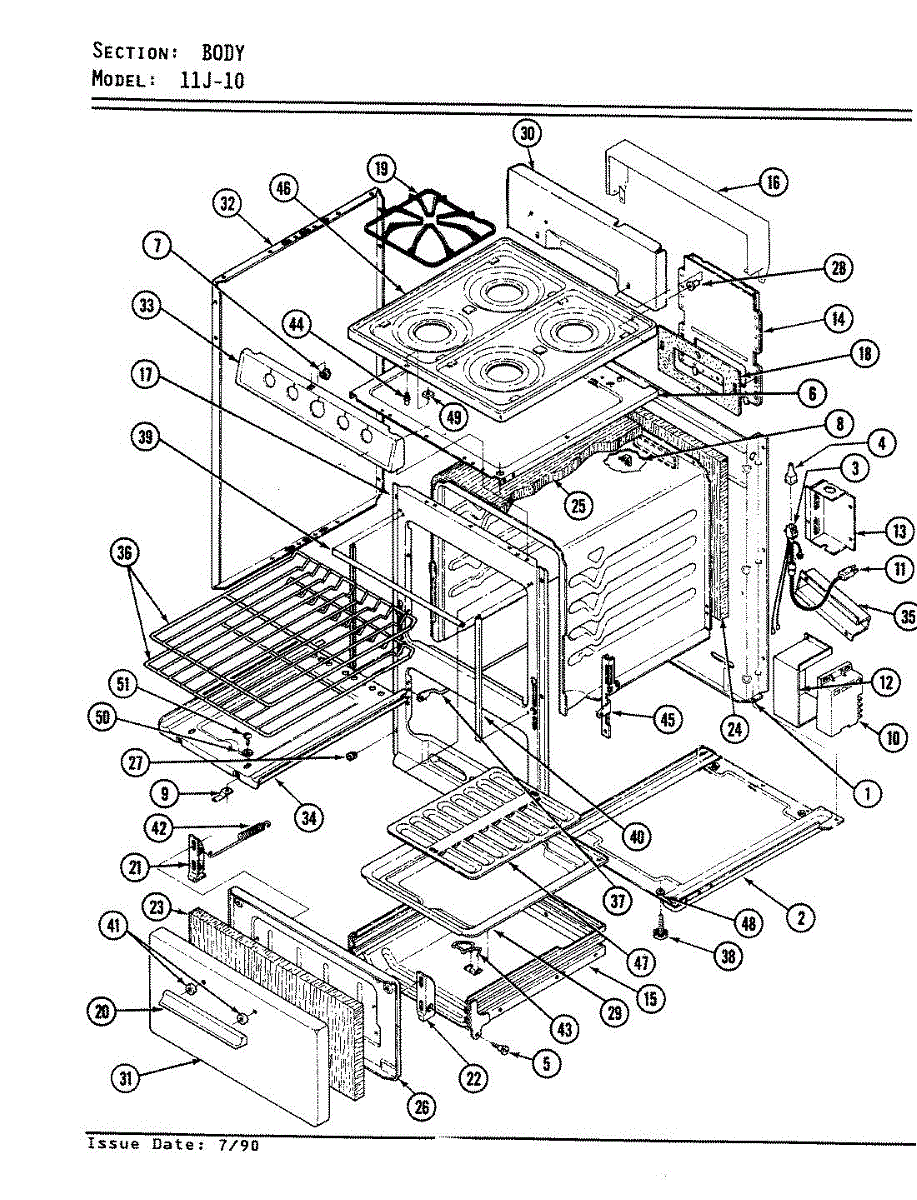

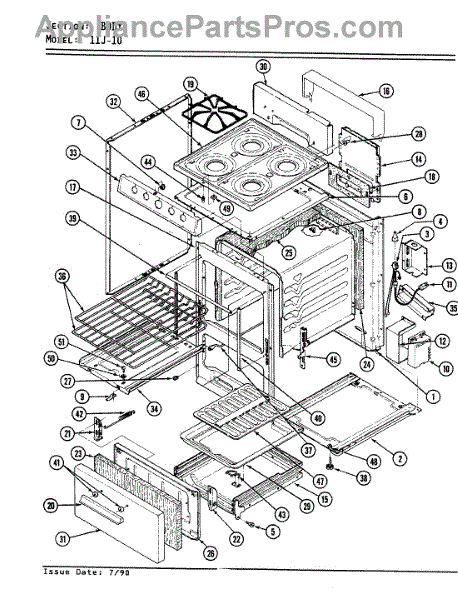

Parts for Magic Chef 11JK-10: 01 - Body Parts

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

For top surface burners. Configuration: 2 + 0.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

10-24 threaded machine screw secures panels, brackets, and internal assemblies in appliances. Replace missing, stripped, or damaged screws.

This burner grate replaces a damaged or worn cooktop support to restore stable cookware placement and even heating on your range. It provides a durable cooking surface designed for safe, reliable use. What it does:

• Supports pots and pans over the burner for safe, balanced cooking
• Restores proper burner-to-pan contact to help improve heat transfer
• Replaces cracked, warped, or chipped grates that cause instability
• Compatible with standard sealed gas burner designs

• One replacement burner grate

• Install by lifting out the old grate and seating the new grate into the cooktop openings
• Ensure the cooktop is cool and gas supply is turned off before handling
• Clean surrounding cooktop surfaces of debris before installing to ensure a flush fit

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

A 10-24 lock nut used to secure threaded fasteners and prevent loosening from vibration. Simple, durable replacement that restores proper fastening where the original nut has worn or failed. What it does:

• Secures shafts, studs, or bolts with 10-24 threads and resists loosening under normal appliance vibration.
• Restores proper tension where a stripped or loose nut causes rattling or parts shifting.
• Helps maintain alignment of panels, brackets, or components that rely on a locked fastener.
• Small hardware solution for common fastening failures—no special part modifications required.

• Disconnect appliance power and water before beginning repairs.
• Use the correct 10-24 threaded fastener and a properly sized wrench or socket to avoid rounding the nut.
• Tighten to a snug fit—do not overtighten or force onto damaged threads.
• Inspect mating threads and replace the bolt/stud if threads are stripped or damaged.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

10-24 threaded machine screw secures panels, brackets, and internal assemblies in appliances. Replace missing, stripped, or damaged screws.

Side door gasket seals the oven door edge to prevent heat loss and drafts. Replace when cracked, brittle, or torn to restore a tight seal. Confirm fit.

Machine screw fastens panels, brackets, and components inside appliances. Replace stripped, missing, or loose screws to restore secure assembly.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.
