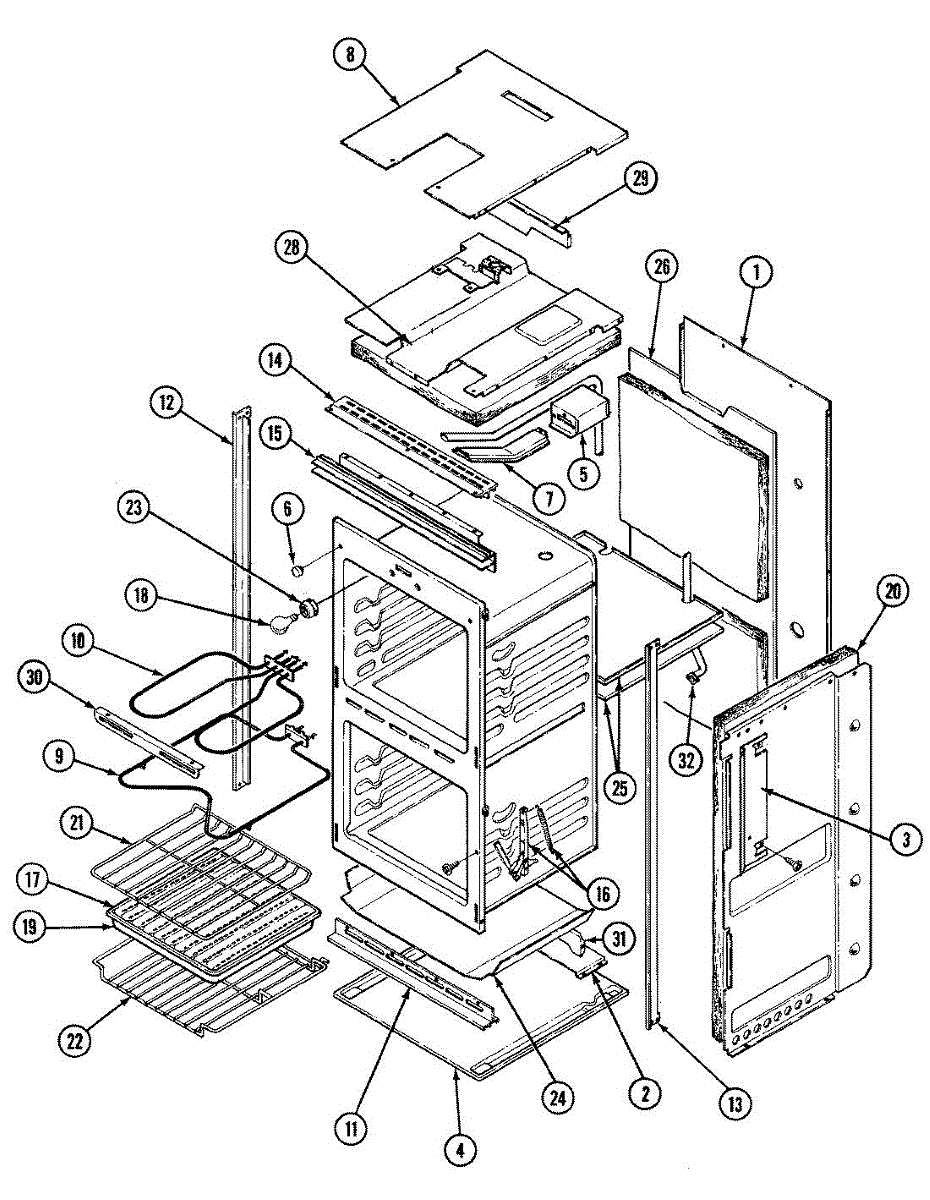

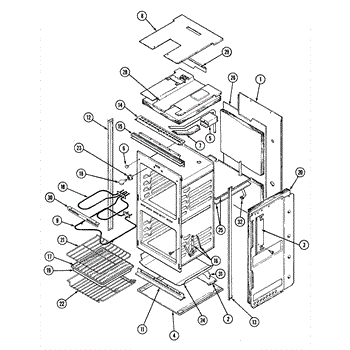

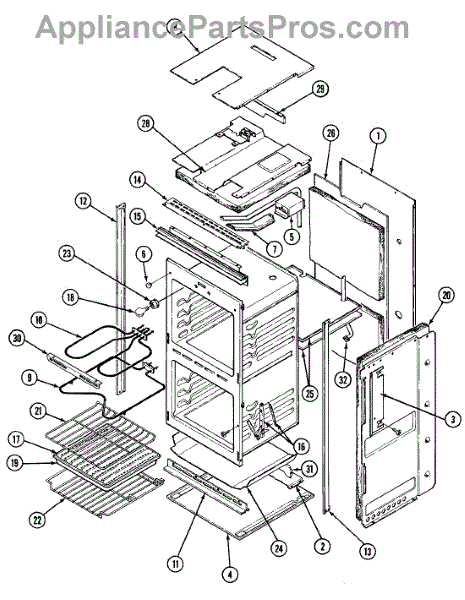

Parts for Magic Chef 9624XPB: 01 - Body Parts

The Range Element Kit is an OEM part for Whirlpool ranges. This kit typically includes elements used for heating the oven or stovetop, ensuring efficient and even cooking or baking. The element measures 16" wide and 16" from the mounting plate to the other side. The terminal depth is 3", and the total element length is 19". It is rated at 2100 watts and 240 Volts.

Over time, heating elements can become worn out or damaged due to repeated use, exposure to high temperatures, or electrical issues. A malfunctioning element can lead to uneven cooking, longer cooking times, or the range not heating up at all.

Symptoms of a bad Range Element include:

• The element not heating up
• Uneven cooking or baking results
• Visible damage such as burns or breaks in the element
• Sparks or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Element is an OEM part for Whirlpool ranges. This part provides the intense, direct heat necessary for broiling. This part is located at the top of the oven cavity and is essential for achieving high temperatures needed for tasks like browning and searing.

Causes of a bad broil element can include electrical issues such as short circuits, damage from spills or food debris, and general wear and tear from repeated use.

Symptoms of a bad Broil Element include:

• The oven not reaching broil temperatures
• Inconsistent or uneven broiling
• The element not glowing red when in use
• Visible signs of damage or burning on the element

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This upper oven door hinge is a position-specific hinge that supports and controls a side-swing door's movement, helping it open smoothly and seal firmly. Replacing a worn hinge restores proper alignment, closure, and heat retention.

• Provides the pivot and spring action at the door's upper mounting point
• Maintains door alignment for proper gasket contact and heat seal
• Typical symptoms of a failing hinge: door won't close fully, sags, binds/rubs, or pops open
• A poor seal from a worn hinge can lead to heat loss and uneven baking

• Disconnect power and allow the oven to cool completely before service
• Support the door; many models require removing the door to access the hinge
• Install at the factory mounting points and ensure the hinge fully engages the receiver
• After replacement, check door alignment and that the seal contacts evenly

The Door Hinge is an OEM part for Whirlpool ovens. This hinge attaches the oven door to the frame, allowing it to open and close smoothly while maintaining a secure seal when shut.

Causes of a bad door hinge can include normal wear and tear over time, damage from applying too much force when opening or closing the door, or corrosion due to exposure to high temperatures and moisture.

Symptoms of a bad door hinge include:

• The oven door not closing properly or staying ajar
• Difficulty in opening or closing the oven door
• A misaligned oven door
• Unusual noises or stiffness when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Color: chrome. Measures about 18 inches wide by 17 inches deep.
