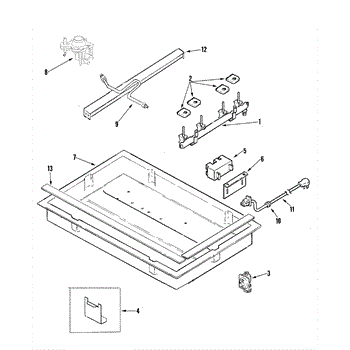

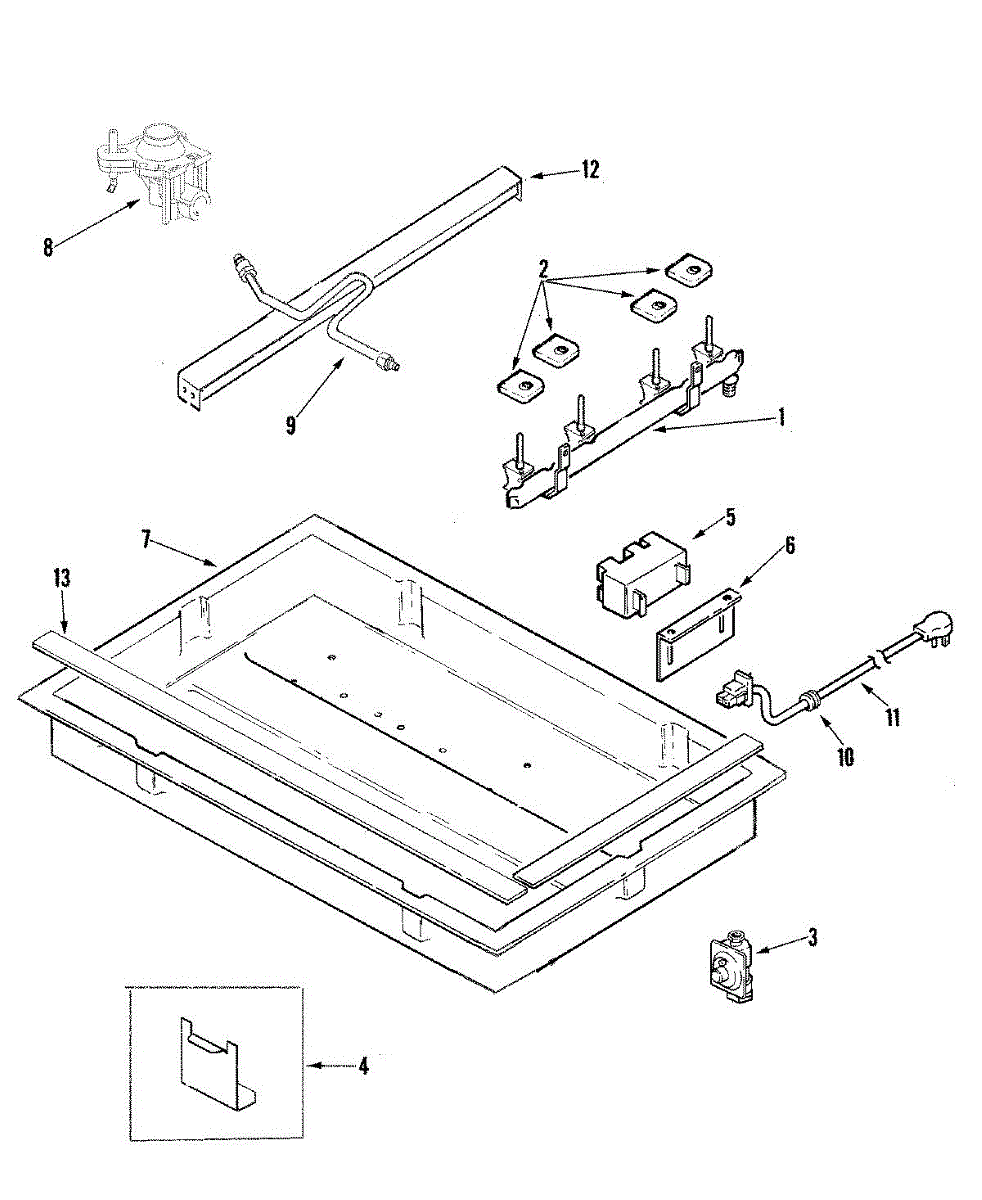

Parts for Magic Chef CGC2430ADC: 01 - Body Parts

Replacement switch/lead wire assembly restores a safe, insulated connection between a control switch and the appliance wiring, helping resolve intermittent controls, no-response switches, and visible wiring damage for consistent operation. What it does:

• Provides an insulated, factory-style connection between a control switch and the main wiring harness to carry control signals safely.
• Replaces frayed, burned, or corroded wires and terminals that can cause intermittent operation or arcing.
• Corrects symptoms such as unresponsive switches, intermittent power to components, or a burning/shorting odor when the wiring is damaged.
• Matches original connector types and terminal orientations for plug-and-play replacement when used in compatible machines.

• Disconnect power (unplug appliance or shut off circuit breaker) before inspecting or replacing any wiring.
• Compare the new assembly to the removed part for identical connector types, terminal orientation, and wire routing before installation.
• Use proper tools to release and seat terminals; avoid pulling on wire insulation.
• If terminals or surrounding components show burn damage, diagnose the underlying fault before installing the replacement wiring.

This is a #10 x 2 inch appliance screw used to fasten panels and components in household appliances. It provides a simple, reliable hold to keep parts aligned and reduce vibration. What it does:

• Secures trim, panels, brackets, and internal components
• Helps prevent rattling or movement from loose or missing fasteners
• Restores proper alignment where a worn or missing screw causes gaps
• Works wherever a #10 x 2" fastener is specified by the manufacturer

• Disconnect power and water to the appliance before servicing
• Use the correct driver to avoid stripping the head; do not overtighten
• Keep track of removed fasteners and replace with identical-size screws
• Inspect mating threads and replace any damaged hardware

This tie-down bracket secures the appliance during installation so it stays firmly in place. It helps prevent shifting, vibration, or lifting for a solid, stable fit and reliable operation over time.

• Anchors the unit to its opening as designed, helping keep it stable
• Helps reduce movement, vibration, and rattling during use
• Replaces a bent, damaged, or missing bracket to restore a secure install
• Common signs: appliance shifts or rocks, visible gaps/misalignment, loose fit

• Disconnect power; shut off gas before servicing
• Install in the location/orientation specified by your product's installation instructions
• Reuse the model-specific mounting hardware or replace per your manual
• Tighten hardware securely but do not overtighten to avoid damage

The Spark Module Kit is an OEM part for Whirlpool ranges. It is responsible for generating the spark needed to ignite the gas burners on the cooktop. The spark module sends electrical signals to the igniters, creating the spark that lights the gas for cooking.

Over time, the spark module can fail due to electrical issues, exposure to moisture, or normal wear and tear. When the spark module becomes faulty, it can lead to various problems with igniting the burners.

Symptoms of a bad spark module include:

• Burners not lighting or taking a long time to light
• No clicking sound when turning the burner knob
• Burners only lighting intermittently
• Visible sparks or arcing from the module

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: This part is only compatible with serial numbers starting with 21 and up on model 8351VV.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This orifice holder secures the burner orifice to the gas burner assembly, ensuring stable gas flow for reliable ignition and consistent flame performance. Use it to restore proper burner operation on compatible gas ranges and cooktops. What it does:

• Holds the burner orifice in the correct position so gas is metered properly to the burner
• Helps restore consistent flame height and shape when a worn or damaged holder causes poor combustion
• Common symptom linkage: burner won't light, weak or uneven flame, or inconsistent heating
• Works with the matching orifice size (12K) to maintain designed burner output

• TURN OFF gas supply and electrical power before beginning any service
• Remove burner parts and replace holder, then reinstall orifice and burner cap in correct order
• After reassembly, check for gas leaks at connections with a soapy-water test; do not use an open flame

This surface burner orifice holder channels gas from the valve to the burner and positions the orifice correctly for the 9.2K burner. Replacing a damaged holder restores proper gas flow, ignition, and consistent flame performance.

• Routes gas from the surface valve to the burner and houses the orifice
• Provides correct orifice alignment/seal for the designated 9.2K burner
• Helps ensure stable flame height and reliable ignition
• Typical failure symptoms: weak or uneven flame, delayed ignition, or gas odor near that burner

• Disconnect power and shut off gas; allow appliance to cool before servicing
• Remove burner cap and head to access, then support fittings with two wrenches when loosening/tightening to avoid stressing the manifold
• Transfer any reusable parts from the original assembly only as directed by your model's service information
• After installation, restore gas and check all connections for leaks with an approved leak-detection solution; verify flame and ignition

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly

Size: 10-24X5/16-NI

This is a #10 x 2 inch appliance screw used to fasten panels and components in household appliances. It provides a simple, reliable hold to keep parts aligned and reduce vibration. What it does:

• Secures trim, panels, brackets, and internal components
• Helps prevent rattling or movement from loose or missing fasteners
• Restores proper alignment where a worn or missing screw causes gaps
• Works wherever a #10 x 2" fastener is specified by the manufacturer

• Disconnect power and water to the appliance before servicing
• Use the correct driver to avoid stripping the head; do not overtighten
• Keep track of removed fasteners and replace with identical-size screws
• Inspect mating threads and replace any damaged hardware

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
